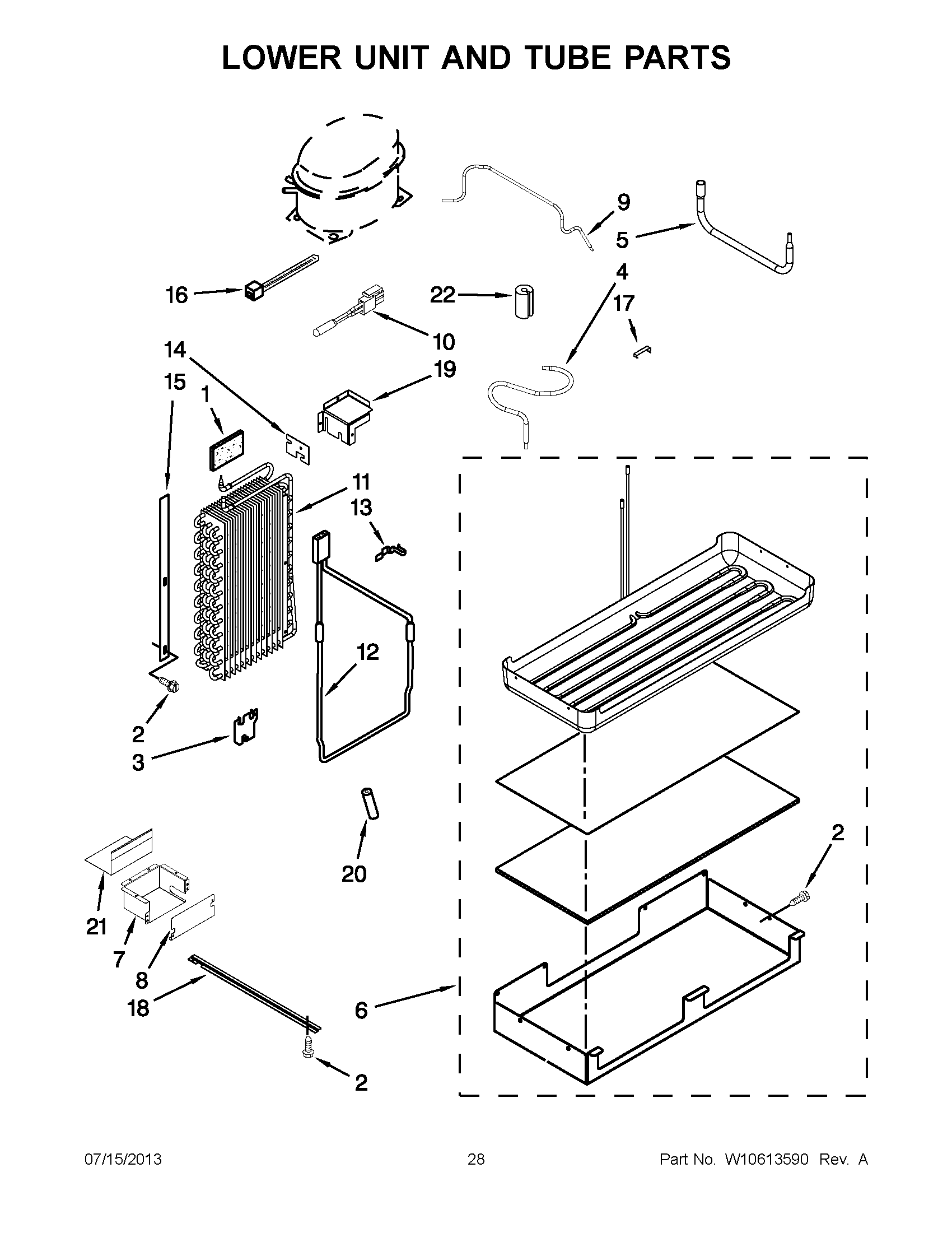

KSSC36QTS07 14 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11624204 Whirlpool Screw
3	W10157752 Whirlpool Bracket
4	W10306442 Whirlpool Refrigerator Tube
5	W10388653 Whirlpool Refrigerator Tube
6	WPW10281063 Whirlpool Refrigerator Heater Pan
7	WPW10309012 Whirlpool Wire Cover
8	WIRE BOX COVER
9	W10412487 Whirlpool Refrigerator Tube
10	WP2188820 Whirlpool Refrigerator Thermistor
11	WPW10427991 Whirlpool Refrigerator Evaporator
12	W10140160 Whirlpool Refrigerator Heater
13	1113048 Whirlpool Refrigerator Clamp
14	W10139908 Whirlpool Seal
15	W10432308 Whirlpool Gasket
16	WPW10339879 Whirlpool Wire Tie
17	W10169509 Whirlpool Refrigerator Clip
18	2320554 Whirlpool Bracket
19	Bracket Assembly, Return Air
20	2215648 Whirlpool Refrigerator Dampener
21	W10321050 Whirlpool Refrigerator Shield
22	W11715935 Whirlpool Dampener
