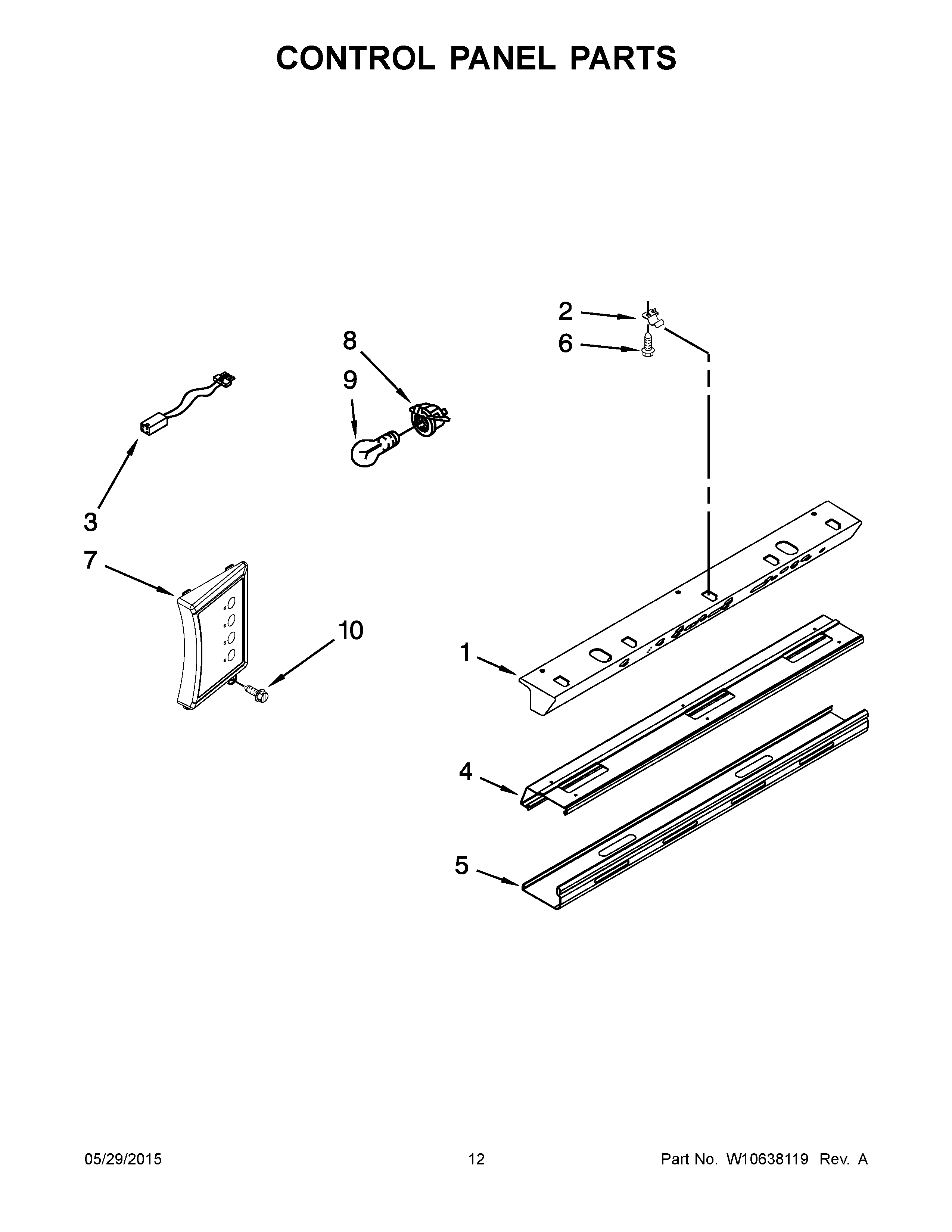

KSSC36QTS08 07 – CONTROL PANEL PARTS

Products

Position	Product
1	W10468939 Whirlpool Refrigerator Control Box
2	Clip, Control Box
3	2310390 Whirlpool Refrigerator Wire Assembly
4	Bracket, Control Box
5	Shield, Light
6	WP488729 Whirlpool Refrigerator Door Screw
7	WP2306086 Whirlpool Refrigerator Electronic Control Board
8	WPW10191429 Whirlpool Refrigerator Socket
9	WPA3073101 Whirlpool Light Bulb
10	WPW10142283 Whirlpool Refrigerator Screw
