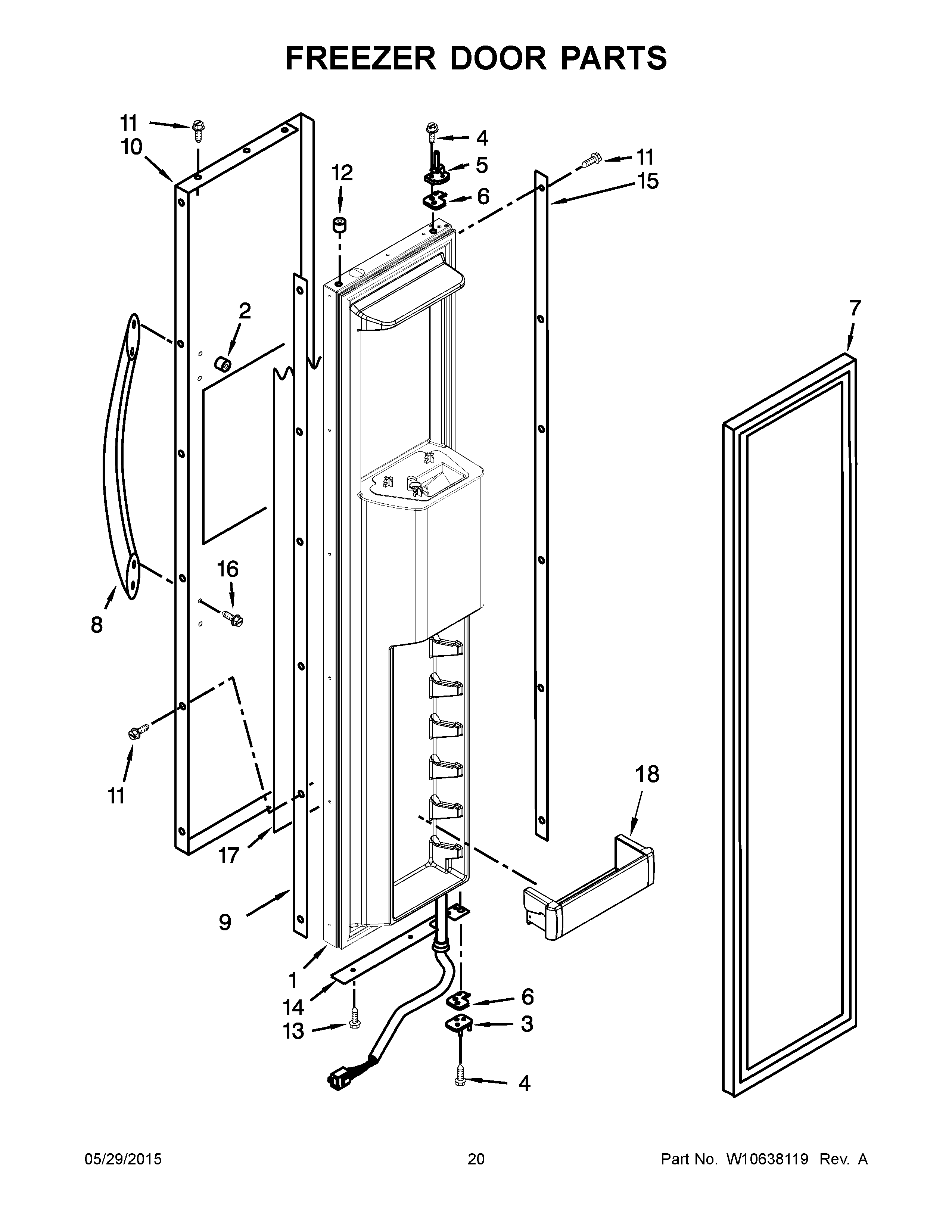

KSSC36QTS08 11 – FREEZER DOOR PARTS

KSSC36QTS08 11 – FREEZER DOOR PARTS

Written by

in

KSSC36QTS08 11 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR
1BWPW10151236-includeCORE Whirlpool WPW10151236 Washer Electronic Control Board + Core
22252354 Whirlpool Spacer Assembly
3HINGE-DOOR
4W11474472 Whirlpool Screw
6W11673500 Whirlpool Door Hinge
7W11624976 Whirlpool Refrigerator FIP Gasket
8WP2316868 Whirlpool Refrigerator Handle
9Spacer, Door-Skin (Handle Side)
10SKIN, DOOR (STAINLESS)
11WP8281250 Whirlpool Refrigerator Screw
122005433 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
14SPACER, DOOR SKIN BOTTOM
15SPACER, DOOR-SKIN (HINGE SIDE)
16WP308544 Whirlpool Screw
17AFiller, Door (Bottom)
17Filler, Door (Top)
18W10323601 Whirlpool Refrigerator Cantilever Bin
