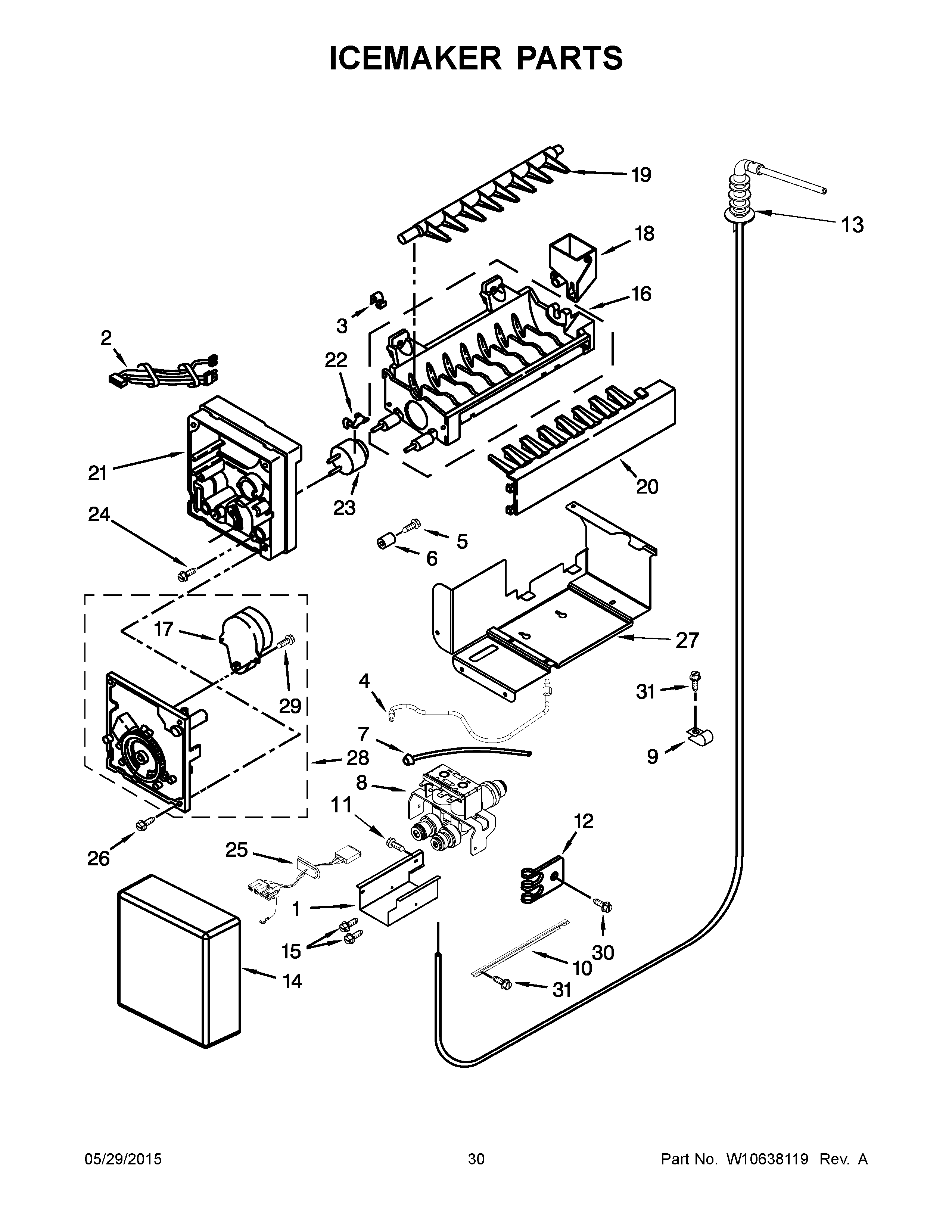

KSSC36QTS08 16 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORIES, SS CLEANER
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10129081 Whirlpool Refrigerator Handle
NI	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
NI	ACCESSORIES, KITCHEN & APPLIANCE CLEANER
NI	DEODORIZER PACK
1	Shield, Valve
2	W10508670 Whirlpool Refrigerator Wire Harness
3	WP628379 Whirlpool Refrigerator Clip
4	W11565275 Whirlpool Refrigerator Water Tube
5	WP489474 Whirlpool Refrigerator Screw
6	2252354 Whirlpool Spacer Assembly
7	W11533506 Whirlpool Refrigerator Water Tube
8	WPW10159843 Whirlpool Refrigerator Inlet Valve
9	W10833902 Whirlpool Refrigerator Clamp
10	Support, Valve
11	W11624204 Whirlpool Screw
12	WP488366 Whirlpool Refrigerator Clamp
13	W11212166 Whirlpool Refrigerator Inlet Tube
14	WPW10289690 Whirlpool Ice Maker Cover
15	WPW10141604 Whirlpool Screw
16	WPW10122550 Whirlpool Refrigerator Ice Mold
18	W10377998 Whirlpool Refrigerator Cup Fill
19	626753 Whirlpool Refrigerator Ejector Arm
20	WPW10272164 Whirlpool Strip Arm
21	WP2195914 Whirlpool Refrigerator Ice Maker Housing
22	WP2315522 Whirlpool Refrigerator Clip
23	WP627985 Whirlpool Icemaker Cycling Thermostat
24	8533917 Whirlpool Refrigerator Screw
25	W10139199 Whirlpool Refrigerator Wire Harness
26	WP681249 Whirlpool Screw Assembly
27	2300167 Whirlpool Bracket
28	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
29	489136 Whirlpool Refrigerator Screw
30	SCREW
100	W11744834 Whirlpool Ice Maker
