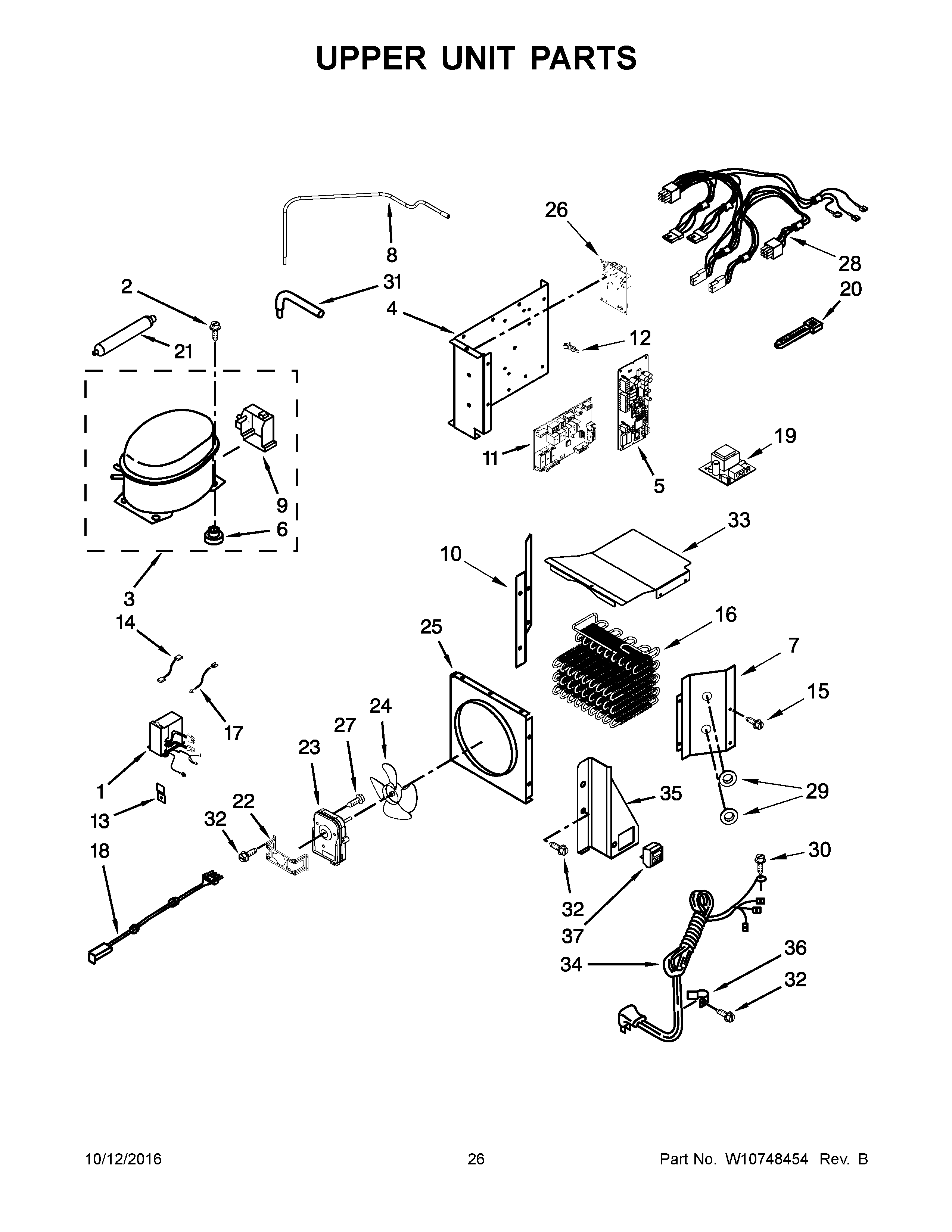

KSSC36QTS10 14 – UPPER UNIT PARTS

KSSC36QTS10 14 – UPPER UNIT PARTS

Written by

in

KSSC36QTS10 14 – UPPER UNIT PARTS

Products

PositionProduct
NI978026 Whirlpool Refrigerator Primary Valve
NI978030 Whirlpool Refrigerator Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIWP978025 Whirlpool Refrigerator Valve
NIVALVE, ACCESS (1/2“)
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (5/8“)
NI978027 Whirlpool Refrigerator Primary Valve
1W11573593 Whirlpool Refrigerator Inverter Box
3W10720770 Whirlpool Refrigerator Compressor
4WPW10321056 Whirlpool Refrigerator Housing
5WP2318054 Whirlpool Refrigerator Electronic Control Board + Core
6876811 Whirlpool Grommet
7WPW10525179 Whirlpool Plate
8W10648264 Whirlpool Refrigerator Tube
92215676 Whirlpool Refrigerator Terminal Cover
10WPW10525177 Whirlpool Plate
11WPW10427079-includeCORE Whirlpool WPW10427079 Refrigerator Electronic Control Board + Core
12WP2203075 Whirlpool Refrigerator Spacer
132256328 Whirlpool Bracket Assembly
14WPW10483905 Whirlpool Jumper Wire
15WP489069 Whirlpool Compactor Screw
16W10591457 Whirlpool Refrigerator Condenser
17WPW10495645 Whirlpool Wire Jumper
182310207 Whirlpool Wire Harness
19WP2259350 Whirlpool Refrigerator Electronic Control Board
20WPW10339879 Whirlpool Wire Tie
21WPW10143759 Whirlpool Dryer Filter
22W10414681 Whirlpool Bracket
23W11127829 Whirlpool Refrigerator Condenser Motor
24WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25W10415670 Whirlpool Orifice
26WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core
27WP8533993 Whirlpool Refrigerator Screw
28W10427091 Whirlpool Wire Harness
29GROMMET
30WP489128 Whirlpool Refrigerator Screw
31W10528578 Whirlpool Refrigerator Tube
32W11624204 Whirlpool Screw
33W10525175 Whirlpool Refrigerator Cover
34WP2310251 Whirlpool Refrigerator Power Cord
35W10321055 Whirlpool Refrigerator Bracket
36549193 Whirlpool Refrigerator Power Clamp
37WP2266802 Whirlpool Refrigerator Switch
