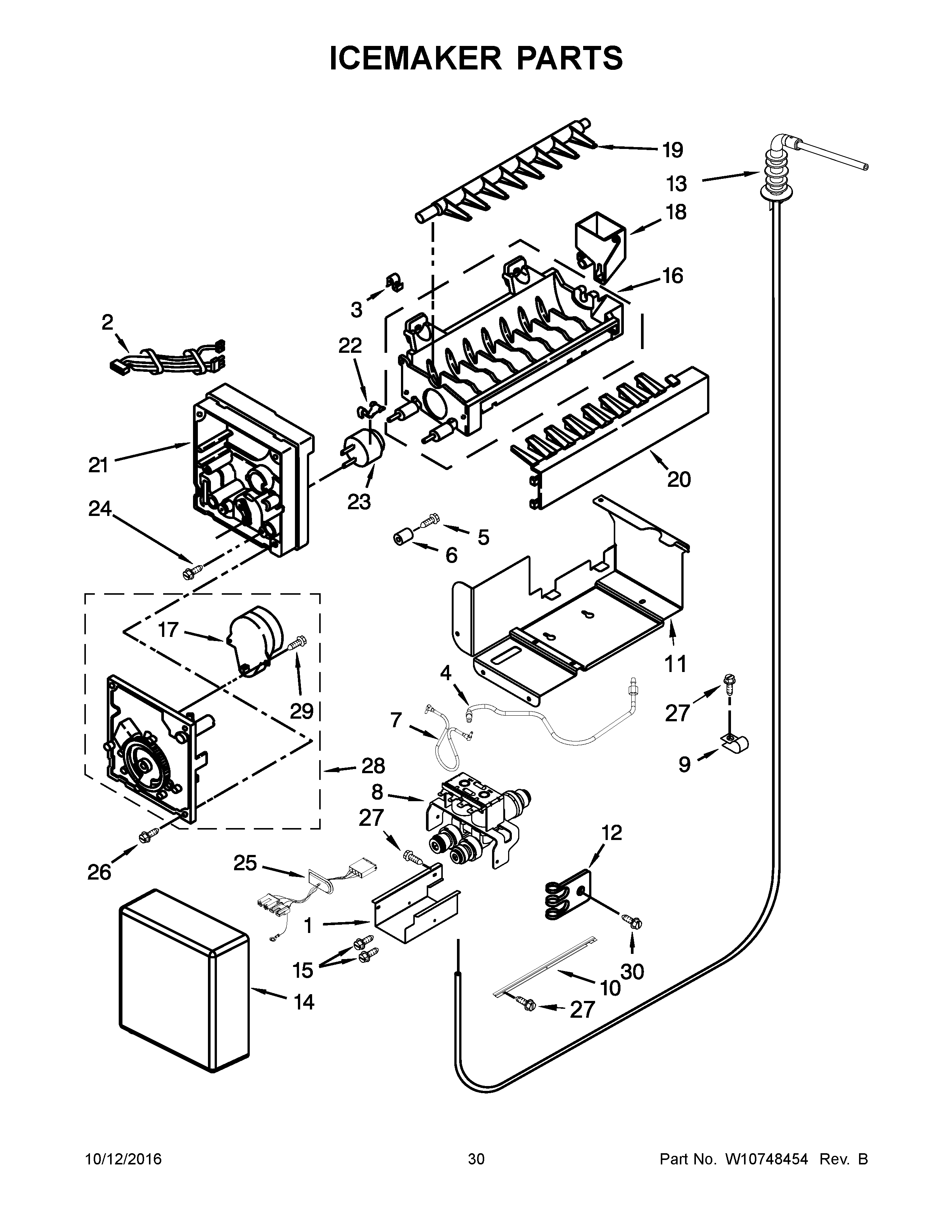

KSSC36QTS10 16 – ICEMAKER PARTSadmin2025-04-26T12:06:49+00:00KSSC36QTS10 16 – ICEMAKER PARTS ProductsPositionProduct1Shield, Valve2W10508670 Whirlpool Refrigerator Wire Harness3WP628379 Whirlpool Refrigerator Clip4W11565275 Whirlpool Refrigerator Water Tube5WP489474 Whirlpool Refrigerator Screw62252354 Whirlpool Spacer Assembly7W11533506 Whirlpool Refrigerator Water Tube8WPW10159843 Whirlpool Refrigerator Inlet Valve9W10833902 Whirlpool Refrigerator Clamp10Support, Valve112300167 Whirlpool Bracket12WP488366 Whirlpool Refrigerator Clamp13W11212166 Whirlpool Refrigerator Inlet Tube14WPW10289690 Whirlpool Ice Maker Cover15WPW10141604 Whirlpool Screw16WPW10122550 Whirlpool Refrigerator Ice Mold17CABINET (NOT A SERVICEABLE PART)18W10377998 Whirlpool Refrigerator Cup Fill19626753 Whirlpool Refrigerator Ejector Arm20WPW10272164 Whirlpool Strip Arm21WP2195914 Whirlpool Refrigerator Ice Maker Housing22WP2315522 Whirlpool Refrigerator Clip23WP627985 Whirlpool Icemaker Cycling Thermostat24W10001280 Whirlpool Refrigerator Screw25W10139199 Whirlpool Refrigerator Wire Harness26WP681249 Whirlpool Screw Assembly27W11624204 Whirlpool Screw288201515 Whirlpool Refrigerator Motor and Gear Module Kit29489136 Whirlpool Refrigerator Screw30SCREW100W11744834 Whirlpool Ice Maker
