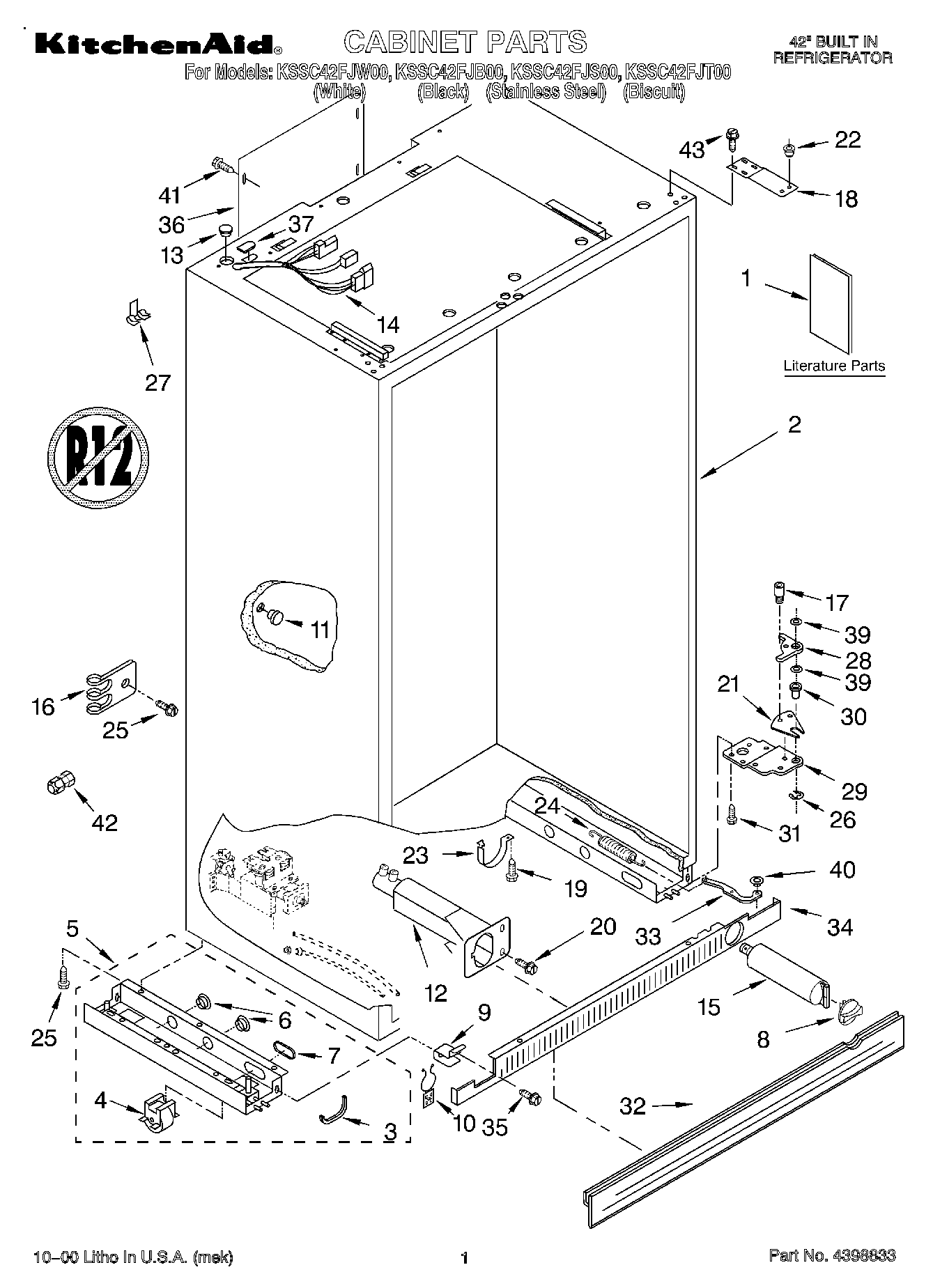

KSSC42FJS00 01 – CABINET, LITERATURE

KSSC42FJS00 01 – CABINET, LITERATURE

Written by

in

KSSC42FJS00 01 – CABINET, LITERATURE

Products

PositionProduct
1LITERATURE PARTS (Service & Wiring Sheet)
1LITERATURE PARTS (Use & Care Guide)
1Modular Icemaker Service Sheet
1LITERATURE PARTS (Installation Instructions)
1Energy Label
2Cabinet (Not A Serviceable Part)
3Grommet, Crossover Tube
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5W10860229 Whirlpool Refrigerator Support
5W10860448 Whirlpool Refrigerator Support
6Grommet, Wiring
7Grommet, Flexible
8WP2186494T Whirlpool Water Filter Cap
8WP2186494B Whirlpool Refrigerator Filter Cap
8WP2186494W Whirlpool Water Filter Cap
9Mounting Bracket, Grill
10Clip, Wire
11Cap, Grommet
12WP2209022 Whirlpool Refrigerator Housing
13Grommet, Wiring
14Wiring Harness, Cabinet
15EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
16Clip, Tube (3)
17WP2005378 Whirlpool Refrigerator Screw
182257644 Whirlpool Refrigerator Door Hinge
19WP489478 Whirlpool Refrigerator Screw
20WP489464 Whirlpool Refrigerator Screw
21WP2004994 Whirlpool Refrigerator Hinge Bushing
22Bushing
23Clamp, Filter Housing
24Spring, Door Closure
24Spring, Door Closure (Refrigerator Side)
25W11624204 Whirlpool Screw
26WP489236 Whirlpool Refrigerator Ring
27Fastener (3)
28Gap, Cover Assembly (Bottom)
29WP2006780 Whirlpool Refrigerator Door Hinge
29W10527053 Whirlpool Refrigerator Door Hinge
30WP2302876 Whirlpool Refrigerator Hinge Bushing
32Skirt-Grille, Bottom (White)
32Skirt-Grille, Bottom (Biscuit)
32SKIRT, GRILLE (BOTTOM)
33Linkage, Door Closure
34WPL 2209428W
34Grille, Bottom Front
34WPL 2209428T
35Screw
36Cover, Rear
37WPL 2209203
39WP2006346 Whirlpool Refrigerator Washer
40WPL 2004565
41WP1163283 Whirlpool Air Conditioner Screw
42WP4318044 Whirlpool Refrigerator Connector
43WP8204624 Whirlpool Bolt
