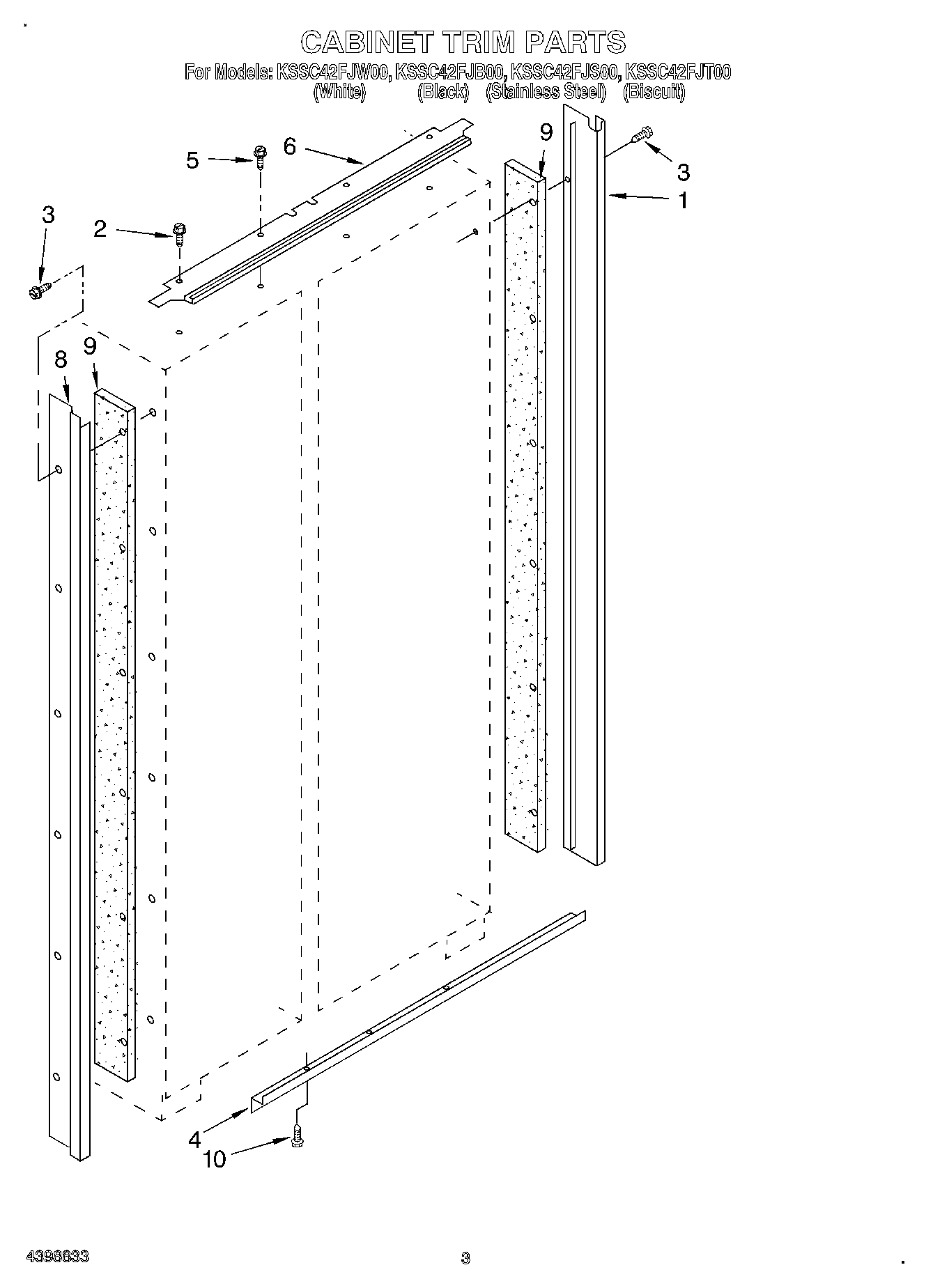

KSSC42FJS00 02 – CABINET TRIM

KSSC42FJS00 02 – CABINET TRIM

Written by

in

KSSC42FJS00 02 – CABINET TRIM

Products

PositionProduct
1Cabinet, Trim Right Side (White)
1Trim, Cabinet Right Side (Stainless Steel)
1Cabinet, Trim Right Side (Black)
1Cabinet, Trim Right Side (Biscuit)
2Screw
3WP1163283 Whirlpool Air Conditioner Screw
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
8Cabinet, Trim Left Side (Black)
8Cabinet, Trim Left Side (Biscuit)
8Cabinet, Trim Left Side (White)
8Trim, Cabinet Left Side (Stainless Steel)
9Seal, Side Trim
10WP489464 Whirlpool Refrigerator Screw
