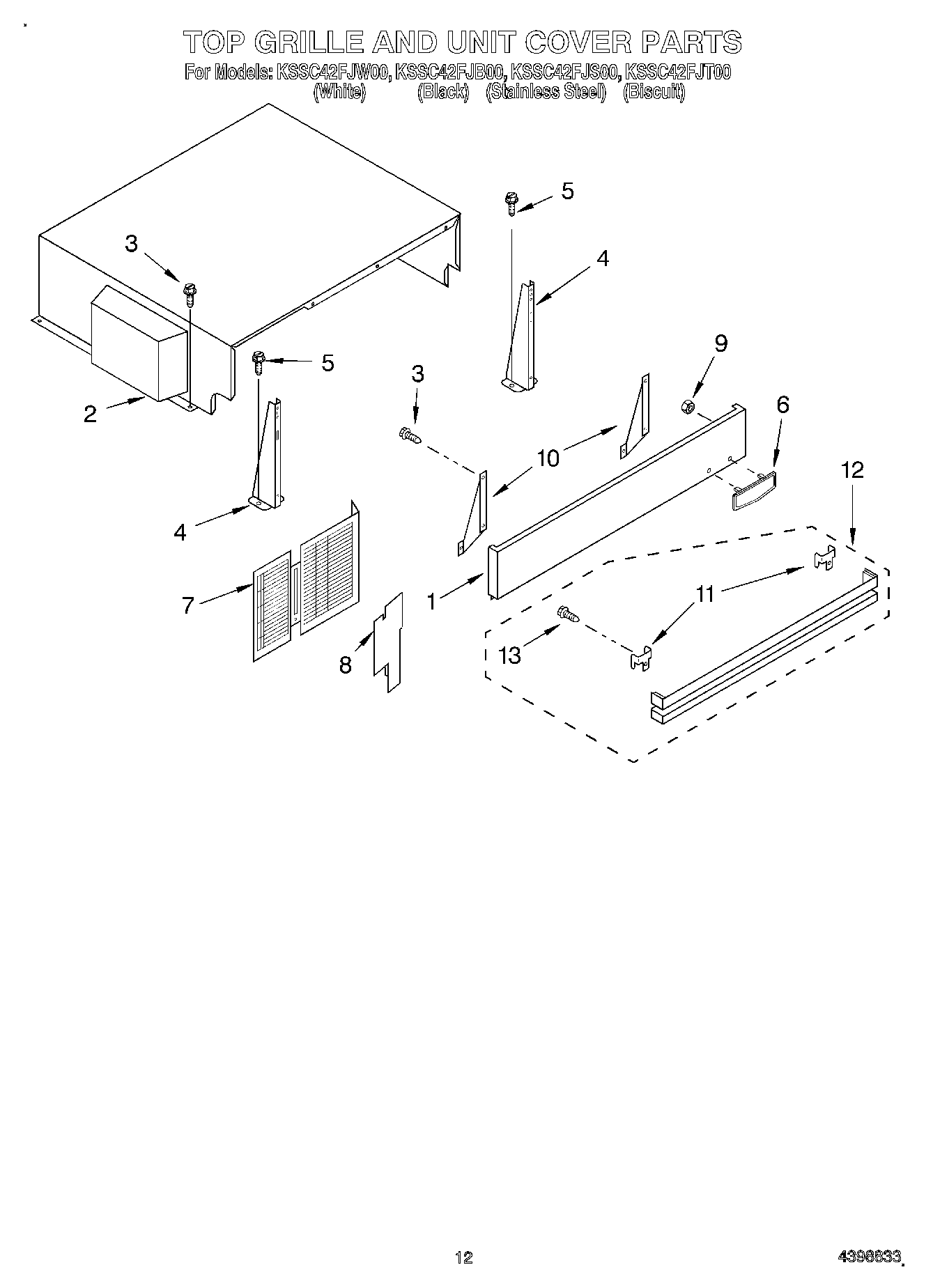

KSSC42FJT00 09 – TOP GRILLE AND UNIT COVER

KSSC42FJT00 09 – TOP GRILLE AND UNIT COVER

Written by

in

KSSC42FJT00 09 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Stainless Steel)
1Top Grille Assembly (White)
1Top Grille Assembly (Biscuit)
1Top Grille Assembly (Black)
2Cover, Unit
3W11624204 Whirlpool Screw
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Nameplate (Biscuit)
6Nameplate (White)
6Nameplate (Black)
7Guard, Compressor Wiring
8Baffle-Air, Condenser
9WP2004333 Whirlpool Refrigerator Nut
10Bracket, Trim Panel
11Louver, Bracket
12Vent, Louver (Biscuit)
12Vent, Louver (Black)
12Vent, Louver (Stainless Steel)
12Vent, Louver (White)
13WPW10141625 Whirlpool Refrigerator Screw Assembly
