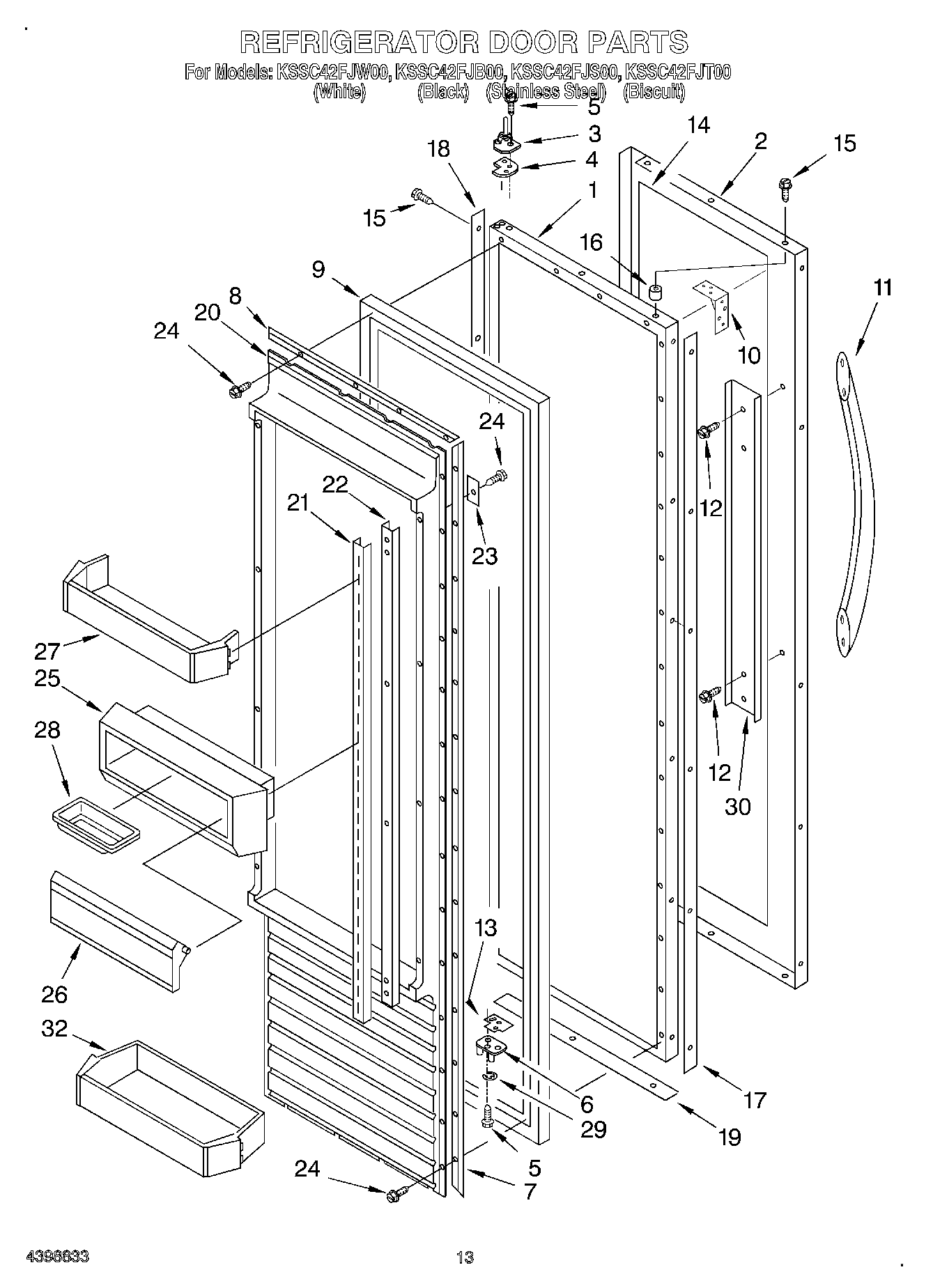

KSSC42FJW00 10 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation)
2	Door Skin (Black)
2	Door Skin (Stainless Steel)
2	Skin, Door (White)
2	Skin, Door (Biscuit)
3	Hinge, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	WP2004523 Whirlpool Refrigerator Door Hinge
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	2188320A Whirlpool Refrigerator Door Gasket
10	Door Brace, Corner
11	Handle, Door (White)
11	Handle, Door (Biscuit)
11	Handle, Door (Black)
11	Handle, Door (Stainless Steel)
12	WP308544 Whirlpool Screw
13	Door, Spacer
14	Filler, Door
15	Screw (White)
15	Screw (Biscuit)
15	WP488729 Whirlpool Refrigerator Door Screw
15	Screw
16	2005433 Whirlpool Refrigerator Spacer
17	Spacer, Handle Side
18	Spacer, Hinge Side
19	Spacer, Door Bottom
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	W11624204 Whirlpool Screw
25	Bin, Utility
26	Door, Utility Bin
27	Door Shelf (3)
28	Butter Tray
29	Retaining Ring, Door-Closure
30	Plate, Handle
32	Shelf, Gallon Door
