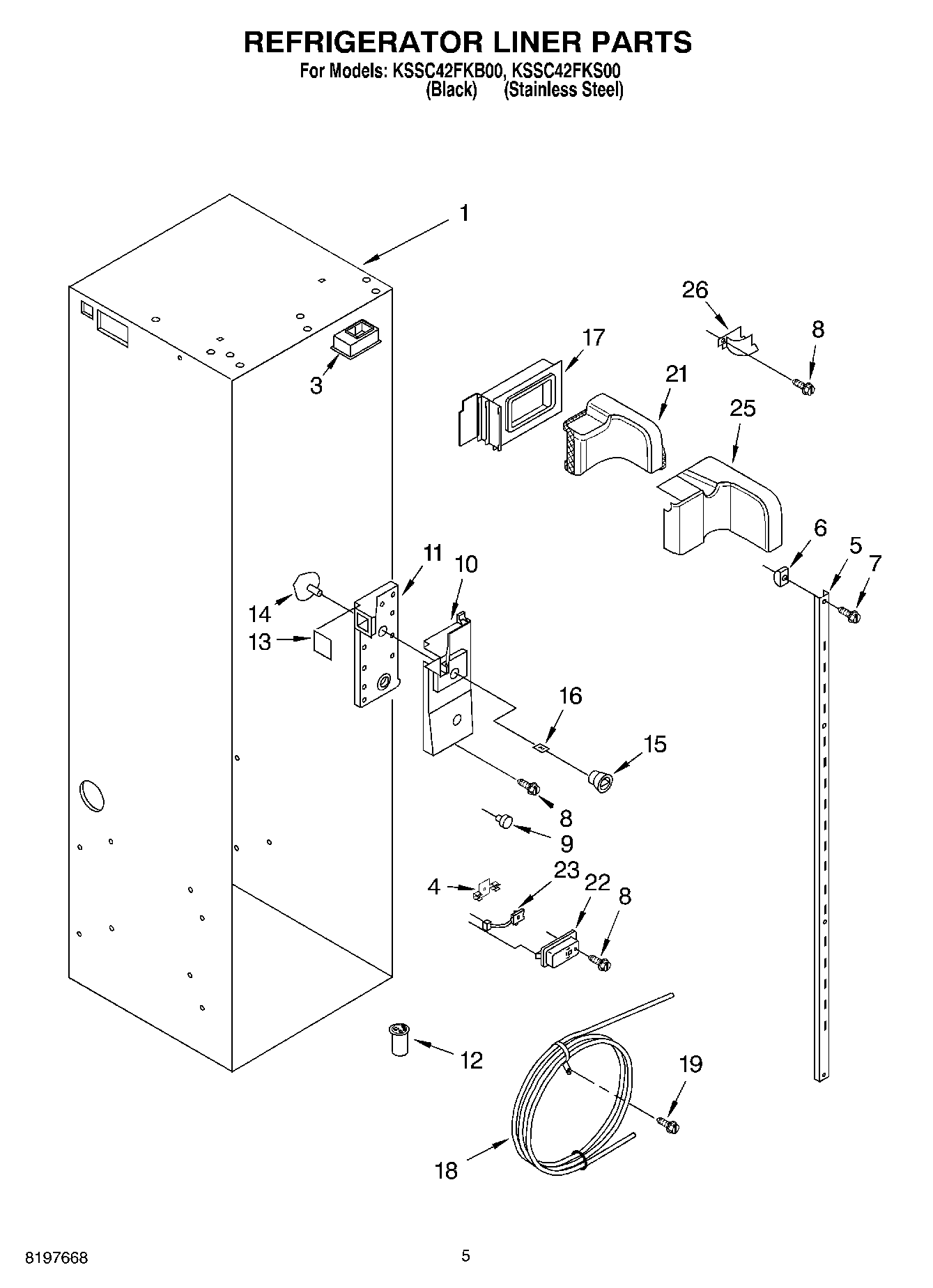

KSSC42FKB00 04 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
3	2208970 Whirlpool Refrigerator Air Duct
4	Clip, Thermistor
5	Ladder, Shelf (2)
6	520965 Whirlpool Refrigerator Support
7	Screw, 8 x 1-1/4 (3)
8	W11624204 Whirlpool Screw
9	Hole Plug
10	Meat Pan, Air Duct Cover
11	Meat Pan, Air Duct
12	Release Valve
13	Seal, Air Duct
14	Damper Control, Meat Pan
15	Control Knob, Meat Pan
16	Retainer, Knob
17	Air Baffle Assembly
18	WP2256126 Whirlpool Refrigerator Reservoir
19	Screw (2)
21	Diffuser Assembly
22	1116793 Whirlpool Refrigerator Cover
23	WP2188820 Whirlpool Refrigerator Thermistor
25	2309087 Whirlpool Refrigerator Cover
26	2003577 Whirlpool Refrigerator Guard
