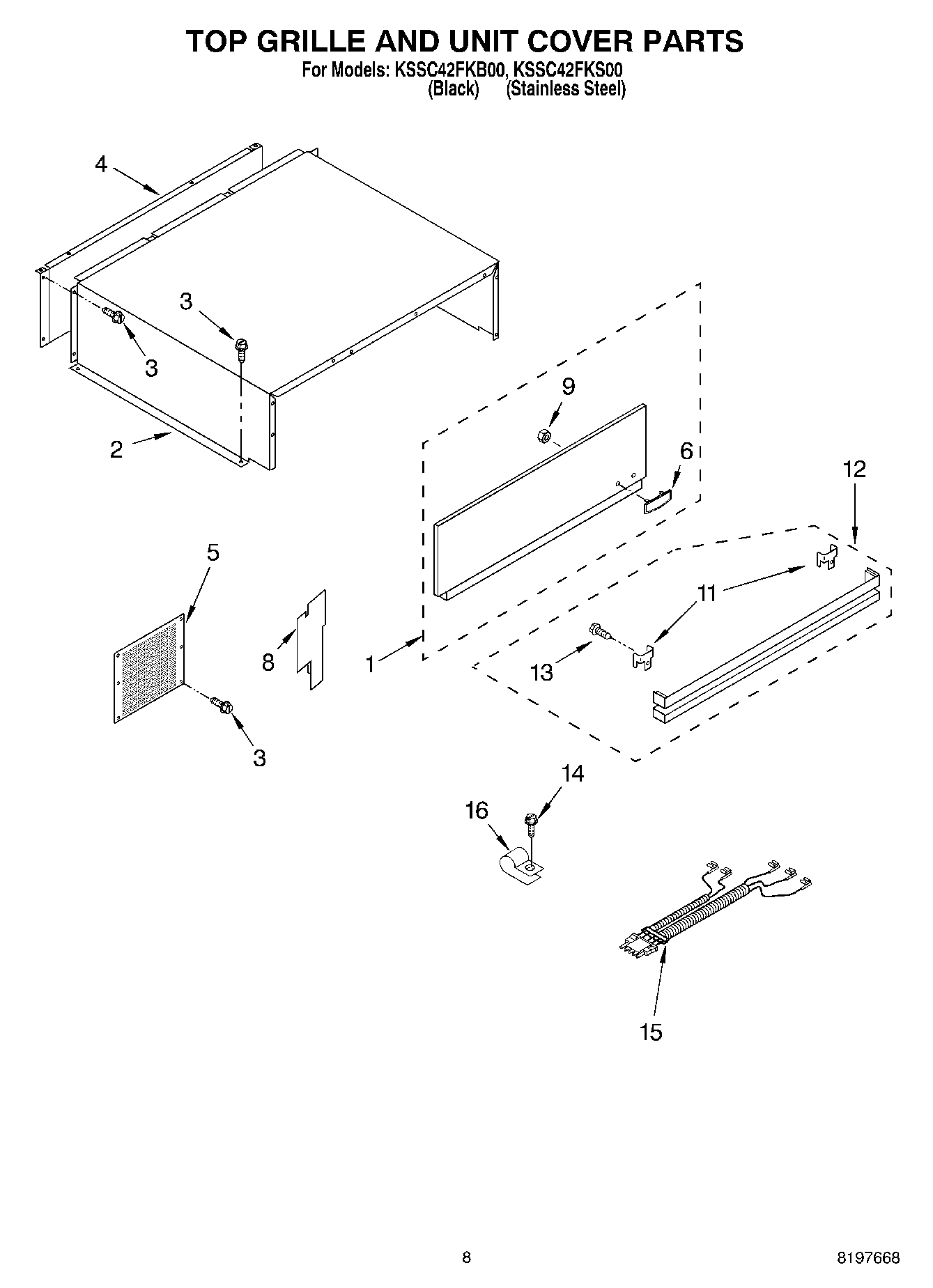

KSSC42FKB00 06 – TOP GRILLE AND UNIT COVER

KSSC42FKB00 06 – TOP GRILLE AND UNIT COVER

Written by

in

KSSC42FKB00 06 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Panel, Decorator (Stainless steel)
1Panel, Decorator (Black)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6Nameplate (Black)
8Baffle-Air, Condenser
9WP2004333 Whirlpool Refrigerator Nut
11Louver, Bracket
12Grille, Louver (Black)
12Grille, Louver (Stainless steel)
13303776 Whirlpool Dishwasher Screw
14WP489069 Whirlpool Compactor Screw
15Wire Assembly, RC/FC Light Switch
16489348 Whirlpool Refrigerator Tube Clamp
