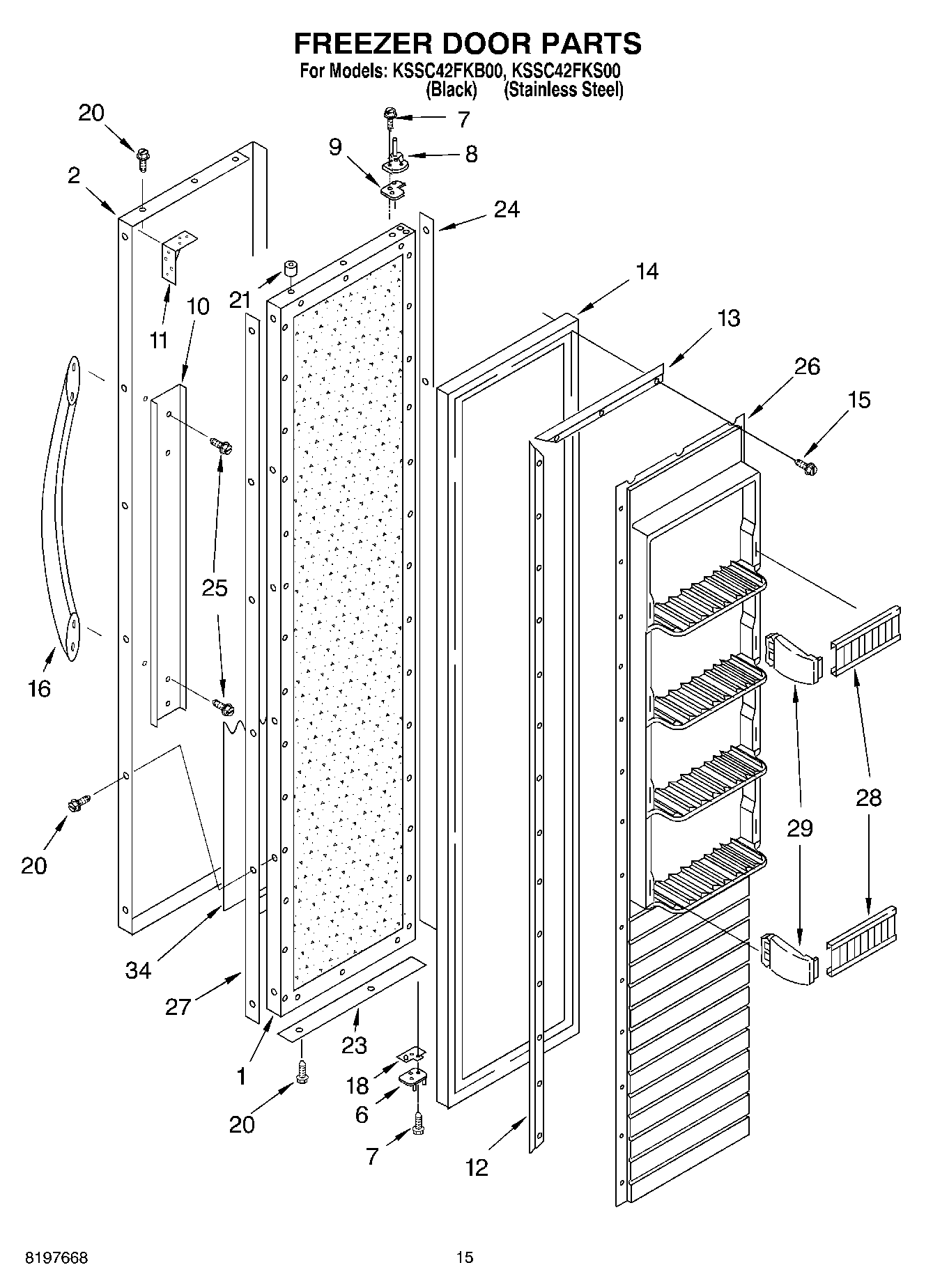

KSSC42FKB00 10 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Skin, Door (Black)
2	Skin, Door (Stainless Steel)
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
10	Plate, Handle
11	Door Brace, Corner
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188496A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door (Stainless Steel)
16	Handle, Door (Black)
18	Door, Spacer
20	W10851443 Whirlpool Refrigerator Screw
20	WP8281250 Whirlpool Refrigerator Screw
21	2005433 Whirlpool Refrigerator Spacer
23	Spacer, Door Bottom
24	Spacer, Hinge Side
25	WP308544 Whirlpool Screw
26	Panel, Interior Door
27	Spacer, Handle Side
28	Shelf Bin
29	Trim, Endcap (Left Side)
29	Trim, End Cap (Right Side)
34	Filler, Door
34	WP978025 Whirlpool Refrigerator Valve
34	876764 Whirlpool Refrigerator Primary Valve
34	978026 Whirlpool Refrigerator Primary Valve
34	978027 Whirlpool Refrigerator Primary Valve
34	VALVE, ACCESS (1/2“)
34	978030 Whirlpool Refrigerator Valve
34	VALVE, ACCESS (5/8“)
