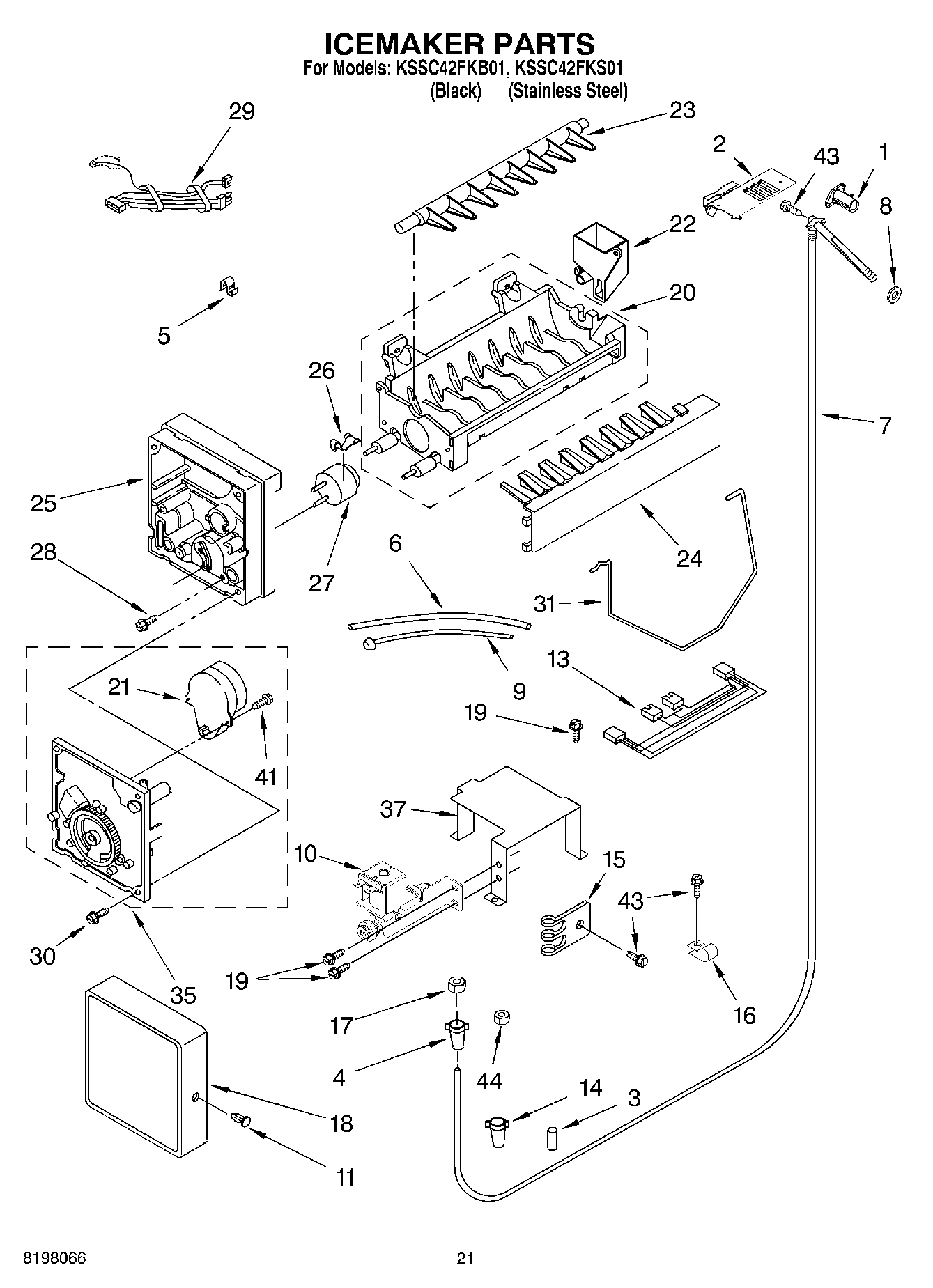

KSSC42FKB01 13 – ICEMAKER

KSSC42FKB01 13 – ICEMAKER

Written by

in

KSSC42FKB01 13 – ICEMAKER

Products

PositionProduct
1WP2221240 Whirlpool Refrigerator Heater
2WP2221231 Whirlpool Refrigerator Shield
3Plug, Water Valve
44387491 Whirlpool Refrigerator Insert
5WP628379 Whirlpool Refrigerator Clip
6Tube, Filter Inlet
7Water Inlet Tube Assembly
8WP1106508 Whirlpool Refrigerator Gasket
9Tube, Filter Outlet
10WP2313917 Whirlpool Refrigerator Inlet Valve
11WP489115 Whirlpool Refrigerator Rivet
13Water Valve, Harness
14Insert, Tube
15WP488366 Whirlpool Refrigerator Clamp
16488946 Whirlpool Air Conditioner Clamp
17Compression Nut (Inlet)
18Cover
19WP489464 Whirlpool Refrigerator Screw
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
20WP542638 Whirlpool Refrigerator Grease
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
29Wire Harness, Icemaker
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
37Water Valve Mounting Bracket
41489136 Whirlpool Refrigerator Screw
43W11624204 Whirlpool Screw
44Nut, Compression
1004317943 Whirlpool Refrigerator Ice Maker Assembly
