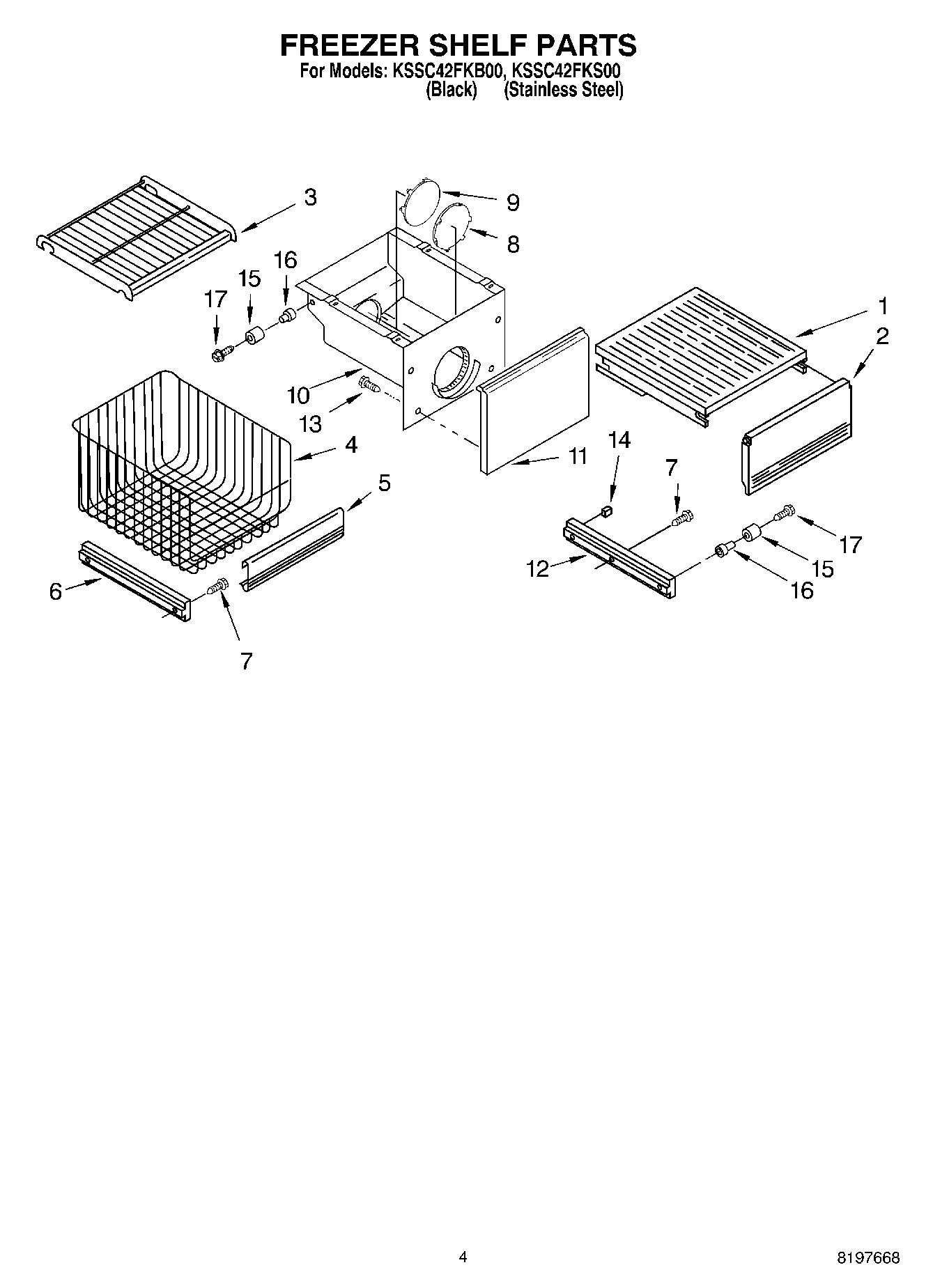

KSSC42FKS00 03 – FREEZER SHELF

KSSC42FKS00 03 – FREEZER SHELF

Written by

in

KSSC42FKS00 03 – FREEZER SHELF

Products

PositionProduct
1Solid Shelf
2Front, Ice Compartment
3Shelf, Fixed (2)
3Shelf, Deep
4Basket
5Trim, Basket
6Slide, Basket (Left Side (2))
6Slide, Basket (Right Side (2))
7W11624204 Whirlpool Screw
82003046 Whirlpool Refrigerator Plug
92003047 Whirlpool Refrigerator Plug
10Ice Container
11Front Cover
12Slide, Container (Right Side)
122006518 Whirlpool Refrigerator Track
13WP488787 Whirlpool Refrigerator Screw
14Roller Stop
15Roller
16Eyelet, Roller
17WPW10272364 Whirlpool Refrigerator Screw
