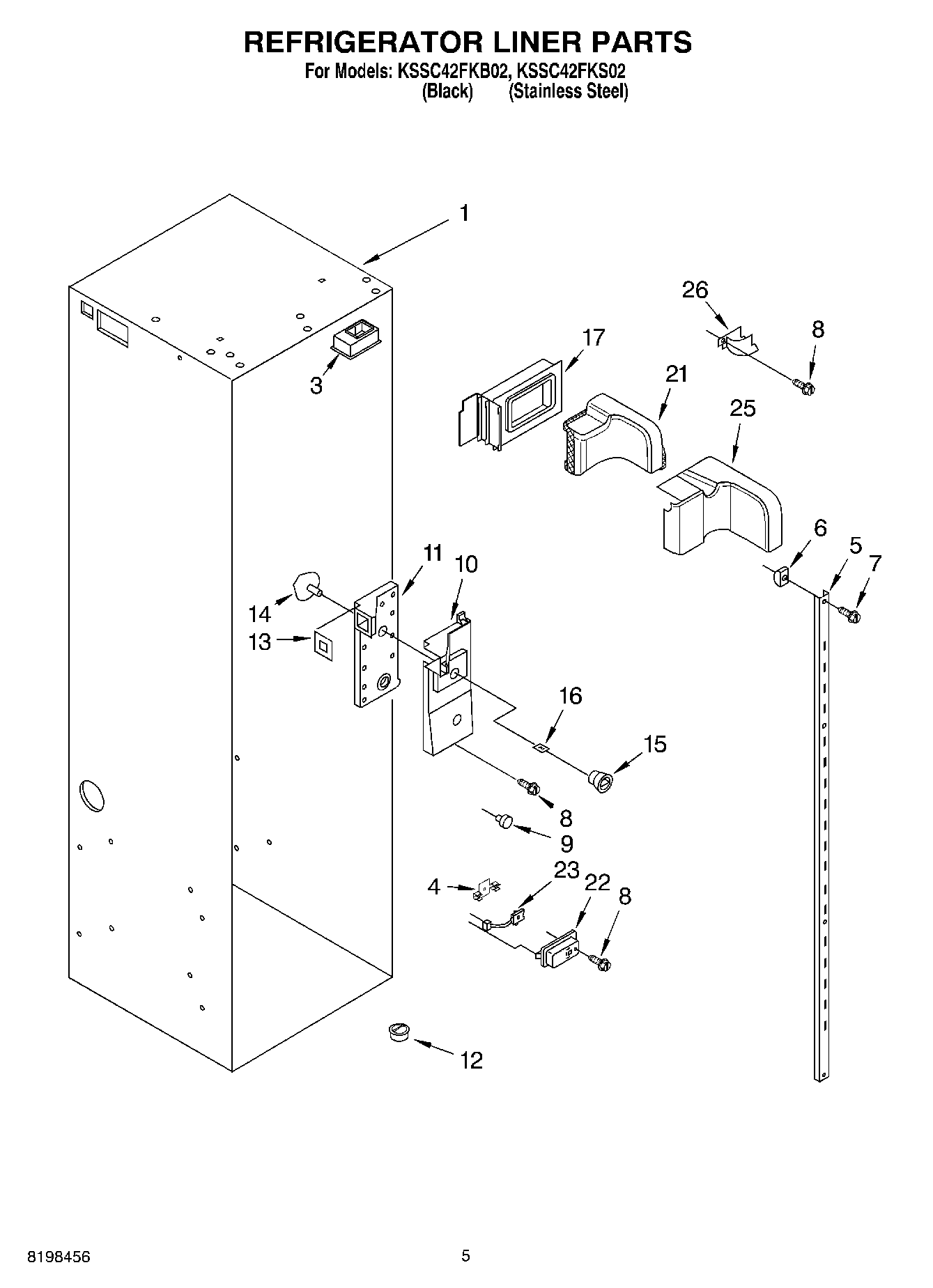

KSSC42FKS02 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
3	2208970 Whirlpool Refrigerator Air Duct
4	Clip, Thermistor
5	Ladder, Shelf (2)
6	520965 Whirlpool Refrigerator Support
7	2006475 Whirlpool Refrigerator Screw
8	W11624204 Whirlpool Screw
9	Hole Plug
10	Meat Pan, Air Duct Cover
11	Meat Pan, Air Duct
12	2171846 Whirlpool Refrigerator Release Valve
13	Seal, Air Duct
14	Damper Control, Meat Pan
15	Control Knob, Meat Pan
16	Retainer, Knob
17	WP2221296 Whirlpool Air Baffle
21	Diffuser Assembly
22	1116793 Whirlpool Refrigerator Cover
23	WP2188820 Whirlpool Refrigerator Thermistor
25	2309087 Whirlpool Refrigerator Cover
26	2003577 Whirlpool Refrigerator Guard
