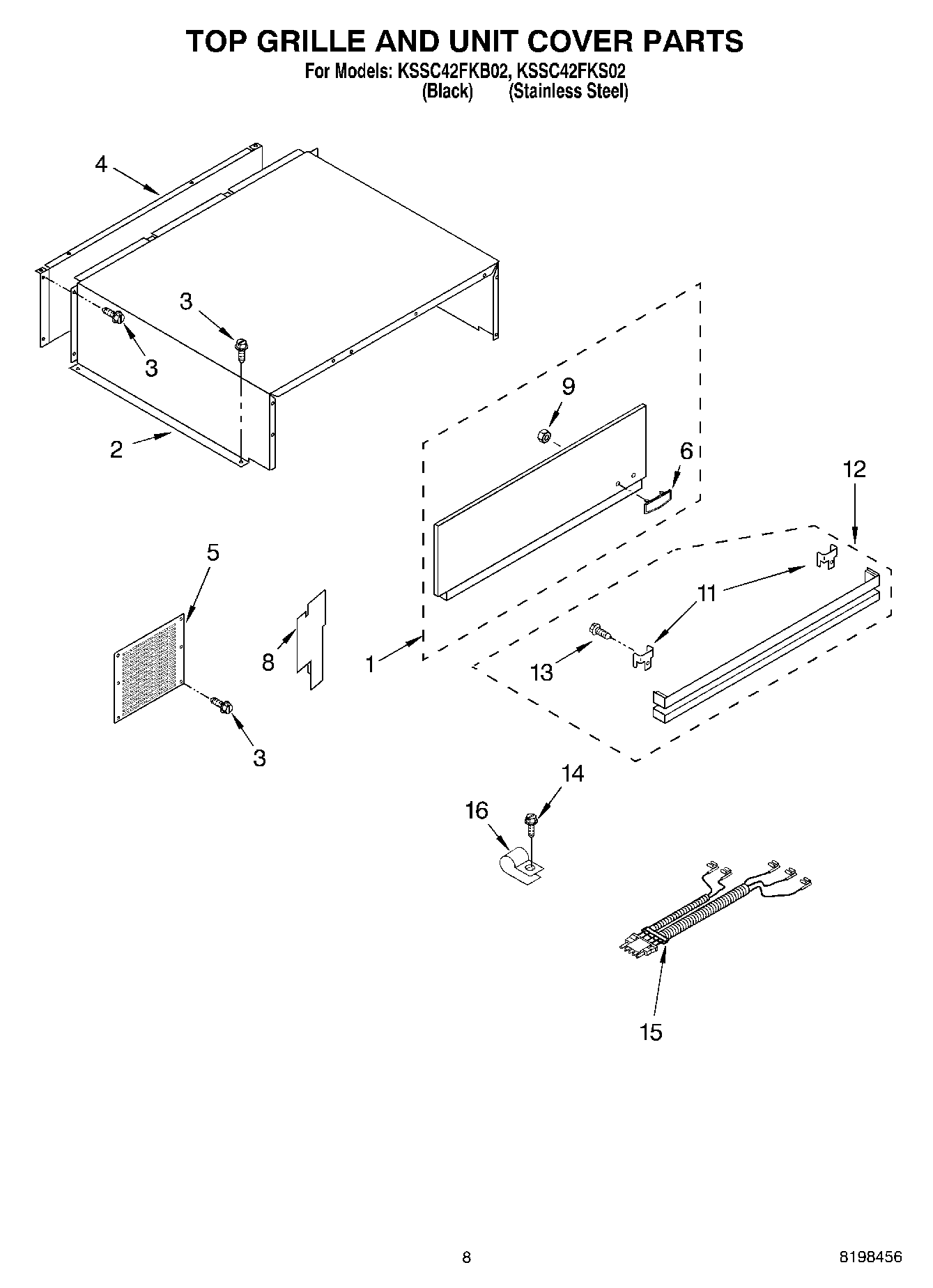

KSSC42FKS02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

Position	Product
1	Panel, Decorator (Black)
1	Panel, Decorator (Stainless steel)
2	Cover, Unit
4	2256466 Whirlpool Refrigerator Unit Cover
5	Guard, Wiring
6	Nameplate (Black)
8	Baffle-Air, Condenser
9	WP2004333 Whirlpool Refrigerator Nut
11	Bracket, Louver
12	Grille, Louver (Black)
12	Grille, Louver (Stainless steel)
13	303776 Whirlpool Dishwasher Screw
14	WP965173 Whirlpool Dishwasher Screw
15	Wire Assembly RC/FC Light Switch
16	489348 Whirlpool Refrigerator Tube Clamp
