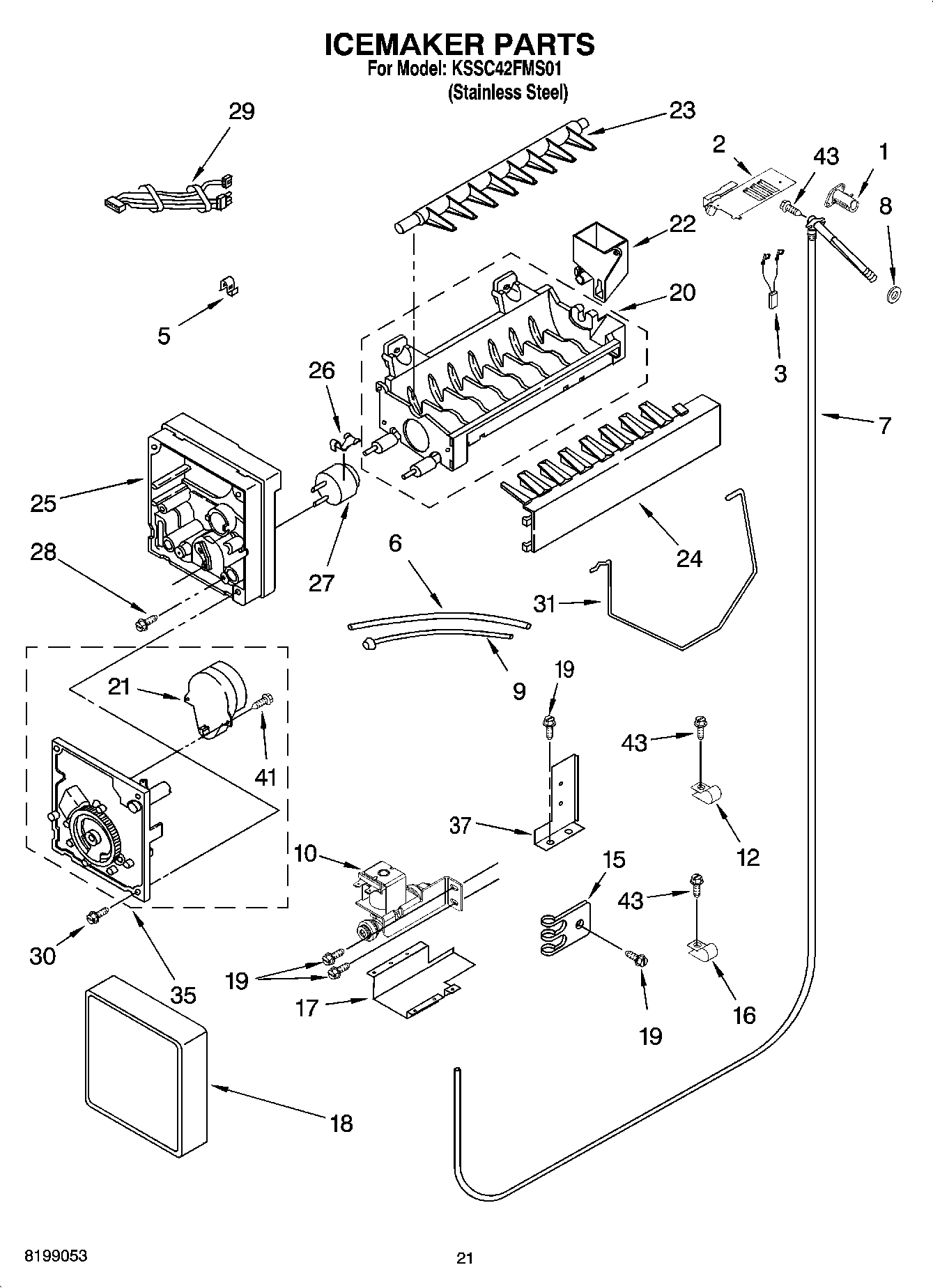

KSSC42FMS01 13 – ICEMAKER PARTS

Products

PositionProduct
1WP2221240 Whirlpool Refrigerator Heater
2WP2221231 Whirlpool Refrigerator Shield
3Jumper, Heater Fill Tube
5WP628379 Whirlpool Refrigerator Clip
6Tube, Filter Inlet
7Water Inlet Tube Assembly
8WP1106508 Whirlpool Refrigerator Gasket
9W11533506 Whirlpool Refrigerator Water Tube
10WP2313917 Whirlpool Refrigerator Inlet Valve
12W10833902 Whirlpool Refrigerator Clamp
15WP488366 Whirlpool Refrigerator Clamp
16488946 Whirlpool Air Conditioner Clamp
17Cover, Bottom
18Cover
19WP1163283 Whirlpool Air Conditioner Screw
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
29Wire Harness, Icemaker
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
358201515 Whirlpool Refrigerator Motor and Gear Module Kit
37Water Valve Mounting Bracket
41489136 Whirlpool Refrigerator Screw
43W11624204 Whirlpool Screw
100WPW10277450 Whirlpool Refrigerator Icemaker
100Cleaner (Stainless Steel)
100FOLLOWING PARTS NOT ILLUSTRATED
100(Optional Parts Only)
