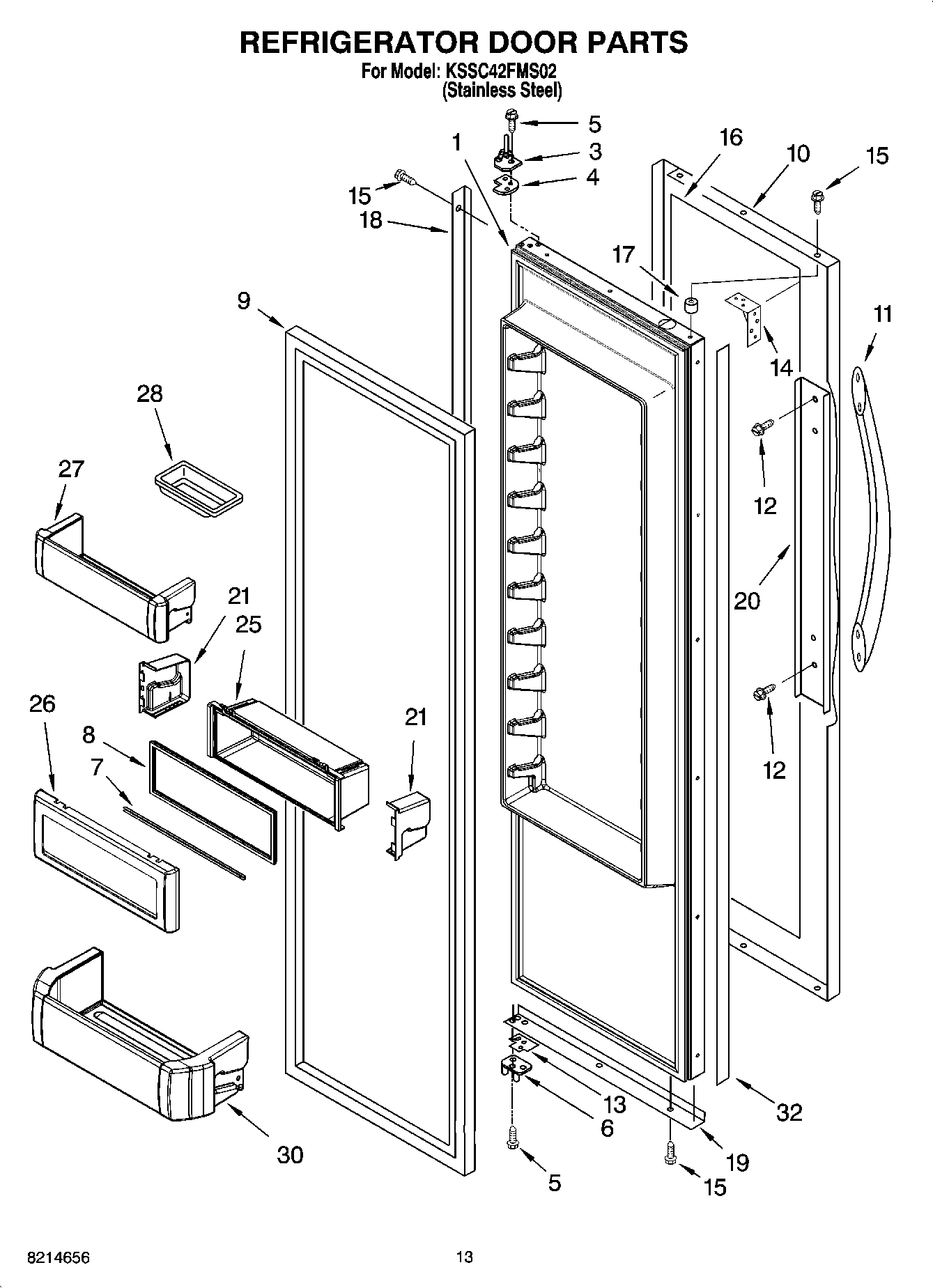

KSSC42FMS02 09 – REFRIGERATOR DOOR PARTS

KSSC42FMS02 09 – REFRIGERATOR DOOR PARTS

Written by

in

KSSC42FMS02 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 9)
3W11724512 Whirlpool Door Hinge
4Spacer-Hinge, Top
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7W11448696 Whirlpool Refrigerator Bin
8Gasket, Utility Bin
9WP2266902 Whirlpool Refrigerator Door Gasket
10Door Skin (Stainless Steel)
11Handle, Door (Stainless Steel)
12WP308544 Whirlpool Screw
13Door Spacer, Bottom
14BRACE, DOOR CORNER
15WP8281250 Whirlpool Refrigerator Screw
16Filler, Door
172005433 Whirlpool Refrigerator Spacer
18Spacer, Hinge Side
19Spacer, Door Bottom
20Plate, Handle
21WPW10323173 Whirlpool Refrigerator Retainer End Cap
21WPW10323172 Whirlpool Refrigerator Retainer End Cap
25W10323042 Whirlpool Cantilever Bin
26W11553221 Whirlpool Refrigerator Door Compressor
27W10323599 Whirlpool Refrigerator Cantilever Bin
28Butter Tray
30W10323747 Whirlpool Refrigerator Cantilever Bin
32Spacer, Door (Handle Side)
