KSSC42FMS02 12 – LOWER UNIT AND TUBE PARTS

KSSC42FMS02 12 – LOWER UNIT AND TUBE PARTS

Written by

in

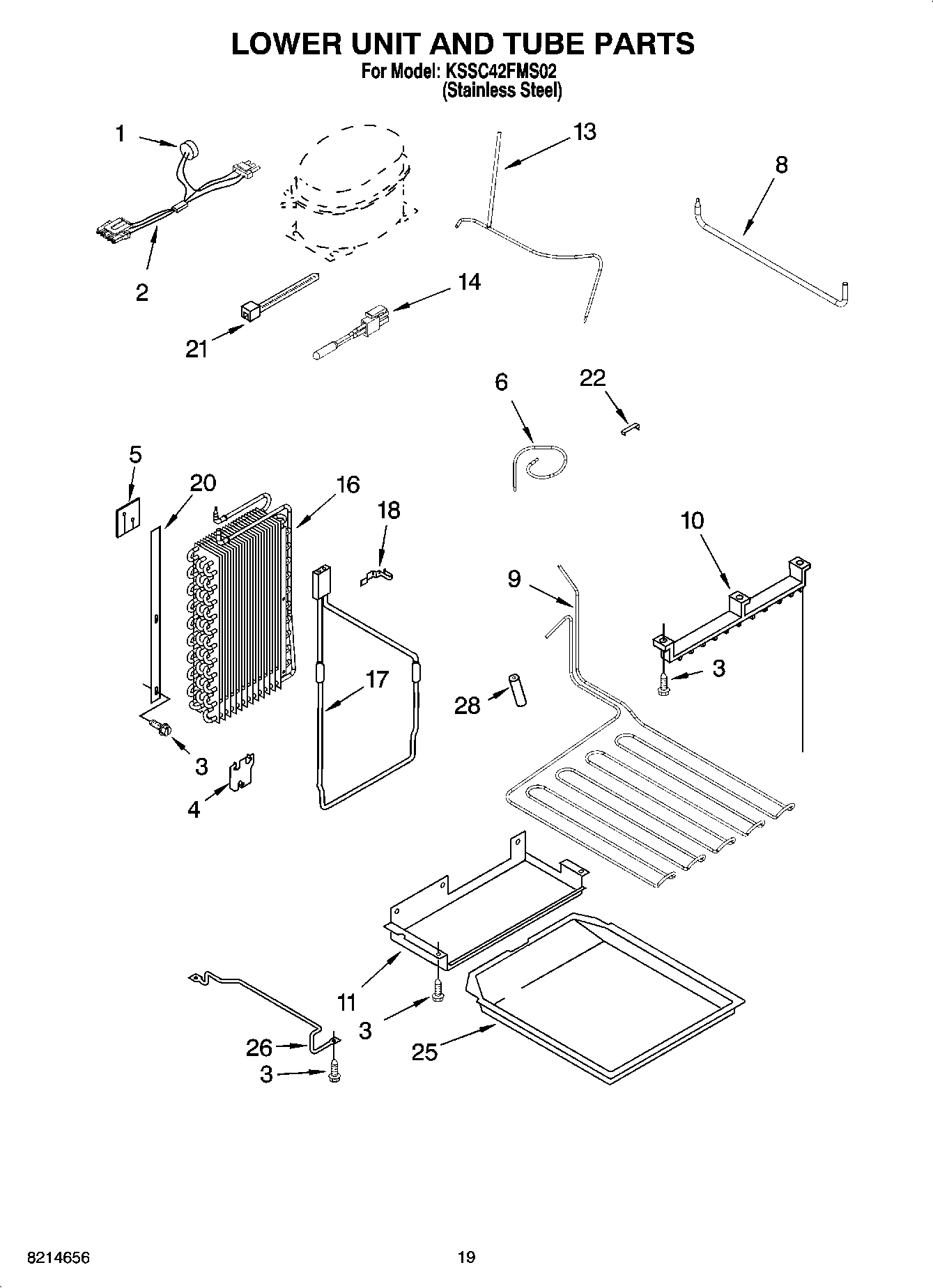

KSSC42FMS02 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1WP2306462 Whirlpool Refrigerator Bimetallic Defrost
2Harness, Evap Fan (Includes Item 55)
3W11624204 Whirlpool Screw
4Bracket
5Side Support
6Suction Tube
8Tube, Transition (Drier/Restrictor)
9Heater, Drain Pan
10Hanger, Heater
11Shield, Drain Pan
13W10624429 Whirlpool Refrigerator Tube
14WP2188820 Whirlpool Refrigerator Thermistor
16WP2306093 Whirlpool Evaporator
17WP2306388 Whirlpool Refrigerator Heater
181113048 Whirlpool Refrigerator Clamp
20Gasket, Evaporator
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Right)
26Bracket, Drain Pan (Left)
282215648 Whirlpool Refrigerator Dampener
