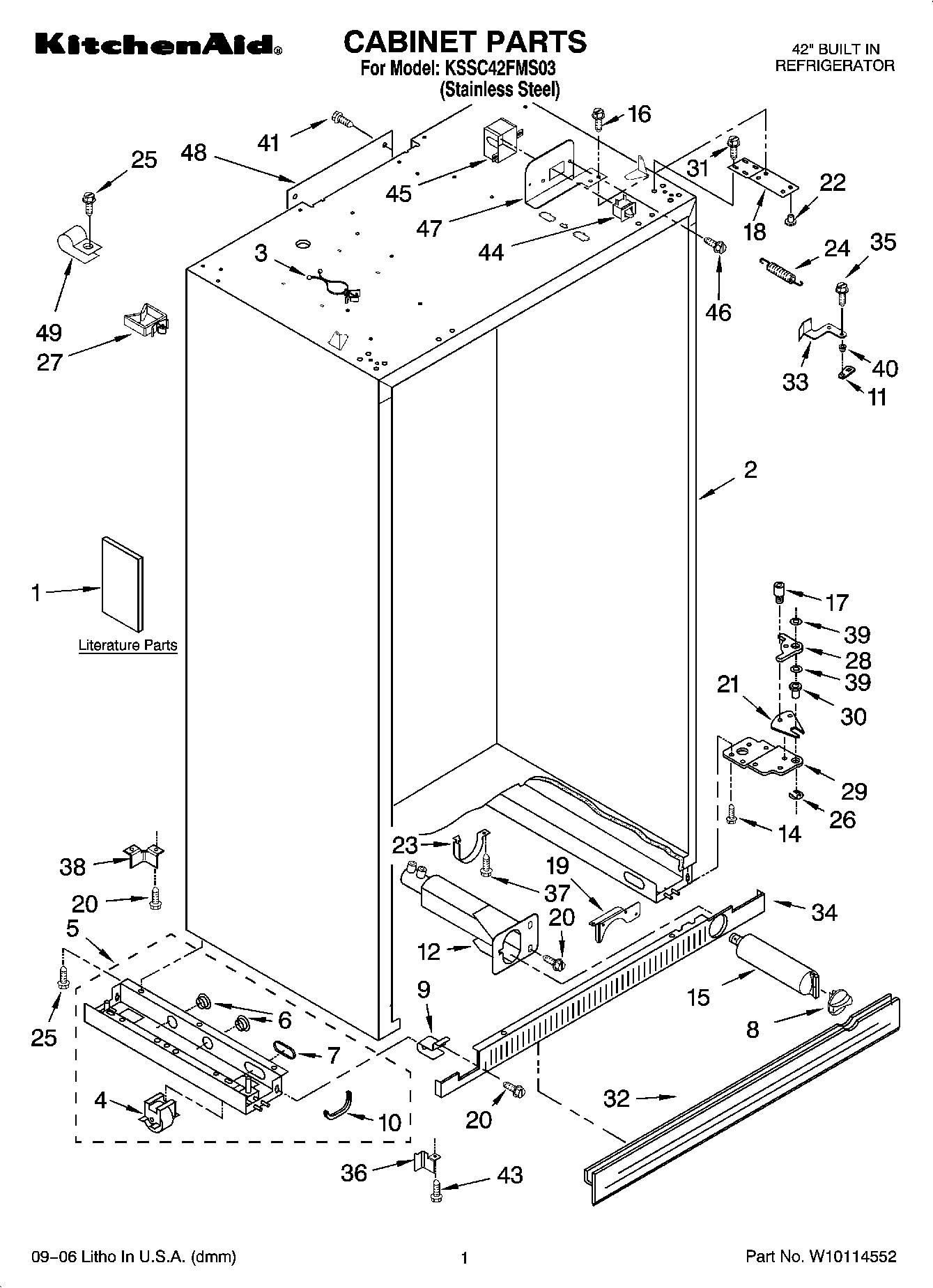

KSSC42FMS03 01 – CABINET PARTS
Written by
in
KSSC42FMS03 01 – CABINET PARTS
Products
Position
Product
1
Installation Instructions
1
Icemaker and Ingredient Care Center Service Sheet
1
Main Control Service Sheet
1
Use & Care Guide
1
Service & Wiring Sheet
1
Energy Label
2
Cabinet, (Not A Serviceable Part)
3
Clamp, Tube
4
WPW10138054 Whirlpool Refrigerator Cabinet Roller
5
W10860229 Whirlpool Refrigerator Support
5
W10860448 Whirlpool Refrigerator Support
6
Grommet, Wiring
7
Grommet, Flexible
8
WP2186494B Whirlpool Refrigerator Filter Cap
9
Mounting Bracket, Grill
10
Grommet, Crossover Tube
11
Cam-Closer, Door
12
WP2209022 Whirlpool Refrigerator Housing
14
Screw
15
EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
16
WP489399 Whirlpool Refrigerator Screw
17
SCREW
18
2257644 Whirlpool Refrigerator Door Hinge
19
Bracket, Mount (Water Filter)
20
WP489464 Whirlpool Refrigerator Screw
21
WP2004994 Whirlpool Refrigerator Hinge Bushing
22
Bushing
23
Clamp, Filter Housing
24
WP2004517 Whirlpool Refrigerator Spring
25
W11624204 Whirlpool Screw
26
WP489236 Whirlpool Refrigerator Ring
27
Wire clip (5)
28
Gap, Cover Assembly (Bottom)
29
WP2006780 Whirlpool Refrigerator Door Hinge
29
W10527053 Whirlpool Refrigerator Door Hinge
30
WP2302876 Whirlpool Refrigerator Hinge Bushing
31
W11189635 Whirlpool Refrigerator Screw
32
SKIRT, GRILLE (BOTTOM)
33
W10847927 Whirlpool Refrigerator Extension
33
W11298172 Whirlpool Refrigerator Extension
34
Grille, Bottom Front
35
Screw
36
2006616 Whirlpool Refrigerator Bracket
36
2006556 Whirlpool Refrigerator Bracket
37
WP489069 Whirlpool Compactor Screw
38
2006617 Whirlpool Refrigerator Bracket
39
WP2006346 Whirlpool Refrigerator Washer
40
WP2316859 Whirlpool Refrigerator Bushing
41
WP1163283 Whirlpool Air Conditioner Screw
43
WP489128 Whirlpool Refrigerator Screw
44
W11457217 Whirlpool Refrigerator Rocker Switch Combination
44
W11384469 Whirlpool Door Switch
45
2215938 Whirlpool Refrigerator Switch Cover
46
WP965173 Whirlpool Dishwasher Screw
47
2221096 Whirlpool Refrigerator Bracket
47
2221097 Whirlpool Refrigerator Bracket
48
2215612 Whirlpool Refrigerator Duct Cover
49
Clamp, Tube
←
