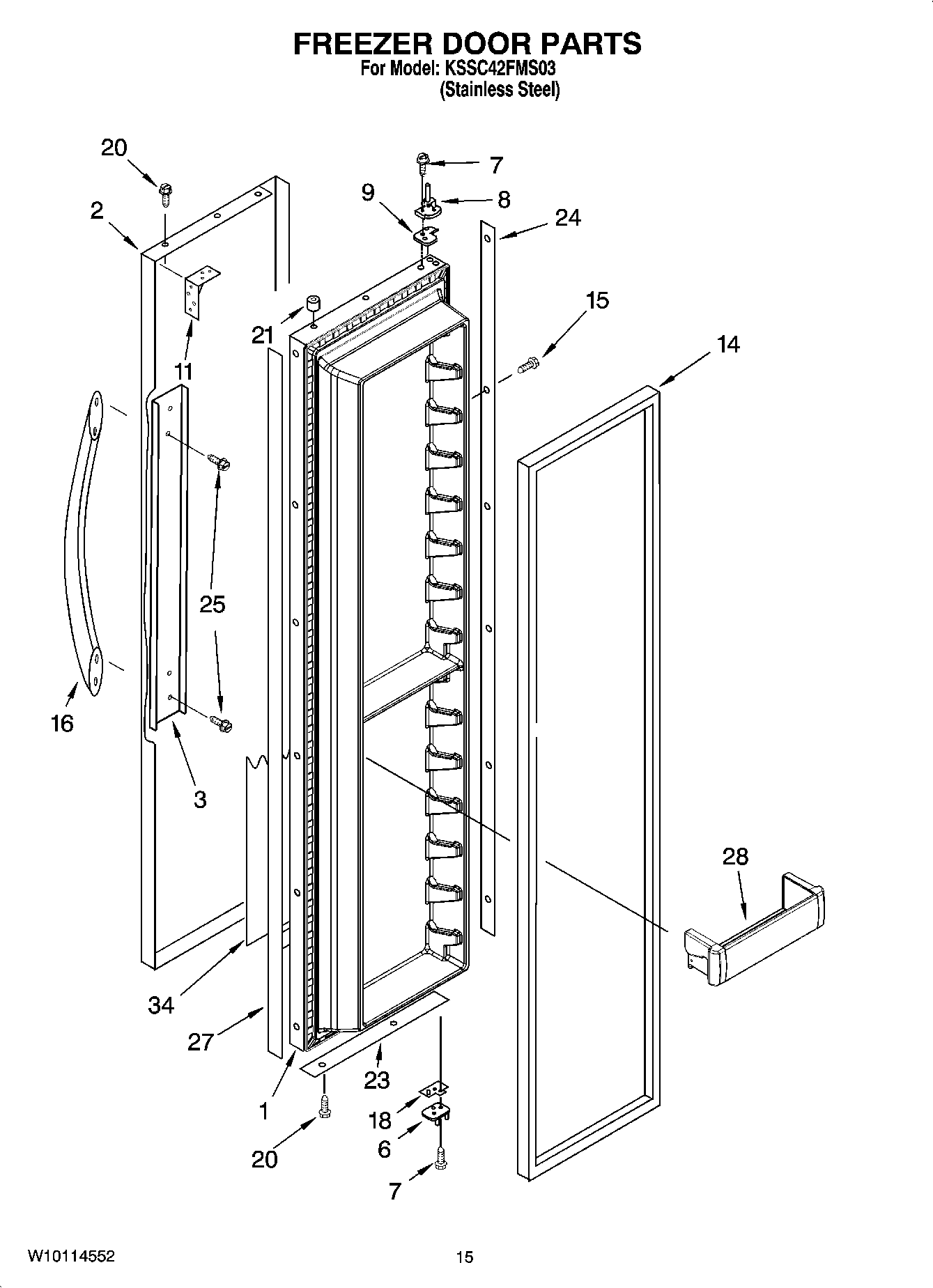

KSSC42FMS03 10 – FREEZER DOOR PARTSadmin2025-04-26T12:08:08+00:00KSSC42FMS03 10 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | LW10193486 Whirlpool Refrigerator FIP Stainless Steel Door |
| 2 | Skin, Door (Stainless Steel) |
| 3 | Plate, Handle |
| 6 | HINGE-DOOR |
| 7 | W11474472 Whirlpool Screw |
| 8 | W11724512 Whirlpool Door Hinge |
| 9 | Spacer-Hinge, Top |
| 11 | BRACE, DOOR CORNER |
| 14 | WP2266905 Whirlpool Refrigerator Door Gasket |
| 15 | W11624204 Whirlpool Screw |
| 16 | Handle, Door (Stainless Steel) |
| 18 | Door Spacer, Bottom |
| 20 | WP8281250 Whirlpool Refrigerator Screw |
| 21 | 2005433 Whirlpool Refrigerator Spacer |
| 23 | Spacer, Door Bottom |
| 24 | Spacer, Hinge Side |
| 25 | WP308544 Whirlpool Screw |
| 27 | Spacer, Door (Handle Side) |
| 28 | W10323602 Whirlpool Refrigerator Cantilever Bin |
| 34 | Filler, Door |
