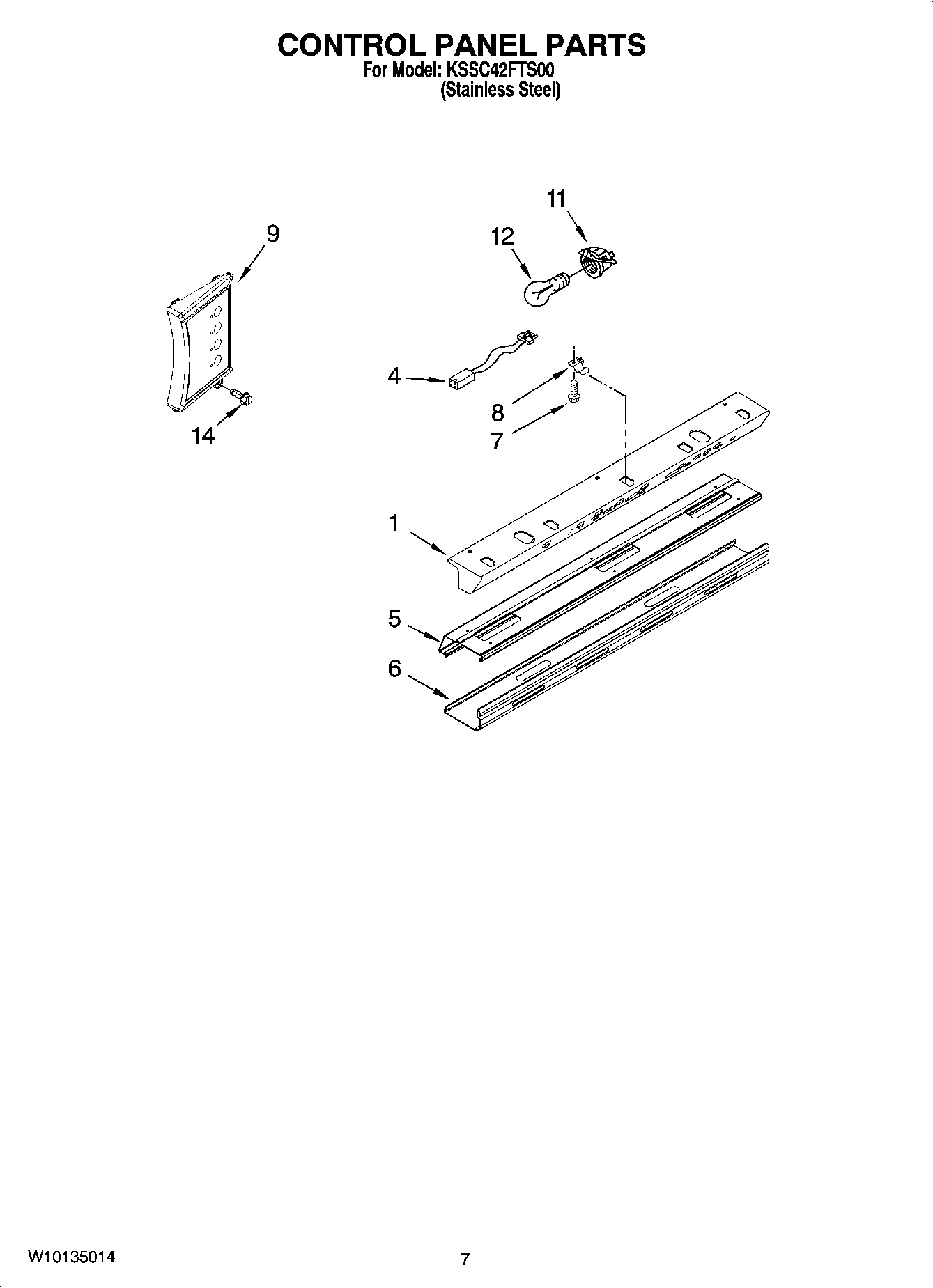

KSSC42FTS00 05 – CONTROL PANEL PARTS

KSSC42FTS00 05 – CONTROL PANEL PARTS

Written by

in

KSSC42FTS00 05 – CONTROL PANEL PARTS

Products

PositionProduct
1W10468947 Whirlpool Refrigerator Control Box
42310164 Whirlpool Refrigerator Wire Harness
5Bracket, Control Box
62307595 Whirlpool Light Lens
7WP488729 Whirlpool Refrigerator Door Screw
8Clip, Control Box
9WP2306086 Whirlpool Refrigerator Electronic Control Board
11WPW10191429 Whirlpool Refrigerator Socket
12WPA3073101 Whirlpool Light Bulb
14WPW10142283 Whirlpool Refrigerator Screw
