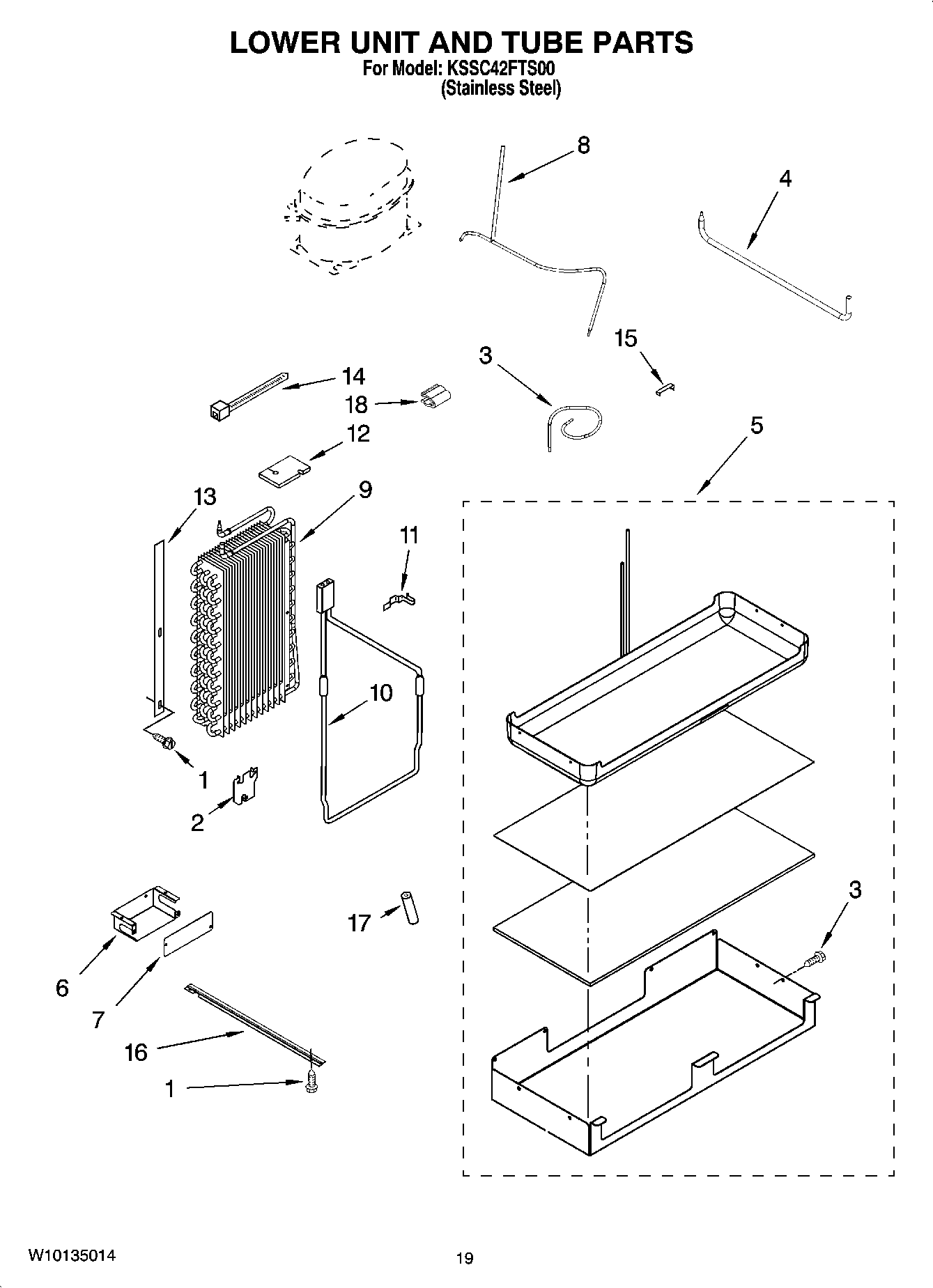

KSSC42FTS00 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1W11624204 Whirlpool Screw
2Bracket
3Tube, Suction
4W10388653 Whirlpool Refrigerator Tube
5WPW10281063 Whirlpool Refrigerator Heater Pan
6Cover, Wiring
7Cover, Box
8W10412488 Whirlpool Refrigerator Tube
9WP2306093 Whirlpool Evaporator
10WP2306388 Whirlpool Refrigerator Heater
111113048 Whirlpool Refrigerator Clamp
128201798 Whirlpool Refrigerator Fan Block
13Gasket, Evaporator
14Wire Tie
15W10169509 Whirlpool Refrigerator Clip
162320554 Whirlpool Bracket
172215648 Whirlpool Refrigerator Dampener
189791833 Whirlpool Refrigerator Clip
