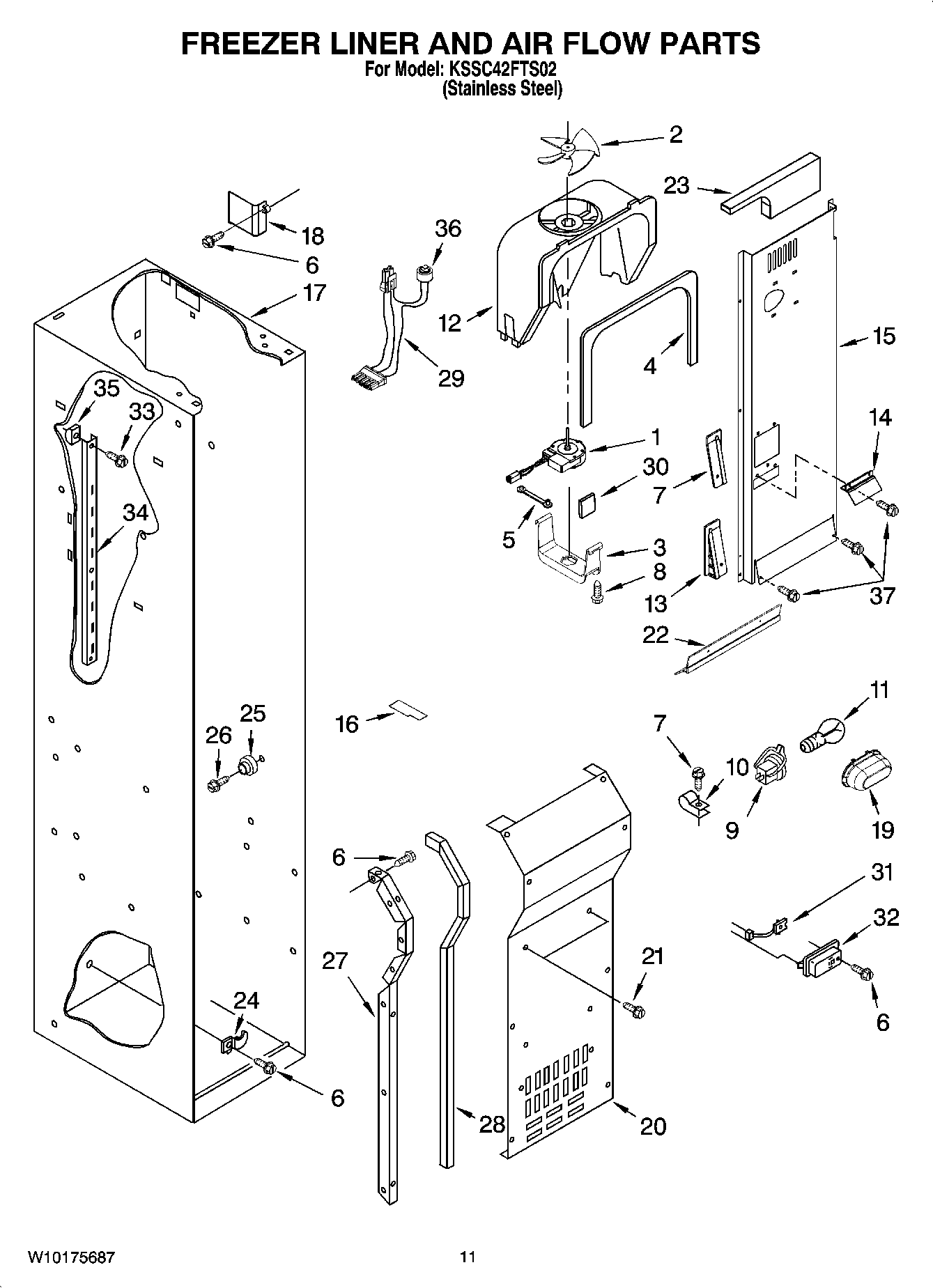

KSSC42FTS02 08 – FREEZER LINER AND AIR FLOW PARTS

KSSC42FTS02 08 – FREEZER LINER AND AIR FLOW PARTS

Written by

in

KSSC42FTS02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1Motor, Fan
2WP2169142 Whirlpool Fan Blade
38201663 Whirlpool Refrigerator Primary Fan Blade
4WP2302817 Whirlpool Refrigerator Gasket
5W11669856 Whirlpool Grommet
6W11624204 Whirlpool Screw
72259464 Whirlpool Refrigerator Wedge
8WP489128 Whirlpool Refrigerator Screw
9WPW10191429 Whirlpool Refrigerator Socket
10Clamp, Tube
11WPA3073101 Whirlpool Light Bulb
12WP2182120 Whirlpool Refrigerator Scroll Fan
132259465 Whirlpool Refrigerator Wedge
142266801 Whirlpool Refrigerator Deflector
15Air Duct
168201798 Whirlpool Refrigerator Fan Block
162209066 Whirlpool Refrigerator Fan Block
17Liner (Not A Serviceable Part)
182259025 Whirlpool Refrigerator Air Cover
19Light Shield
20Cover, Evaporator
21WP8281163 Whirlpool Refrigerator Screw
222302850 Whirlpool Refrigerator Support
23Deflector, Air Duct
241112260 Whirlpool EV Support
25WP2196483 Whirlpool Refrigerator Shelf Stud
26WP3400806 Whirlpool Screw
272259355 Whirlpool Refrigerator Evaporator Rail
27Evaporator, Cover Rail (Left Side)
282220904 Whirlpool Refrigerator Gasket
29W10139189 Whirlpool Refrigerator Wire Harness
30W11553819 Whirlpool Refrigerator Insulation
31WP2188820 Whirlpool Refrigerator Thermistor
32WP2317844 Whirlpool Refrigerator Cover
332006475 Whirlpool Refrigerator Screw
34WP2259032 Whirlpool Ladder
352259445 Whirlpool Support Assembly
36WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
37WPW10142283 Whirlpool Refrigerator Screw
