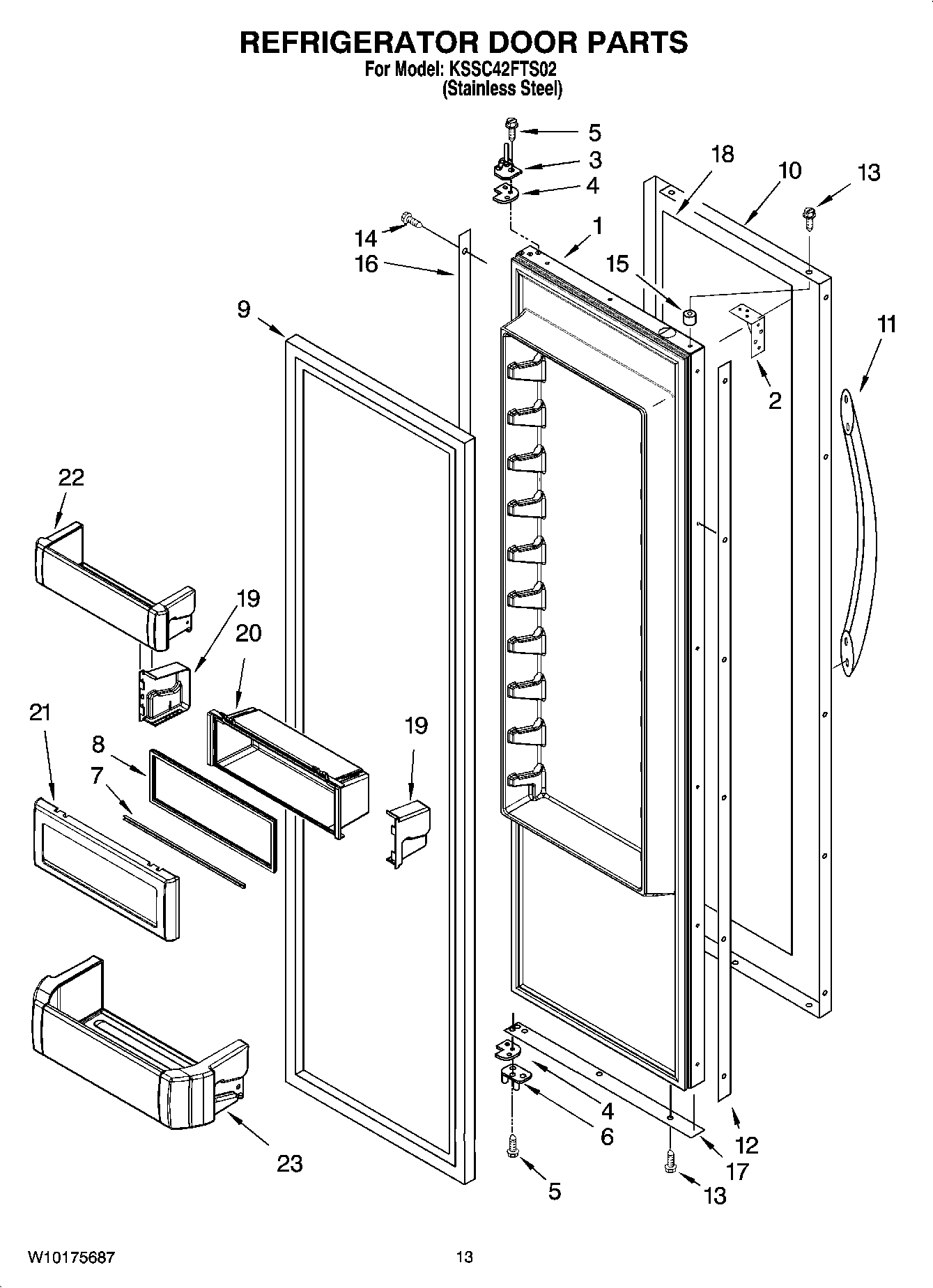

KSSC42FTS02 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 9)
2BRACE, DOOR CORNER
3W11724512 Whirlpool Door Hinge
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7W11448696 Whirlpool Refrigerator Bin
8Gasket, Utility Bin
9WP2266902 Whirlpool Refrigerator Door Gasket
10Skin, Door
11WP2316868 Whirlpool Refrigerator Handle
12Spacer, Door (Handle Side)
13W10759522 Whirlpool Screw
14WP8281250 Whirlpool Refrigerator Screw
152005433 Whirlpool Refrigerator Spacer
16Spacer, Hinge Side
17Spacer, Door Bottom
18Filler, Door
19WPW10323172 Whirlpool Refrigerator Retainer End Cap
19WPW10323173 Whirlpool Refrigerator Retainer End Cap
20W10323042 Whirlpool Cantilever Bin
21W11553221 Whirlpool Refrigerator Door Compressor
22W10323599 Whirlpool Refrigerator Cantilever Bin
23W10323747 Whirlpool Refrigerator Cantilever Bin
