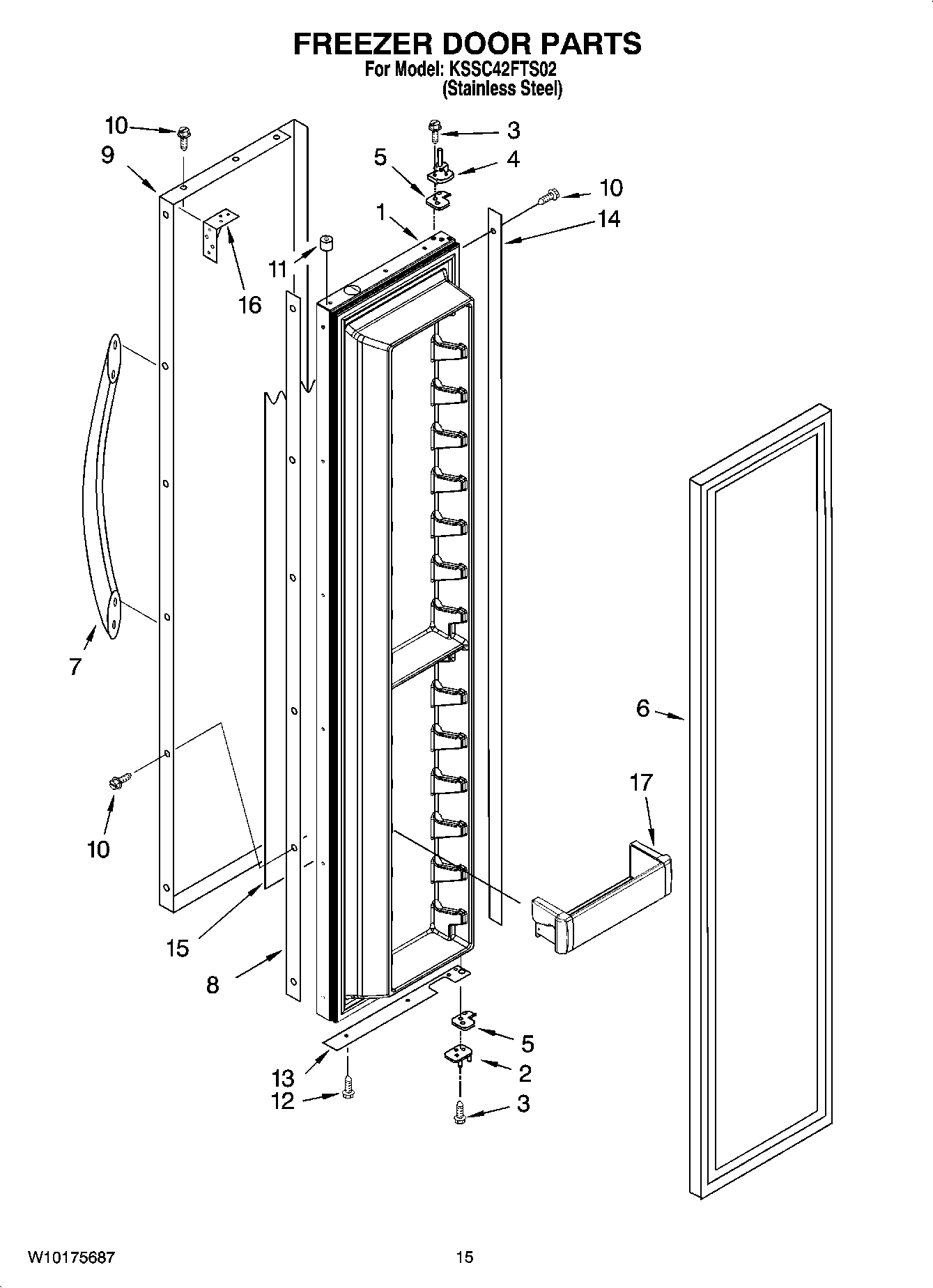

KSSC42FTS02 10 – FREEZER DOOR PARTS

KSSC42FTS02 10 – FREEZER DOOR PARTS

Written by

in

KSSC42FTS02 10 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193486 Whirlpool Refrigerator FIP Stainless Steel Door
2HINGE-DOOR
3W11474472 Whirlpool Screw
4W11724512 Whirlpool Door Hinge
5W11673500 Whirlpool Door Hinge
6WP2266905 Whirlpool Refrigerator Door Gasket
7WP2316868 Whirlpool Refrigerator Handle
8Spacer, Door-Skin (Handle Side)
9Skin, Door
10WP8281250 Whirlpool Refrigerator Screw
112005433 Whirlpool Refrigerator Spacer
12W10759522 Whirlpool Screw
13Spacer, Door Bottom
14Spacer, Hinge Side
15Filler, Door
16BRACE, DOOR CORNER
17W10323602 Whirlpool Refrigerator Cantilever Bin
