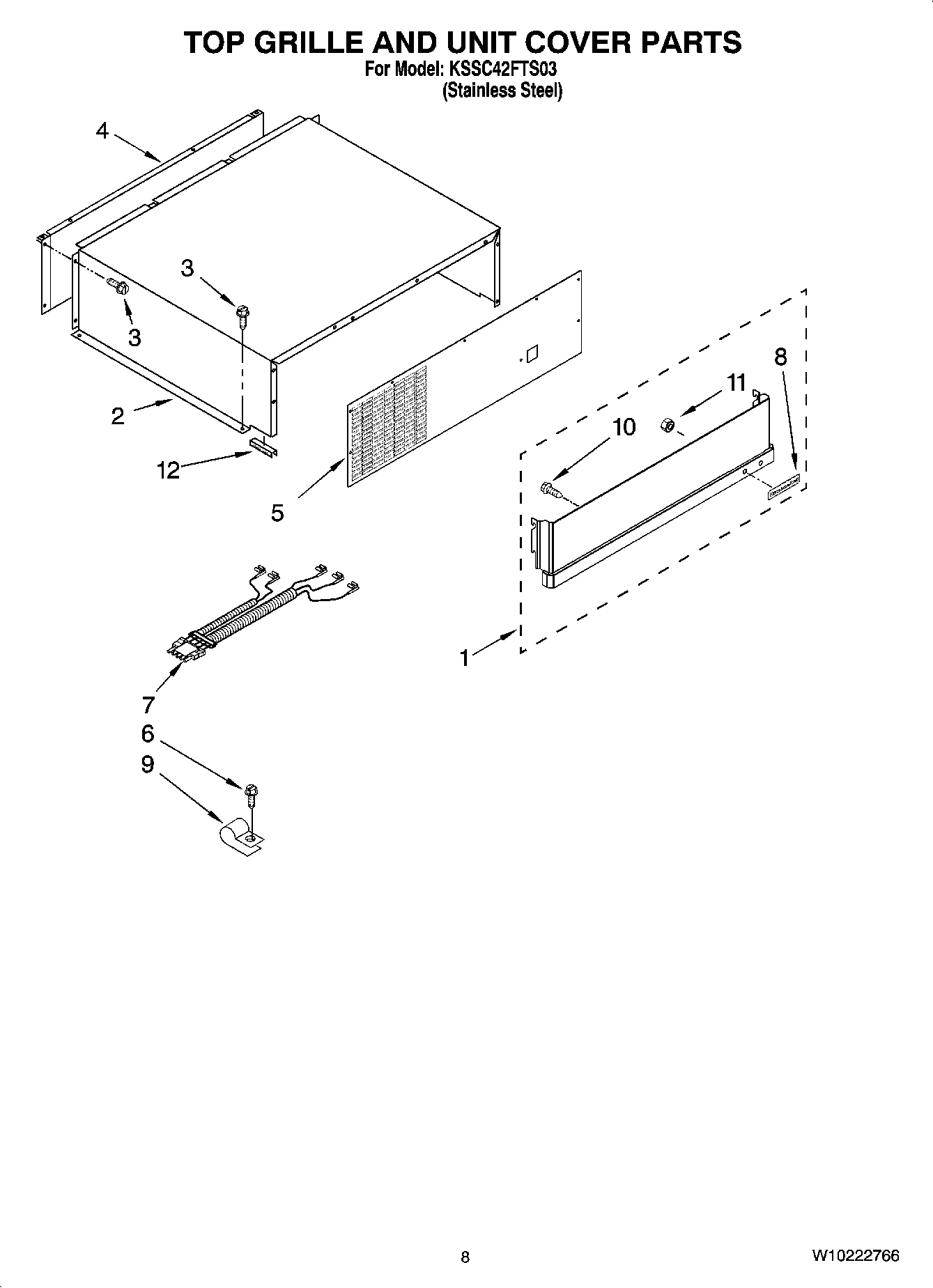

KSSC42FTS03 06 – TOP GRILLE AND UNIT COVER PARTS

KSSC42FTS03 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSC42FTS03 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5FRONT, UNIT COVER
6WP965173 Whirlpool Dishwasher Screw
7W10167456 Whirlpool Harness Switch
8NAMEPLATE
9489348 Whirlpool Refrigerator Tube Clamp
10WP489399 Whirlpool Refrigerator Screw
11WP2004333 Whirlpool Refrigerator Nut
122215910 Whirlpool Refrigerator Grommet
