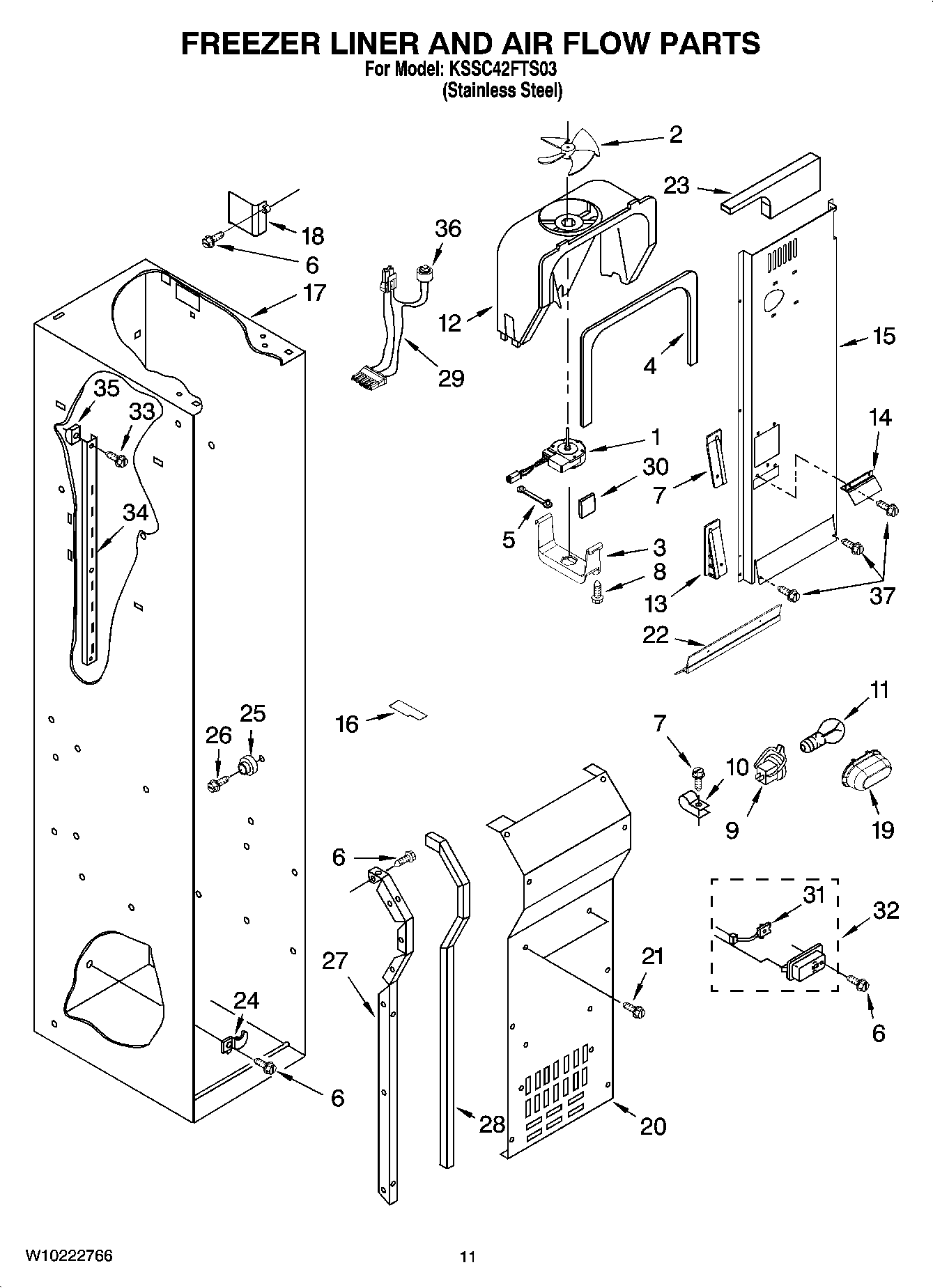

KSSC42FTS03 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
2	WP2169142 Whirlpool Fan Blade
3	8201663 Whirlpool Refrigerator Primary Fan Blade
4	WP2302817 Whirlpool Refrigerator Gasket
5	W11669856 Whirlpool Grommet
6	W11624204 Whirlpool Screw
7	2259464 Whirlpool Refrigerator Wedge
8	WP489128 Whirlpool Refrigerator Screw
9	WPW10191429 Whirlpool Refrigerator Socket
10	Clamp, Tube
11	WPA3073101 Whirlpool Light Bulb
12	WP2182120 Whirlpool Refrigerator Scroll Fan
13	2259465 Whirlpool Refrigerator Wedge
14	2266801 Whirlpool Refrigerator Deflector
15	Air Duct
16	8201798 Whirlpool Refrigerator Fan Block
16	2209066 Whirlpool Refrigerator Fan Block
17	Liner (Not A Serviceable Part)
18	2259025 Whirlpool Refrigerator Air Cover
19	Light Shield
20	Cover, Evaporator
21	WP8281163 Whirlpool Refrigerator Screw
22	2302850 Whirlpool Refrigerator Support
23	Deflector, Air Duct
24	1112260 Whirlpool EV Support
25	WP2196483 Whirlpool Refrigerator Shelf Stud
26	WPW10191952 Whirlpool Refrigerator Screw
27	2259355 Whirlpool Refrigerator Evaporator Rail
27	Evaporator, Cover Rail (Left Side)
28	2220904 Whirlpool Refrigerator Gasket
29	W10139189 Whirlpool Refrigerator Wire Harness
30	W11553819 Whirlpool Refrigerator Insulation
31	WP2188820 Whirlpool Refrigerator Thermistor
32	WP2317844 Whirlpool Refrigerator Cover
33	2006475 Whirlpool Refrigerator Screw
34	WP2259032 Whirlpool Ladder
35	2259445 Whirlpool Support Assembly
36	WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
37	WPW10142283 Whirlpool Refrigerator Screw
