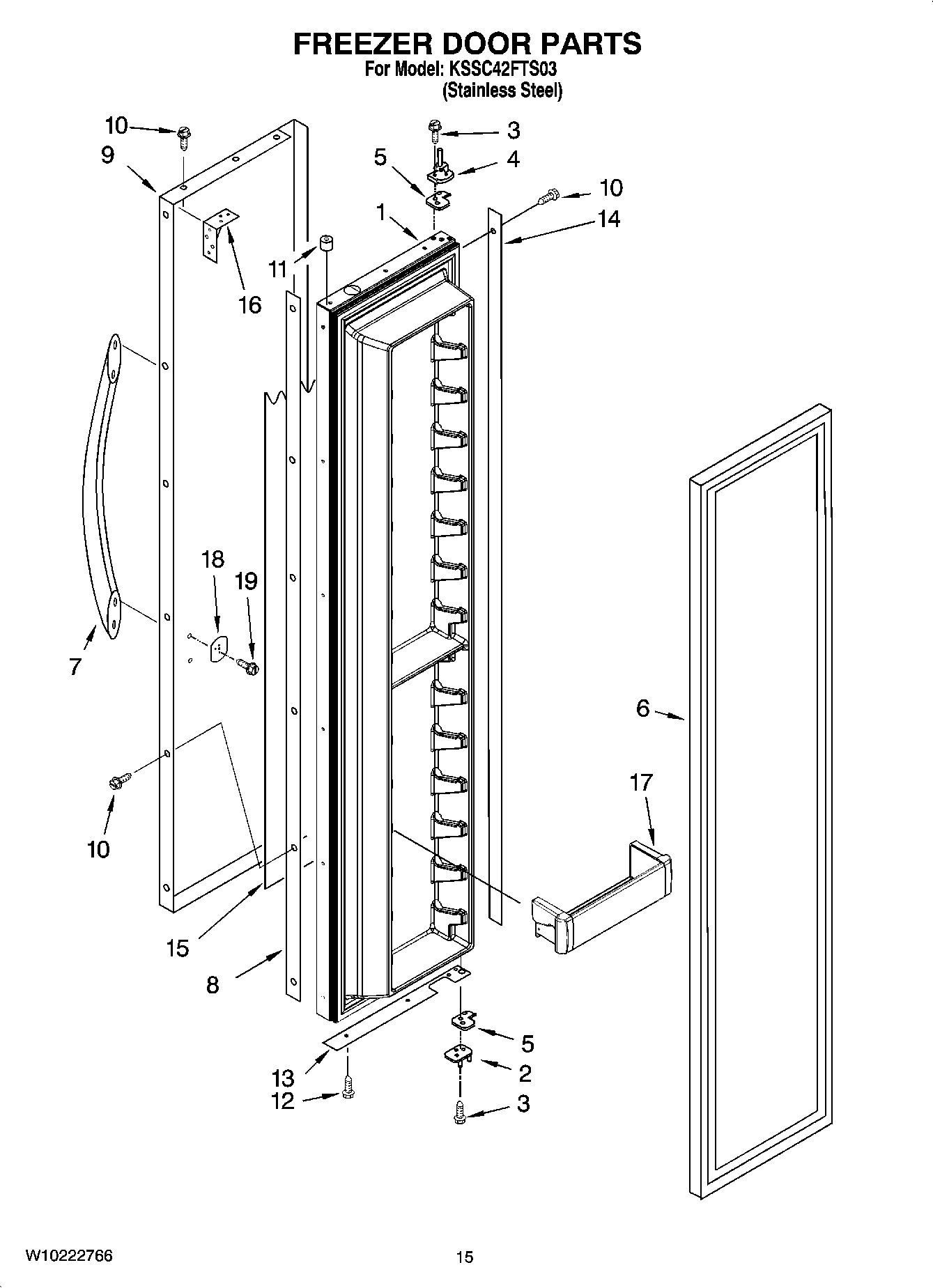

KSSC42FTS03 10 – FREEZER DOOR PARTS

KSSC42FTS03 10 – FREEZER DOOR PARTS

Written by

in

KSSC42FTS03 10 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193486 Whirlpool Refrigerator FIP Stainless Steel Door
2HINGE-DOOR
3W11474472 Whirlpool Screw
4W11724512 Whirlpool Door Hinge
5W11673500 Whirlpool Door Hinge
6WP2266905 Whirlpool Refrigerator Door Gasket
7WP2316868 Whirlpool Refrigerator Handle
8Spacer, Door-Skin (Handle Side)
9Skin, Door
10WP8281250 Whirlpool Refrigerator Screw
112005433 Whirlpool Refrigerator Spacer
12W10759522 Whirlpool Screw
13Spacer, Door Bottom
14SPACER, DOOR-SKIN (HINGE SIDE)
15Filler, Door
16BRACE, DOOR CORNER
17W10323602 Whirlpool Refrigerator Cantilever Bin
18W10127710 Whirlpool Refrigerator Plate
19WP308544 Whirlpool Screw
