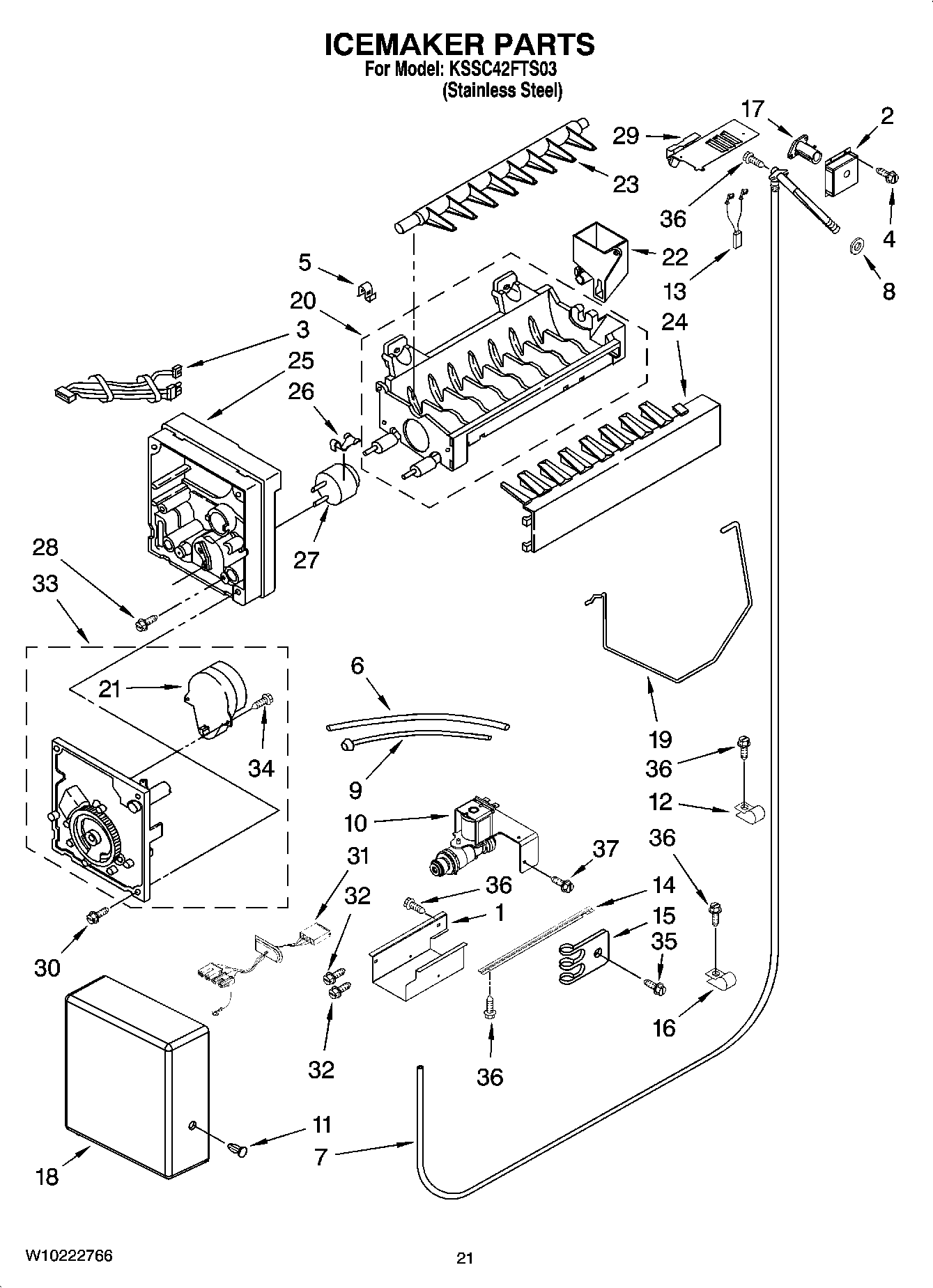

KSSC42FTS03 13 – ICEMAKER PARTS

Products

Position	Product
	Following Parts Not Illustrated (Optional Parts Only)
	Cleaner, Stainless Steel
	W10129081 Whirlpool Refrigerator Handle
1	Shield, Valve
2	Cover, Fill Tube Heater
3	2310136 Whirlpool Refrigerator Wire Harness
4	WP488729 Whirlpool Refrigerator Door Screw
5	WP628379 Whirlpool Refrigerator Clip
6	W11565275 Whirlpool Refrigerator Water Tube
7	W11662302 Whirlpool Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	VALVE-INLT REFR
11	WP489115 Whirlpool Refrigerator Rivet
12	W10833902 Whirlpool Refrigerator Clamp
13	Jumper, Heater Fill Tube
14	Support, Valve
15	WP488366 Whirlpool Refrigerator Clamp
16	Clamp, Tube
17	WP2221240 Whirlpool Refrigerator Heater
18	Cover
19	W11342242 Whirlpool Refrigerator Ice Level Arm
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	WP2221231 Whirlpool Refrigerator Shield
30	WP681249 Whirlpool Screw Assembly
31	W10139195 Whirlpool Wire Harness
32	WP489128 Whirlpool Refrigerator Screw
34	489136 Whirlpool Refrigerator Screw
35	WP489464 Whirlpool Refrigerator Screw
36	W11624204 Whirlpool Screw
37	WP489069 Whirlpool Compactor Screw
100	WPW10277450 Whirlpool Refrigerator Icemaker
