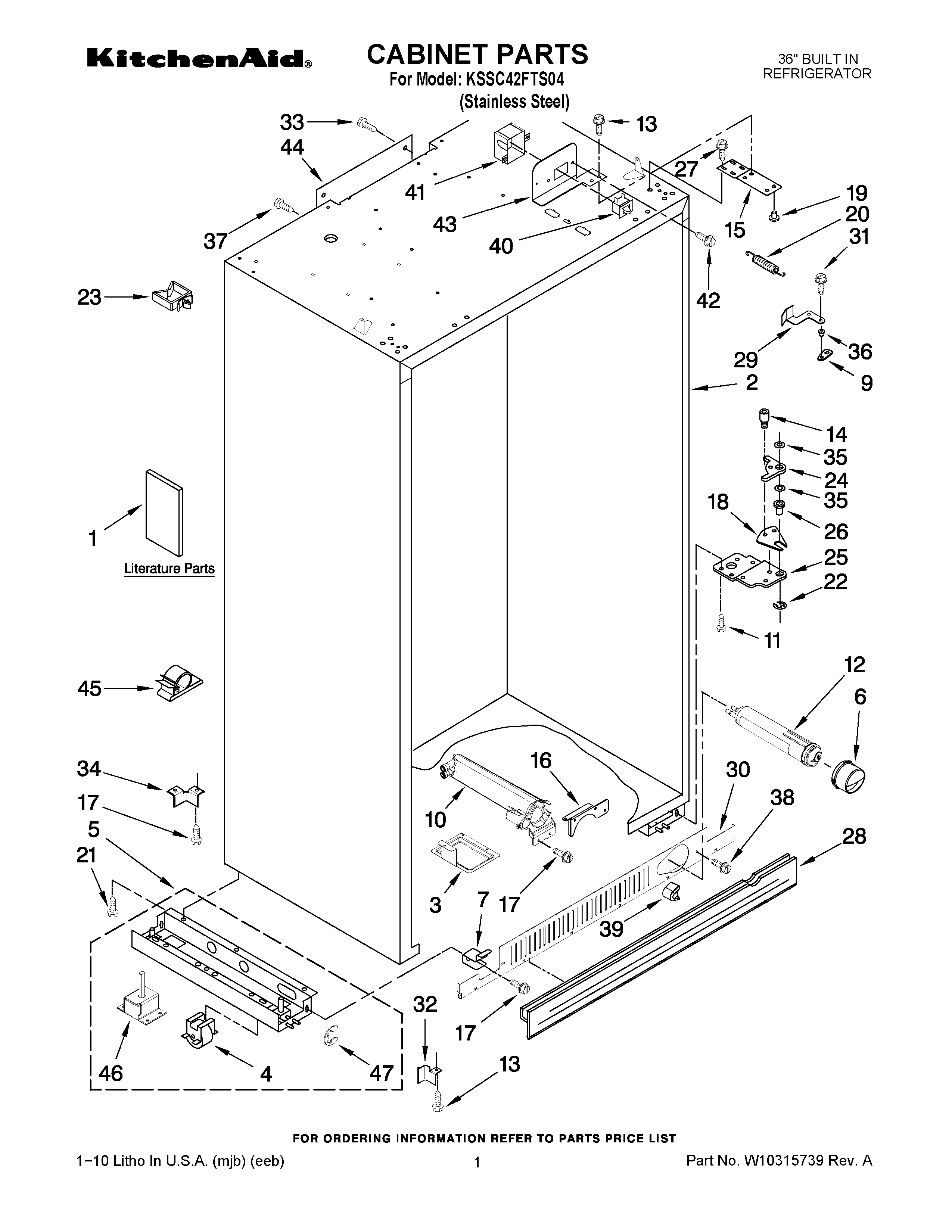

KSSC42FTS04 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Icemaker and Ingredient Care Center Service Sheet
1	Use & Care Guide
1	Main Control Service Sheet
1	Energy Guide
1	INSTALLATION INSTRUCTIONS
2	CABINET (NOT A SERVICEABLE PART)
3	2318189 Whirlpool Refrigerator Drip Pan
4	4388239 Whirlpool Refrigerator Primary Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5	W10860448 Whirlpool Refrigerator Support
6	WP2260518B Whirlpool Water Filter Cap
7	W10839844 Whirlpool Refrigerator Bracket
9	Cam-Closer, Door
10	WPW10121140 Whirlpool Refrigerator Housing
11	Screw
12	FILTER 3-SINGLE TEAL
13	WP489399 Whirlpool Refrigerator Screw
14	SCREW
15	2257644 Whirlpool Refrigerator Door Hinge
16	W10674648 Whirlpool Refrigerator Bracket
17	WP489464 Whirlpool Refrigerator Screw
18	WP2004994 Whirlpool Refrigerator Hinge Bushing
19	Bushing
20	WP2004517 Whirlpool Refrigerator Spring
21	W11624204 Whirlpool Screw
22	WP489236 Whirlpool Refrigerator Ring
23	CLIP, TUBE
24	Gap, Cover Assembly (Bottom)
25	WP2006780 Whirlpool Refrigerator Door Hinge
25	W10527053 Whirlpool Refrigerator Door Hinge
26	WP2302876 Whirlpool Refrigerator Hinge Bushing
27	W11189635 Whirlpool Refrigerator Screw
28	SKIRT, GRILLE (BOTTOM)
29	W10847927 Whirlpool Refrigerator Extension
29	W11298172 Whirlpool Refrigerator Extension
30	Grille Bottom, Front (Black)
31	Screw
32	2006616 Whirlpool Refrigerator Bracket
32	2006556 Whirlpool Refrigerator Bracket
33	WP489069 Whirlpool Compactor Screw
34	2006617 Whirlpool Refrigerator Bracket
35	WP2006346 Whirlpool Refrigerator Washer
36	WP2316859 Whirlpool Refrigerator Bushing
37	WP1163283 Whirlpool Air Conditioner Screw
38	WP8281163 Whirlpool Refrigerator Screw
39	WP2260503B Whirlpool Refrigerator Button
40	W11457217 Whirlpool Refrigerator Rocker Switch Combination
40	W11384469 Whirlpool Door Switch
41	2215938 Whirlpool Refrigerator Switch Cover
42	WP965173 Whirlpool Dishwasher Screw
43	2221097 Whirlpool Refrigerator Bracket
43	2221096 Whirlpool Refrigerator Bracket
44	2215612 Whirlpool Refrigerator Duct Cover
45	Clamp
46	2005032 Whirlpool Refrigerator Leveler
47	2006841 Whirlpool Ring
