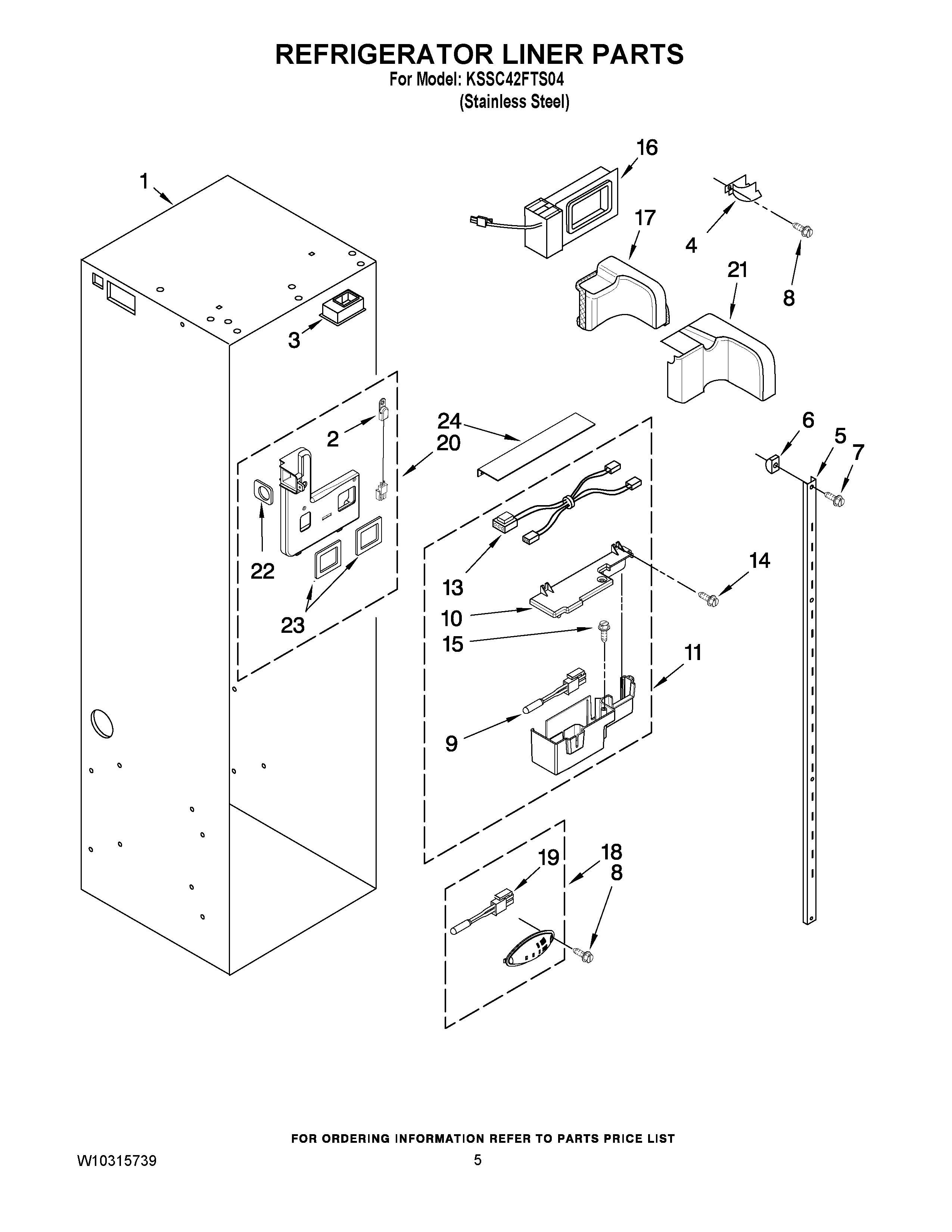

KSSC42FTS04 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2306010 Whirlpool Refrigerator Thermistor
3	2208970 Whirlpool Refrigerator Air Duct
4	2003577 Whirlpool Refrigerator Guard
5	WP2259077 Whirlpool Ladder Assembly
6	520965 Whirlpool Refrigerator Support
7	2006475 Whirlpool Refrigerator Screw
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP2302937 Whirlpool Refrigerator Thermistor
10	2302986 Whirlpool Refrigerator Cover
11	WPW10169528 Whirlpool Refrigerator Diffuser
13	2310205 Whirlpool Wire Jumper
14	Screw, 8 x 1-1/4 (3)
15	W11624204 Whirlpool Screw
16	WP2221296 Whirlpool Air Baffle
17	WP2309222 Whirlpool Refrigerator Diffuser
18	WP2317844 Whirlpool Refrigerator Cover
19	WP2188820 Whirlpool Refrigerator Thermistor
20	W10475010 Whirlpool Refrigerator Spacer
21	2309087 Whirlpool Refrigerator Cover
22	Seal, Air Duct (Round Hole)
23	2259398 Whirlpool Refrigerator Seal
24	Diverter, Crisper
