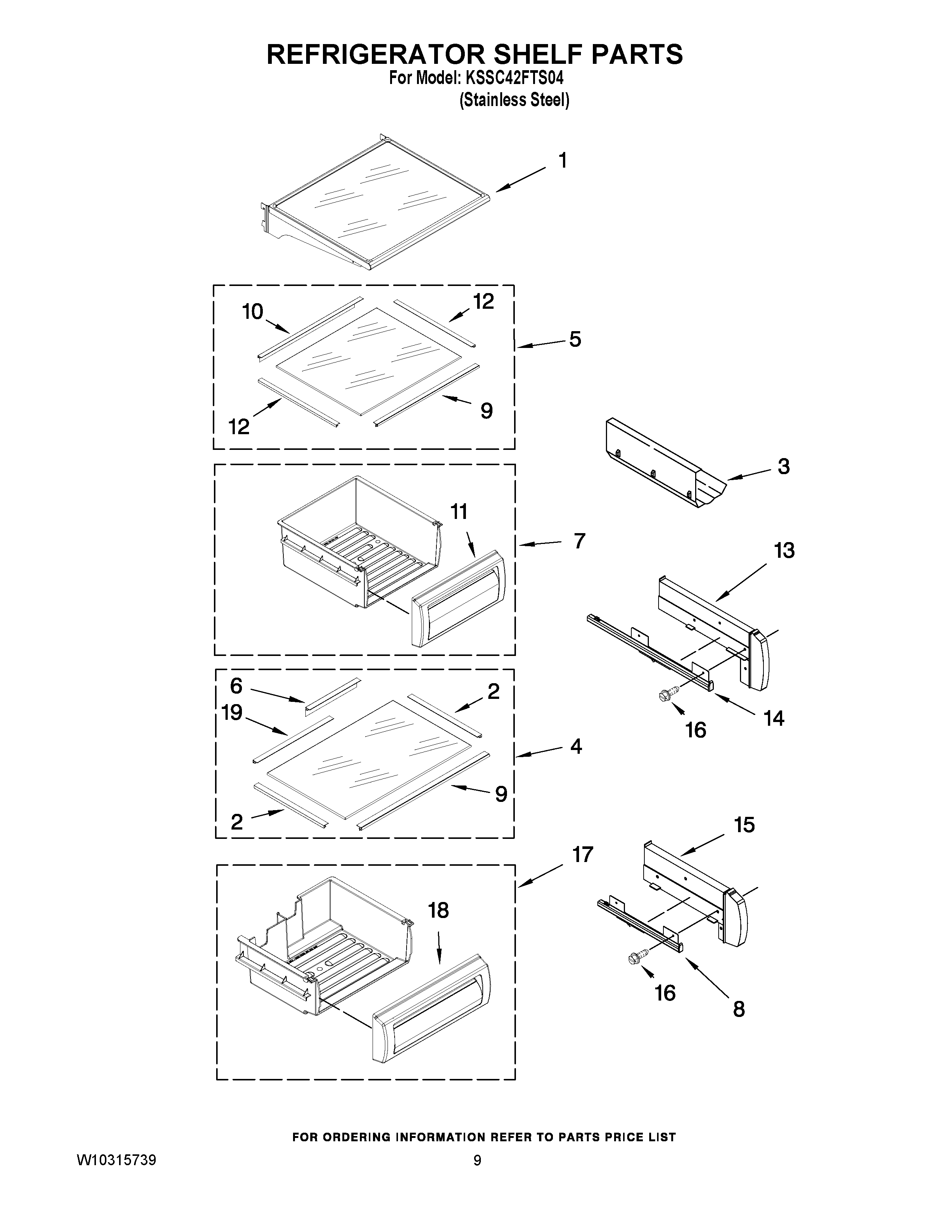

KSSC42FTS04 07 – REFRIGERATOR SHELF PARTS

KSSC42FTS04 07 – REFRIGERATOR SHELF PARTS

Written by

in

KSSC42FTS04 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf Assembly
22256250 Whirlpool Refrigerator Shelf Trim
3W10777924 Whirlpool Refrigerator Wine Rack
4MEAT PAN COVER ASSEMBLY
5W10849998 Whirlpool Glass Shelf
6TRIM, GLASS REAR
7W10407624 Whirlpool Refrigerator Crisper Pan
82302955 Whirlpool Refrigerator Slide
82302954 Whirlpool Refrigerator Slide
9Trim, Glass Front
10TRIM, GLASS REAR
11WP2256248 Whirlpool Refrigerator Front Pan
12Trim, Glass Side
132256222 Whirlpool Refrigerator Track
132256223 Whirlpool Refrigerator Track
142302956 Whirlpool Refrigerator Slide
142302957 Whirlpool Refrigerator Slide
152256243 Whirlpool Refrigerator Track
152256244 Whirlpool Refrigerator Track
16WP3400886 Whirlpool Refrigerator Screw
17W10407627 Whirlpool Refrigerator Meat Pan
18WP2256366 Whirlpool Refrigerator Front Pan
19Trim, Glass Rear Side
