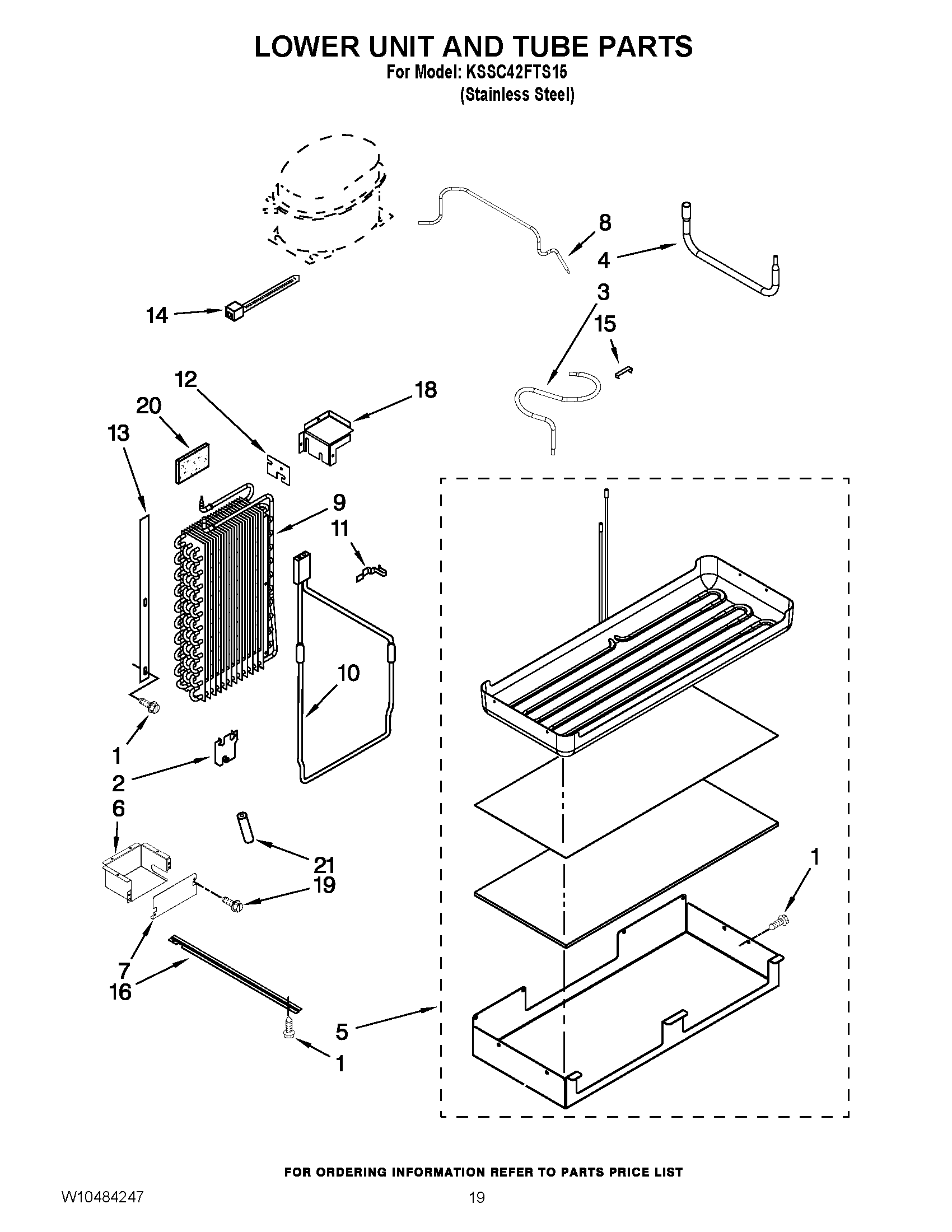

KSSC42FTS15 12 – LOWER UNIT AND TUBE PARTS

KSSC42FTS15 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSC42FTS15 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1W11624204 Whirlpool Screw
2W10157752 Whirlpool Bracket
3TUBE, SUCTION
4W10388653 Whirlpool Refrigerator Tube
5WPW10281063 Whirlpool Refrigerator Heater Pan
6WIRE COVER BOTTOM
7WIRE BOX COVER
8W10412488 Whirlpool Refrigerator Tube
9WPW10427992 Whirlpool Refrigerator Evaporator
10W10140161 Whirlpool Refrigerator Heater
111113048 Whirlpool Refrigerator Clamp
12W10139908 Whirlpool Seal
13W10432308 Whirlpool Gasket
14Wire Tie
15W10169509 Whirlpool Refrigerator Clip
162320554 Whirlpool Bracket
18Bracket Assembly, Return Air
19WP489069 Whirlpool Compactor Screw
20INSULATION
212215648 Whirlpool Refrigerator Dampener
