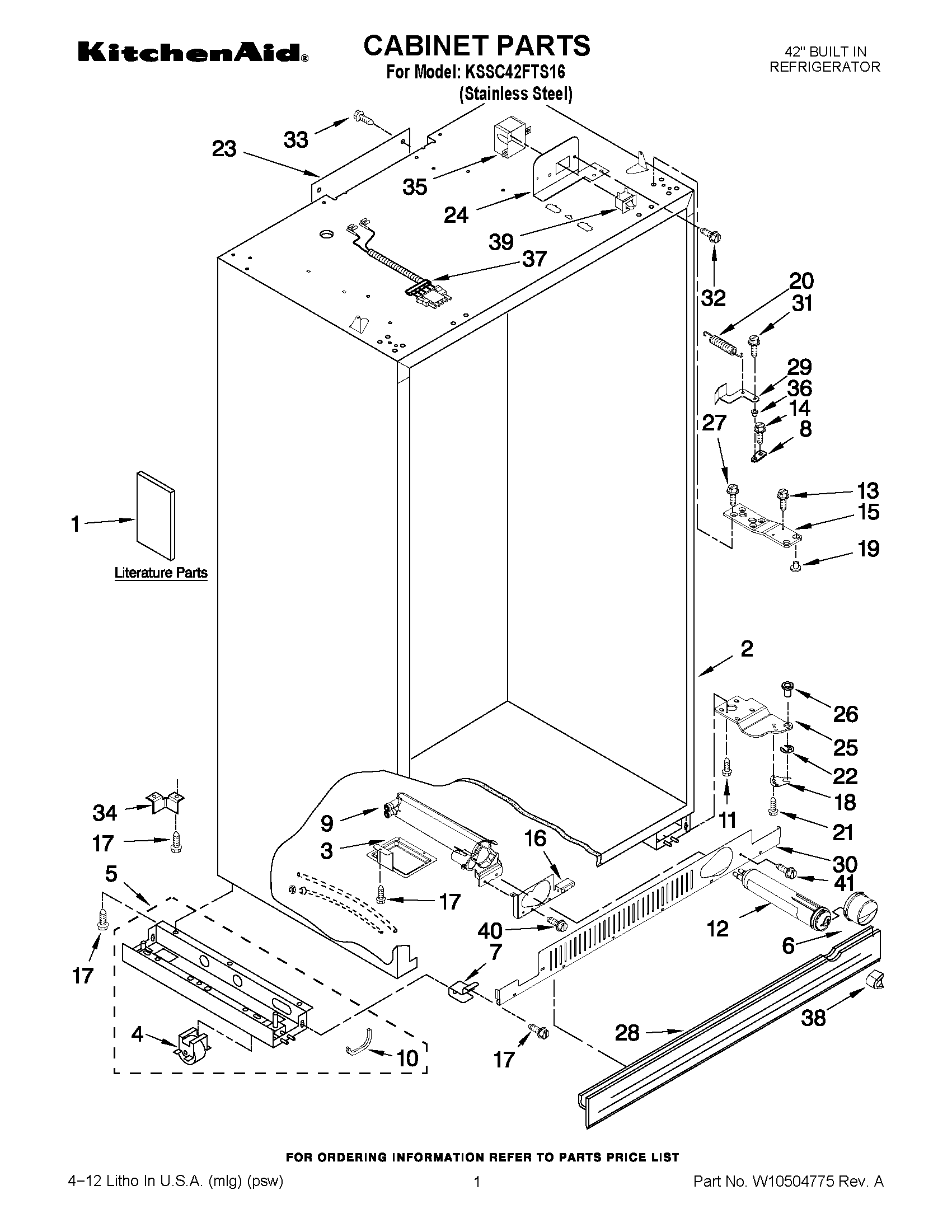

KSSC42FTS16 01 – CABINET PARTS

KSSC42FTS16 01 – CABINET PARTS

Written by

in

KSSC42FTS16 01 – CABINET PARTS

Products

PositionProduct
1MAIN CONTROL SERVICE SHEET
1SERVICE & WIRING SHEET
1ENERGY LABEL
1USE & CARE GUIDE
1Icemaker and Ingredient Care Center Service Sheet
1SERVICE SHEET (INSTALLATION INSTRUCTIONS)
2CABINET (NOT A SERVICEABLE PART)
32318189 Whirlpool Refrigerator Drip Pan
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5W10860229 Whirlpool Refrigerator Support
5W10860448 Whirlpool Refrigerator Support
6WP2260518B Whirlpool Water Filter Cap
7W10839844 Whirlpool Refrigerator Bracket
8Cam-Closer, Door
9WPW10121140 Whirlpool Refrigerator Housing
102307584 Whirlpool Refrigerator Grommet
11Screw
12FILTER 3-SINGLE TEAL
13WP8281164 Whirlpool Refrigerator Screw
14WP8281227 Whirlpool Screw
152257644 Whirlpool Refrigerator Door Hinge
16W10674648 Whirlpool Refrigerator Bracket
17WP489464 Whirlpool Refrigerator Screw
18WP2004994 Whirlpool Refrigerator Hinge Bushing
19Bushing
20WP2004517 Whirlpool Refrigerator Spring
21SCREW
22WP489236 Whirlpool Refrigerator Ring
232215612 Whirlpool Refrigerator Duct Cover
242221096 Whirlpool Refrigerator Bracket
242221097 Whirlpool Refrigerator Bracket
25WP2006780 Whirlpool Refrigerator Door Hinge
25W10527053 Whirlpool Refrigerator Door Hinge
26WP2302876 Whirlpool Refrigerator Hinge Bushing
27W11189635 Whirlpool Refrigerator Screw
28SKIRT, GRILLE (BOTTOM)
29W11298172 Whirlpool Refrigerator Extension
29W10847927 Whirlpool Refrigerator Extension
30Grille Bottom, Front (Black)
31SCREW
32WP965173 Whirlpool Dishwasher Screw
33WP1163283 Whirlpool Air Conditioner Screw
342006617 Whirlpool Refrigerator Bracket
352215938 Whirlpool Refrigerator Switch Cover
36WP2316859 Whirlpool Refrigerator Bushing
37W10167456 Whirlpool Harness Switch
38WP2260503B Whirlpool Refrigerator Button
39W11457217 Whirlpool Refrigerator Rocker Switch Combination
39W11384469 Whirlpool Door Switch
40WP8281163 Whirlpool Refrigerator Screw
