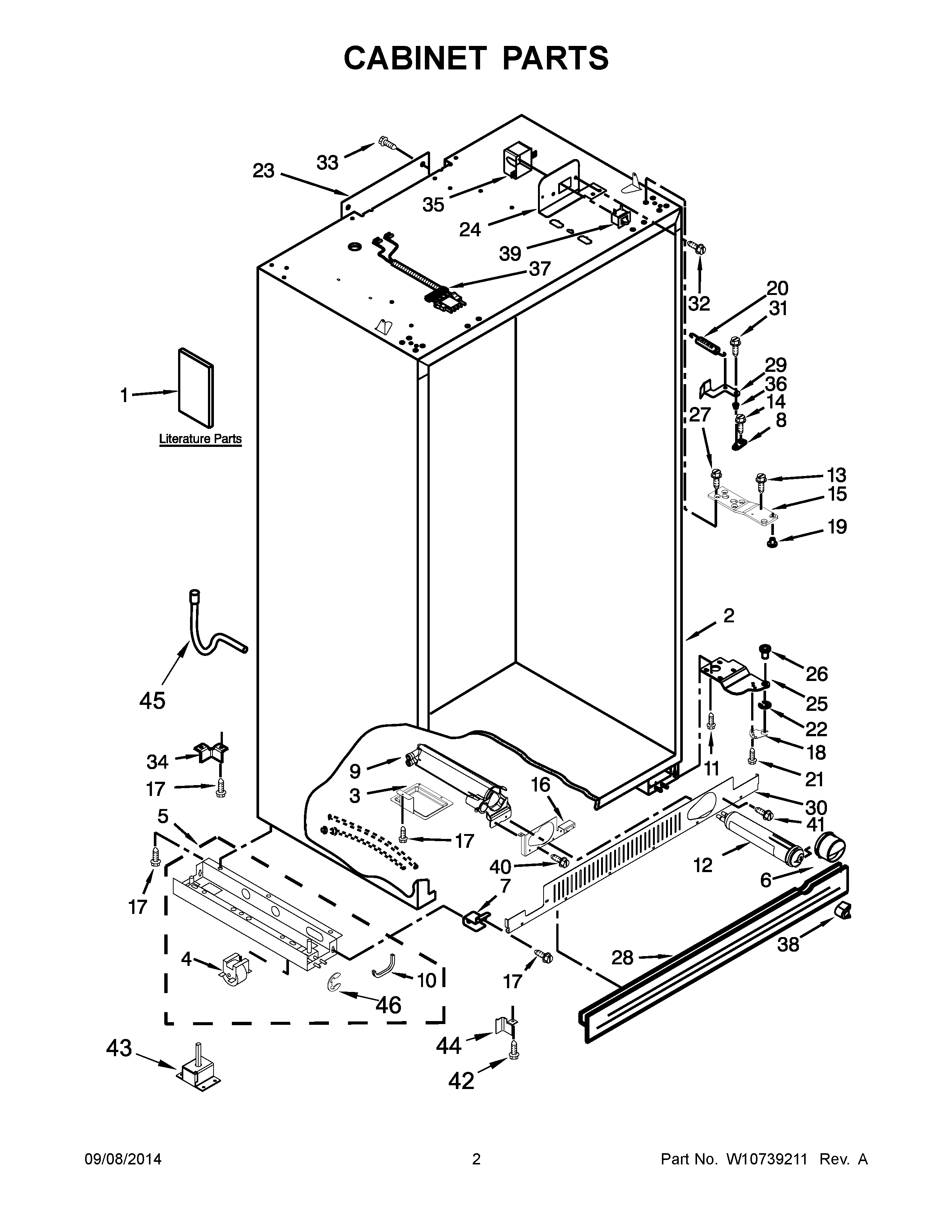

KSSC42FTS18 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1C	MAIN CONTROL SERVICE SHEET
1B	Icemaker and Ingredient Care Center Service Sheet
1	USE AND CARE GUIDE
1D	INSTALLATION INSTRUCTIONS
2	CABINET (NOT A SERVICEABLE PART)
3	2318189 Whirlpool Refrigerator Drip Pan
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5A	W10860229 Whirlpool Refrigerator Support
6	WP2260518B Whirlpool Water Filter Cap
7	W10839844 Whirlpool Refrigerator Bracket
8	WP2320509 Whirlpool Refrigerator Door Cam
9	WPW10121140 Whirlpool Refrigerator Housing
10	2307584 Whirlpool Refrigerator Grommet
11	Screw
12	FILTER 3-SINGLE TEAL
13	WP8281164 Whirlpool Refrigerator Screw
14	WPW10142233 Whirlpool Refrigerator Screw
15	2257644 Whirlpool Refrigerator Door Hinge
16	W10674648 Whirlpool Refrigerator Bracket
17	WP489464 Whirlpool Refrigerator Screw
18	WP2004994 Whirlpool Refrigerator Hinge Bushing
19	W11500952 Whirlpool Refrigerator Hinge Bushing
20	WP2004517 Whirlpool Refrigerator Spring
21	SCREW
22	WP489236 Whirlpool Refrigerator Ring
23	2215612 Whirlpool Refrigerator Duct Cover
24A	2221096 Whirlpool Refrigerator Bracket
24	2221097 Whirlpool Refrigerator Bracket
25A	WP2006780 Whirlpool Refrigerator Door Hinge
25	W10527053 Whirlpool Refrigerator Door Hinge
26	WP2302876 Whirlpool Refrigerator Hinge Bushing
27	W11189635 Whirlpool Refrigerator Screw
28	WPW10188549 Whirlpool Refrigerator Front Grille
29	W10847927 Whirlpool Refrigerator Extension
29A	W11298172 Whirlpool Refrigerator Extension
30	WPW10182717 Whirlpool Refrigerator Front Grille
31	W11177574 Whirlpool Refrigerator Screw
32	WP965173 Whirlpool Dishwasher Screw
33	WP1163283 Whirlpool Air Conditioner Screw
34	2006617 Whirlpool Refrigerator Bracket
35	2215938 Whirlpool Refrigerator Switch Cover
36	WP2316859 Whirlpool Refrigerator Bushing
37	W10167456 Whirlpool Harness Switch
38	WP2260503B Whirlpool Refrigerator Button
39	W11384469 Whirlpool Door Switch
39A	W11457217 Whirlpool Refrigerator Rocker Switch Combination
40	WP8281163 Whirlpool Refrigerator Screw
42	WPW10141604 Whirlpool Screw
43	2005032 Whirlpool Refrigerator Leveler
44A	2006556 Whirlpool Refrigerator Bracket
44	2006616 Whirlpool Refrigerator Bracket
45	2314064 Whirlpool Refrigerator Drain Tube
46	2006841 Whirlpool Ring
