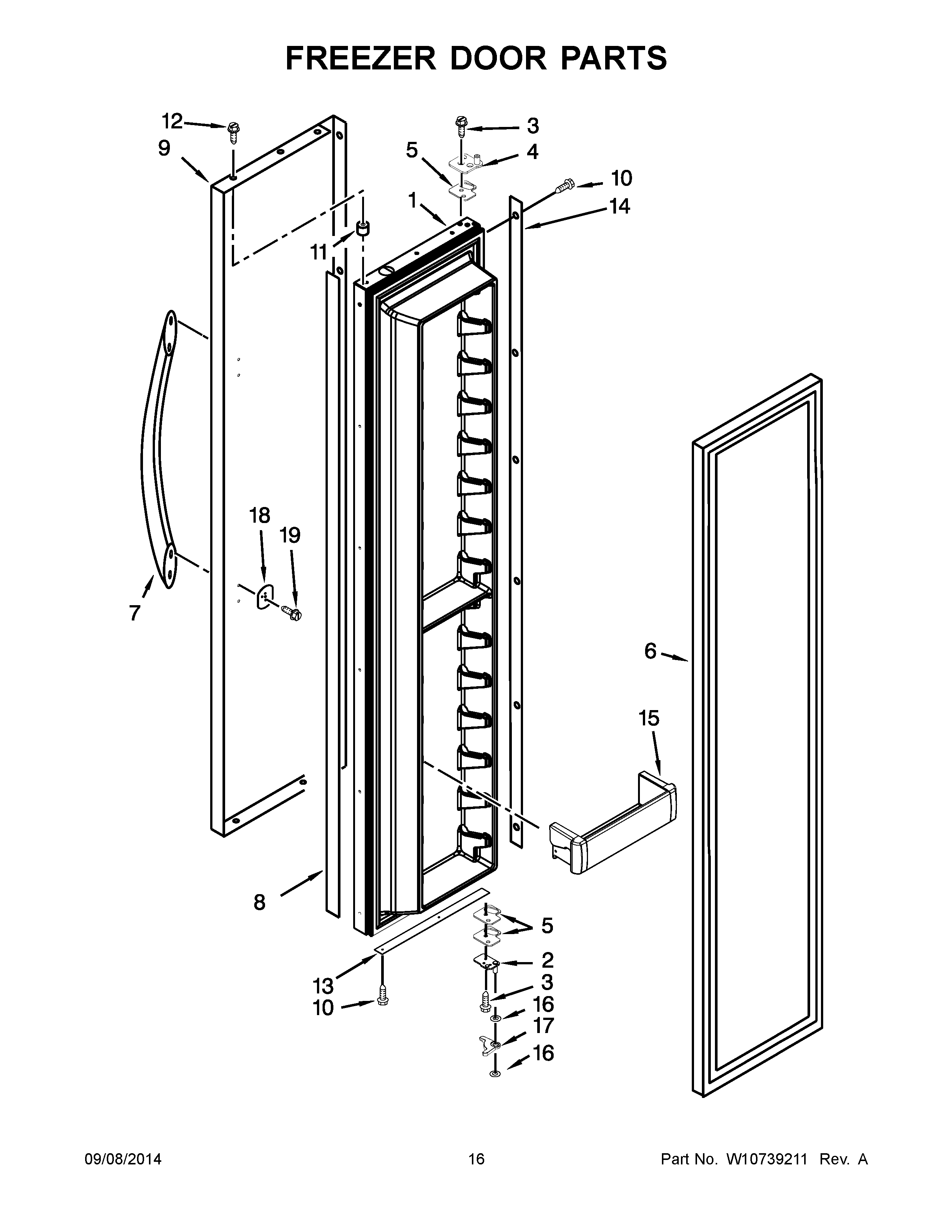

KSSC42FTS18 09 – FREEZER DOOR PARTS

KSSC42FTS18 09 – FREEZER DOOR PARTS

Written by

in

KSSC42FTS18 09 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193486 Whirlpool Refrigerator FIP Stainless Steel Door
2HINGE-DOOR
3W11474472 Whirlpool Screw
5W11673500 Whirlpool Door Hinge
6WP2266905 Whirlpool Refrigerator Door Gasket
7WP2316868 Whirlpool Refrigerator Handle
8Spacer, Door (Handle Side)
9SKIN, DOOR (STAINLESS)
10WP8281250 Whirlpool Refrigerator Screw
112005433 Whirlpool Refrigerator Spacer
12W10759522 Whirlpool Screw
13Spacer, Door Bottom
14SPACER, DOOR-SKIN (HINGE SIDE)
15W10323602 Whirlpool Refrigerator Cantilever Bin
16WP2006346 Whirlpool Refrigerator Washer
17W11700297 Whirlpool Refrigerator Gap Hinge
18W10127710 Whirlpool Refrigerator Plate
19WP308544 Whirlpool Screw
