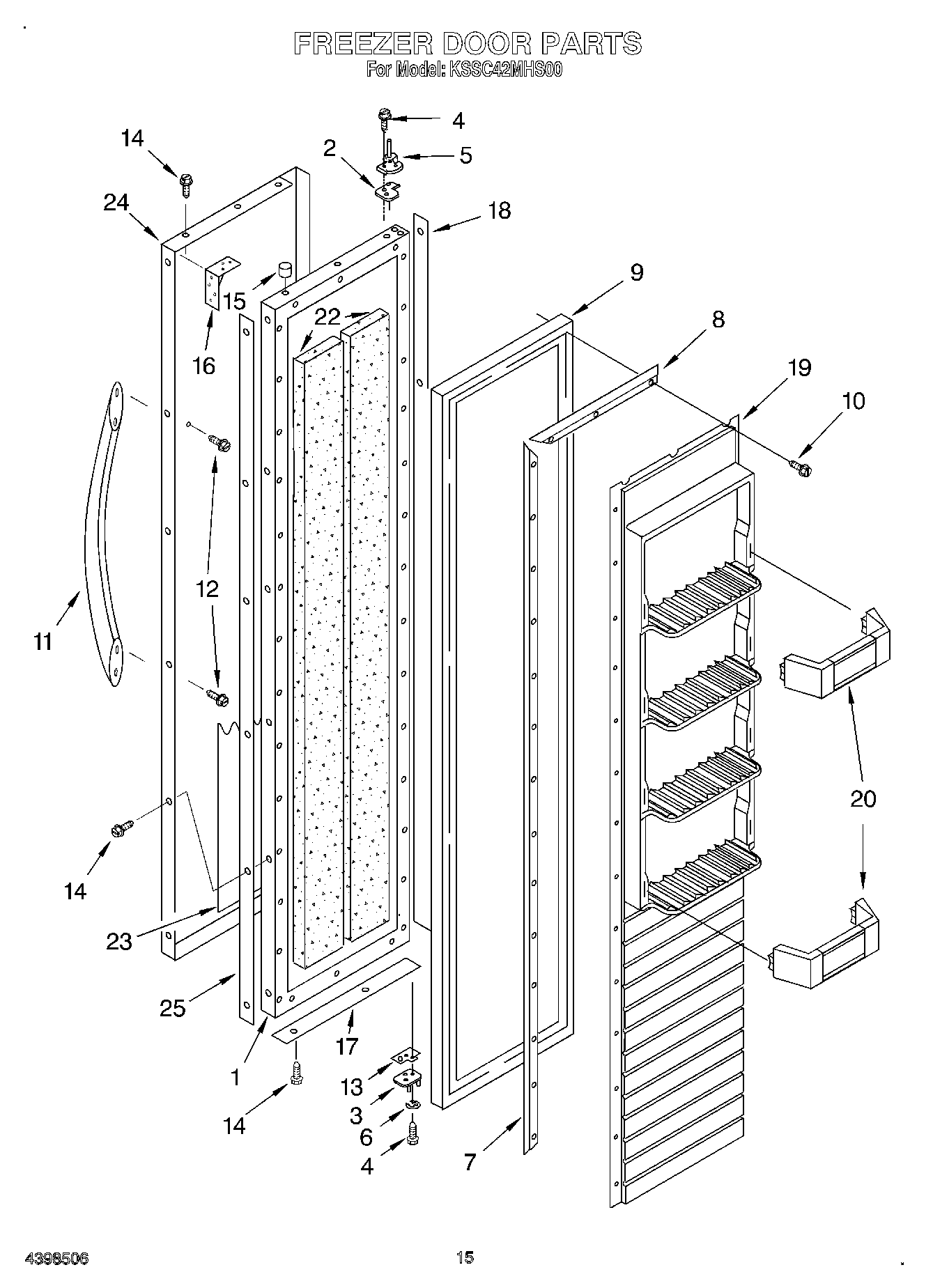

KSSC42MHS00 11 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Spacer-Hinge, Top
3	Hinge, Bottom
4	W11474472 Whirlpool Screw
5	Hinge, Top
6	Retaining Ring, Door-Closure
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	2188318A Whirlpool Refrigerator Door Gasket
10	W11624204 Whirlpool Screw
11	Handle, Door (Stainless Steel)
12	WP308544 Whirlpool Screw
13	Door, Spacer
14	WP488729 Whirlpool Refrigerator Door Screw
15	2005433 Whirlpool Refrigerator Spacer
16	Door Brace, Corner
17	Spacer, Door Bottom
18	Spacer, Hinge Side
19	Panel, Interior Door
20	WP2003128 Whirlpool Shelf Bin
22	Seal
23	Filler, Door
24	Door Skin
25	Spacer, Handle Side
