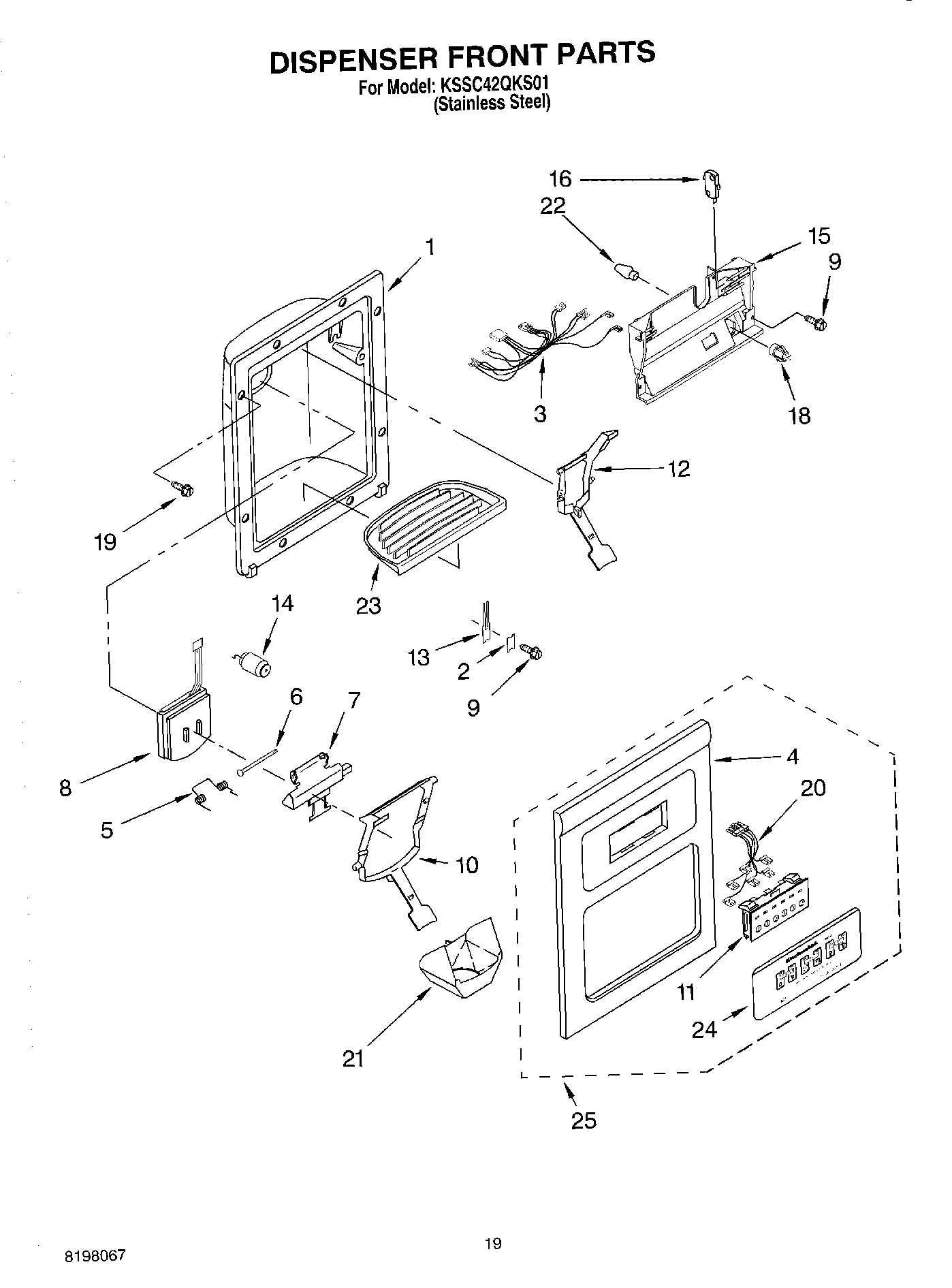

KSSC42QKS01 12 – DISPENSER FRONT

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2WP2195051 Whirlpool Refrigerator Clip
3Wire Harness
4Cover, Dispenser (Not Serviced)
5WPW10224328 Whirlpool Refrigerator Spring
6WP2196195 Whirlpool Refrigerator Door Pin
7Door Mechanism Assembly
8WP2180353 Whirlpool Dispenser Door
9WP3400906 Whirlpool Refrigerator Screw
10Lever, Ice Dispenser (Black (Storm Grey Pad))
11WP2180236 Whirlpool Refrigerator Switch
12WPW10152858 Whirlpool Refrigerator Dispenser Arm
13WP2194719 Whirlpool Refrigerator Clip
14Delay Mechanism
15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16WP2162361 Whirlpool Switch
182180200 Whirlpool Refrigerator Socket
19WP489128 Whirlpool Refrigerator Screw
202311650 Whirlpool Refrigerator Wire Harness
21WP2180224 Whirlpool Dispenser Funnel Guide
22WP22002263 Whirlpool Dryer 10W Light Bulb
23WP2180325 Whirlpool Dispenser Grille
24Overlay, Cover (Not Serviced)
25Front Cover Assembly (Includes Items 4, 11, 20 & 24)
