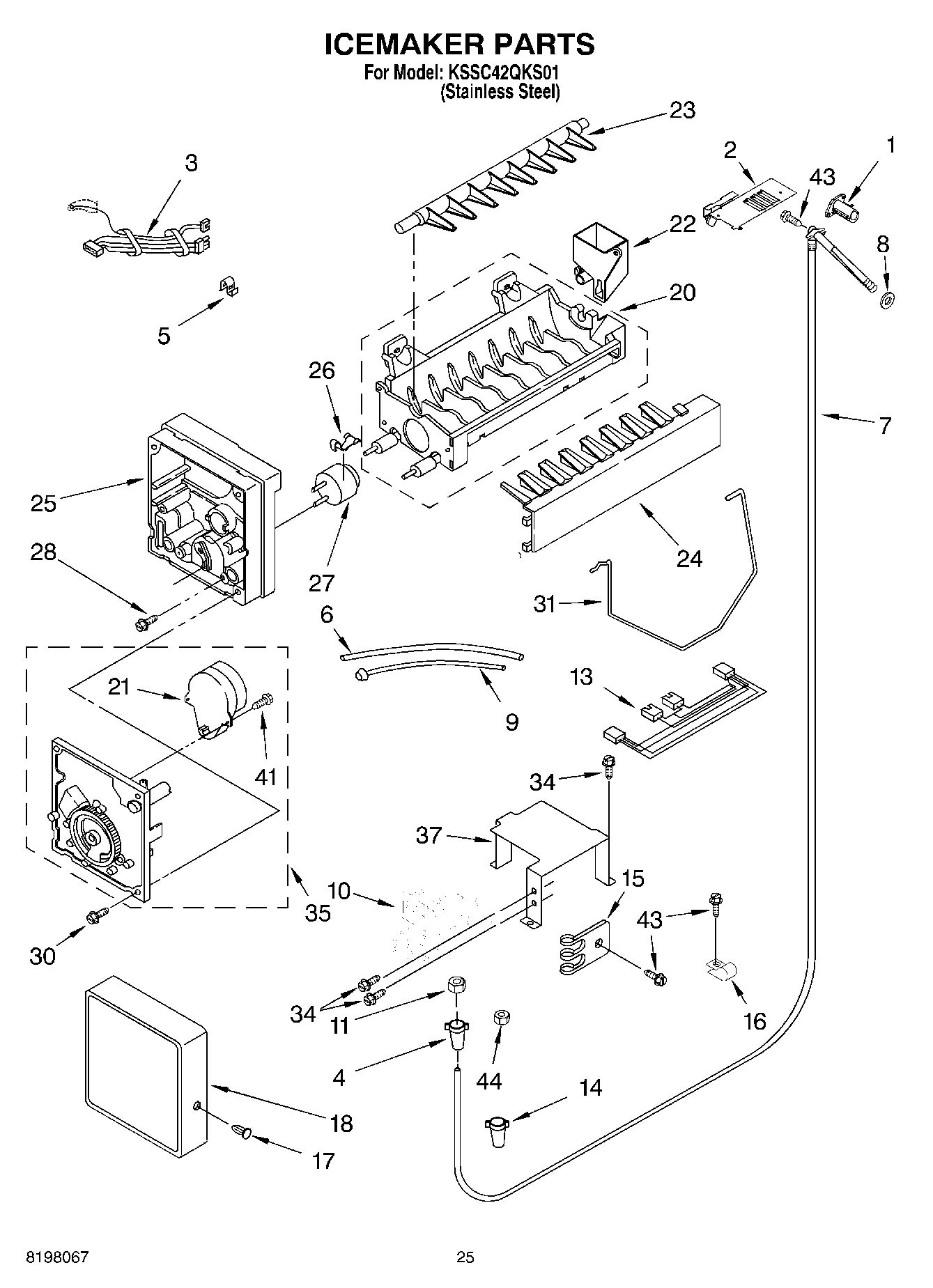

KSSC42QKS01 15 – ICEMAKER

Products

Position	Product
1	WP2221240 Whirlpool Refrigerator Heater
2	WP2221231 Whirlpool Refrigerator Shield
3	Wire Harness, Icemaker
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Filter Inlet
7	Water Inlet Tube Assembly
8	WP1106508 Whirlpool Refrigerator Gasket
9	Tube, Filter Outlet
10	WP2188786 Whirlpool Refrigerator Inlet Valve
11	Compression Nut (Inlet)
13	Water Valve, Harness
14	Insert, Tube
15	WP488366 Whirlpool Refrigerator Clamp
16	Clamp, Tube
17	WP489115 Whirlpool Refrigerator Rivet
18	Cover
20	WP542638 Whirlpool Refrigerator Grease
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	CEMENT, ALUMILASTIC (1 1/4 OZ.)
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
34	WP489464 Whirlpool Refrigerator Screw
37	Water Valve Mounting Bracket
41	489136 Whirlpool Refrigerator Screw
43	W11624204 Whirlpool Screw
44	Nut, Compression
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
