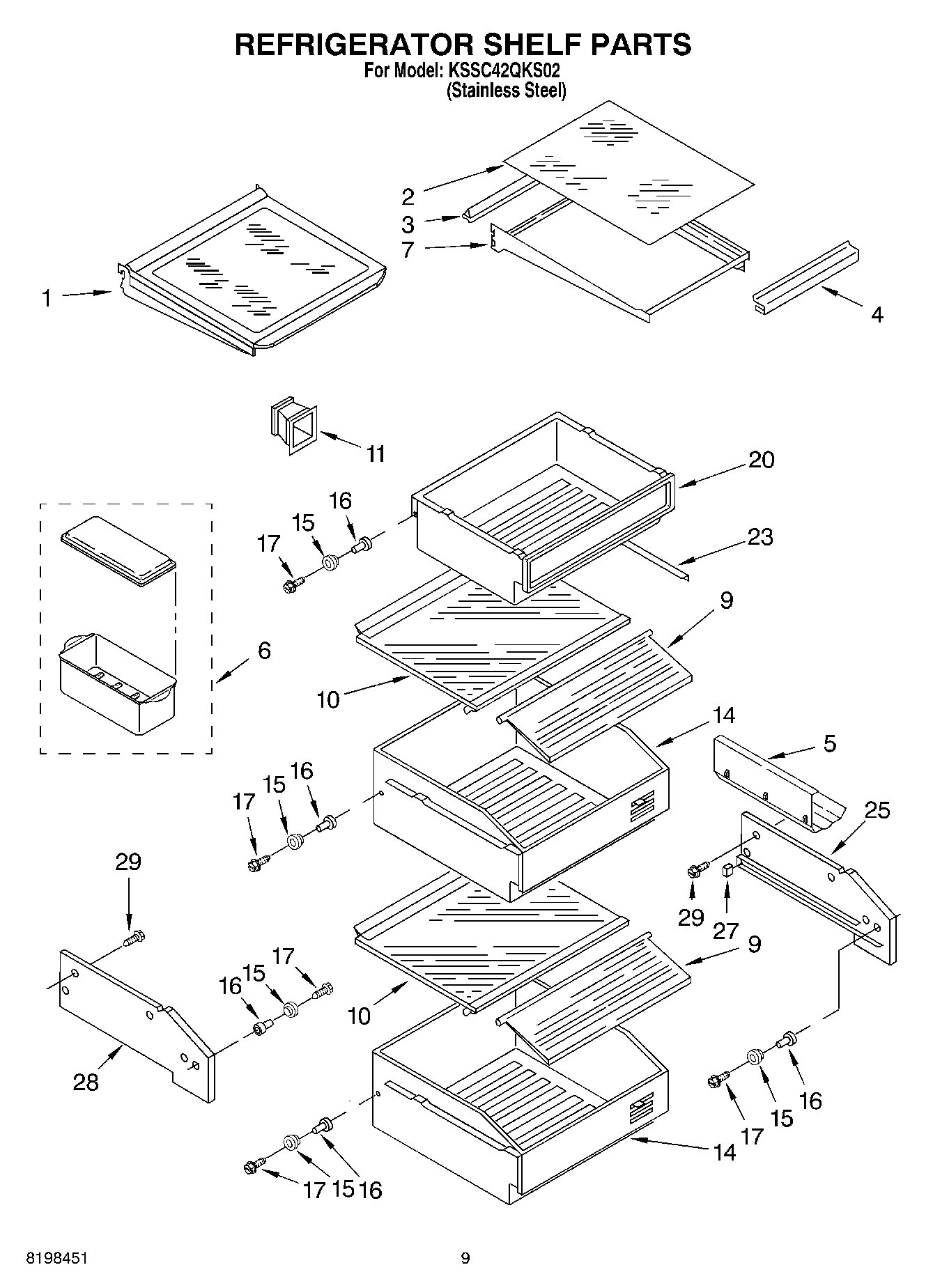

KSSC42QKS02 07 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Glass, Shelf
3	Reflector, Shelf
4	Gasket, Glass (2)
5	W10777924 Whirlpool Refrigerator Wine Rack
6	Egg Bin Assembly
7	Frame, Assembly Meat Pan
9	WP1113894 Whirlpool Refrigerator Cover
10	Glass, Crisper (Includes No.9)
11	Meat Pan, Connector
14	Crisper Pan (2)
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
20	Meat Pan
23	Retainer, Glass
25	Crisper Spacer, Right Side (2)
27	Roller Stop
28	Crisper Spacer, Left Side (2)
29	W11624204 Whirlpool Screw
