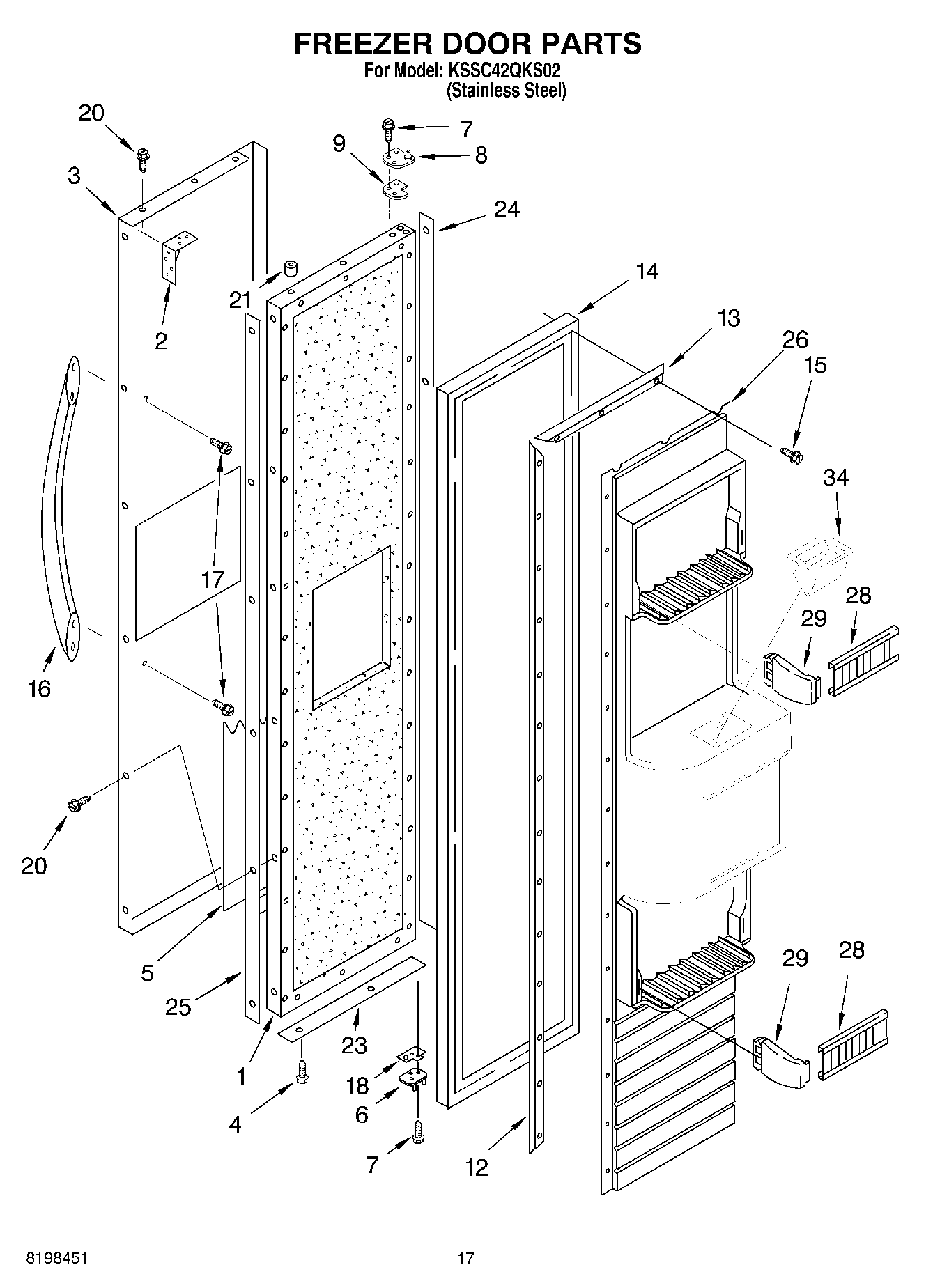

KSSC42QKS02 11 – FREEZER DOOR PARTSadmin2025-04-26T12:09:01+00:00KSSC42QKS02 11 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Includes Insulation) |
| 2 | BRACE, DOOR CORNER |
| 3 | Door Skin |
| 4 | Screw |
| 5 | Filler, Door |
| 6 | HINGE-DOOR |
| 7 | W11474472 Whirlpool Screw |
| 8 | W11724512 Whirlpool Door Hinge |
| 9 | Spacer-Hinge, Top |
| 12 | Gasket Retainer, Side (2) |
| 13 | Gasket Retainer, Top & Bottom |
| 14 | 2188496A Whirlpool Refrigerator Door Gasket |
| 15 | W11624204 Whirlpool Screw |
| 16 | Handle, Door (Stainless Steel) |
| 17 | WP308544 Whirlpool Screw |
| 18 | 2257385 Whirlpool Refrigerator Spacer |
| 20 | WP8281250 Whirlpool Refrigerator Screw |
| 21 | 2005433 Whirlpool Refrigerator Spacer |
| 23 | Door Spacer, Bottom |
| 24 | Spacer, Hinge Side |
| 25 | Spacer, Handle Side |
| 26 | Panel, Interior Door |
| 28 | Shelf Bin |
| 29 | Trim, End Cap (Right Side) |
| 29 | Trim, Endcap (Left Side) |
| 34 | Ice Chute |
