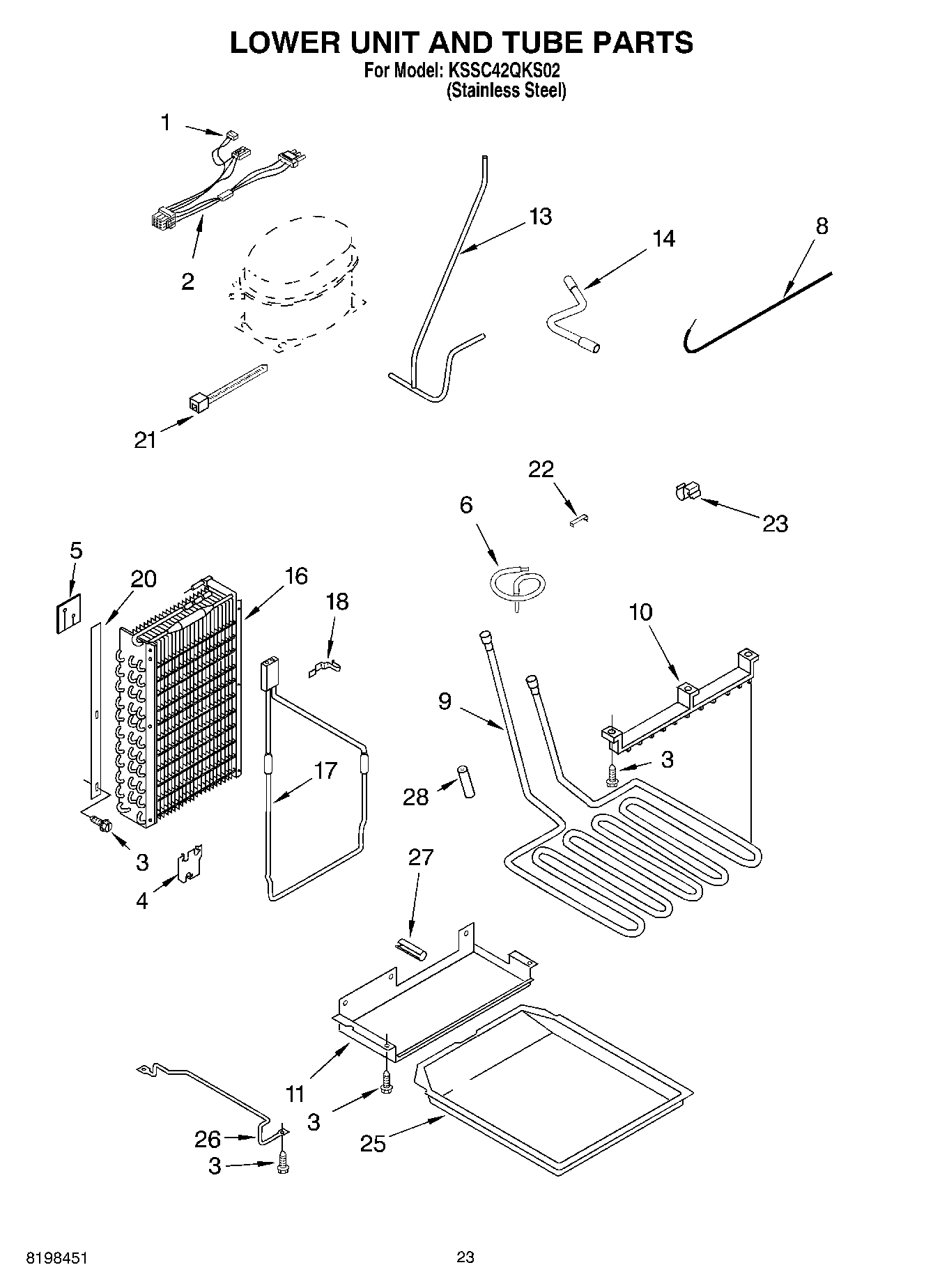

KSSC42QKS02 14 – LOWER UNIT AND TUBE PARTS

KSSC42QKS02 14 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSC42QKS02 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1WPW10225581 Whirlpool Refrigerator Defrost Thermostat
2Wire Harness
3W11624204 Whirlpool Screw
4Bracket
5Side Support
6Suction Tube
8Tube, Connect (Drier)
9Heater, Drain Pan
10Hanger, Heater
11Shield, Drain Pan
13Tube, Discharge
14Tube, Transition
16WP2306093 Whirlpool Evaporator
17WP2006750 Whirlpool Refrigerator Heater
181113048 Whirlpool Refrigerator Clamp
20Gasket, Evaporator
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
23Clip, Tube (3)
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Right)
26Bracket, Drain Pan (Left)
27WP2158826 Whirlpool Refrigerator Dampener
282215648 Whirlpool Refrigerator Dampener
