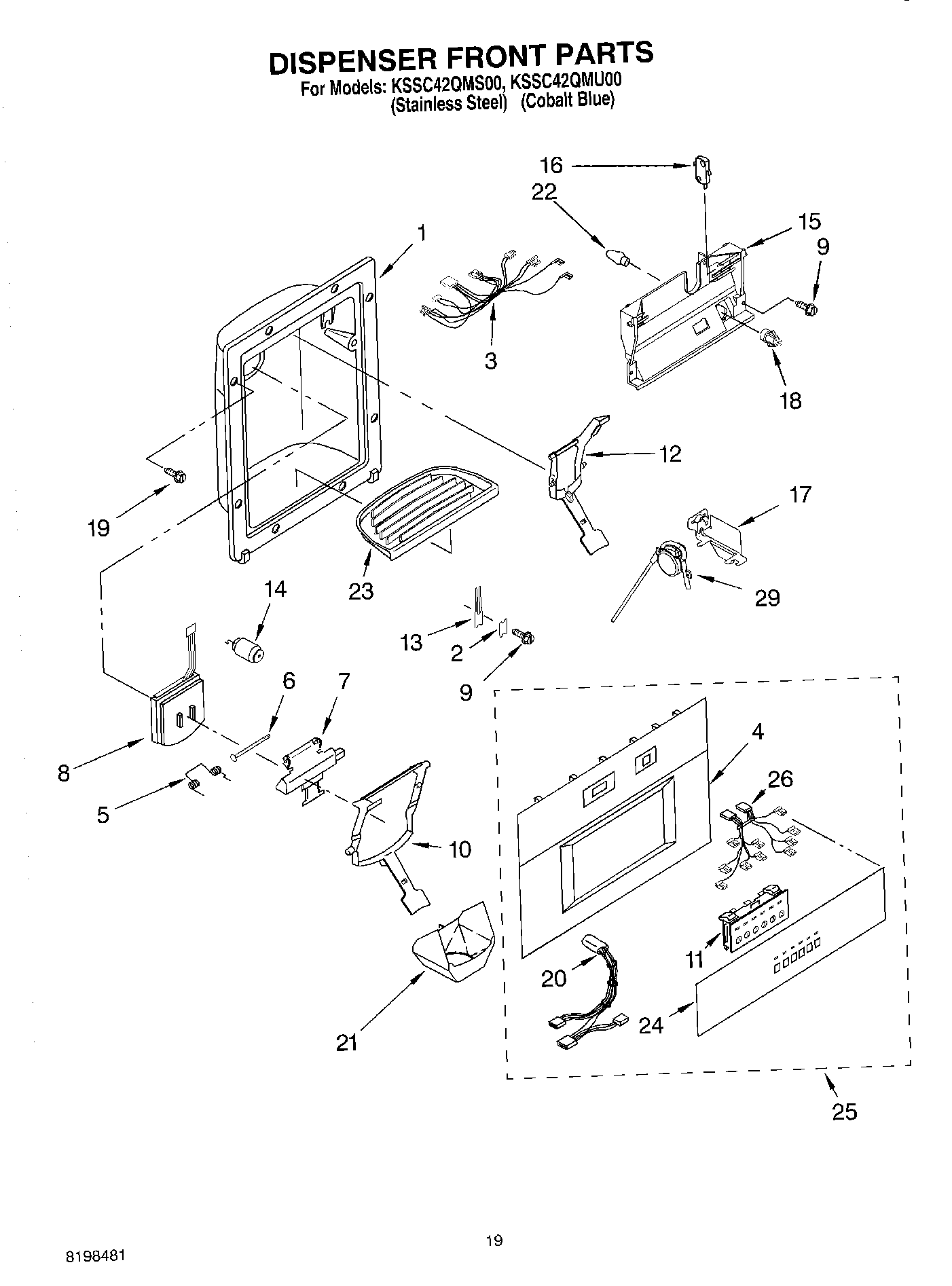

KSSC42QMS00 12 – DISPENSER AND FRONT PARTS

Products

Position	Product
1	Housing, Dispenser (Not Serviced)
2	WP2195051 Whirlpool Refrigerator Clip
3	Wire Assembly
4	Cover, Dispenser (Not Available- Order Item 25)
5	WPW10224328 Whirlpool Refrigerator Spring
6	WP2196195 Whirlpool Refrigerator Door Pin
7	Door Mechanism Assembly
8	WP2180353 Whirlpool Dispenser Door
9	WP3400906 Whirlpool Refrigerator Screw
10	Lever, Ice Dispenser (Cobalt Blue)
10	Lever, Ice Dispenser (Black)
11	Switch Assembly (Not Available Order Item 25)
12	Lever, Water Dispenser (Cobalt Blue)
12	W10856124 Whirlpool Refrigerator Dispenser Arm
13	WP2194719 Whirlpool Refrigerator Clip
14	Delay Mechanism
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP2162361 Whirlpool Switch
17	2259209 Whirlpool Refrigerator Bracket
18	2180200 Whirlpool Refrigerator Socket
19	Screw
20	Wire Assembly
21	WP2180224 Whirlpool Dispenser Funnel Guide
22	WP22002263 Whirlpool Dryer 10W Light Bulb
23	WP2206670B Whirlpool Dispenser Tray
23	Grille, Overflow (Cobalt Blue)
24	Overlay, Cover (Not Available- Order Item 25)
25	Front Cover Assembly (Includes Items 4, 11, 20 & 24) (Black)
25	Front Cover Assembly (Includes Items 4, 11, 20 & 24) (Cobalt Blue)
26	Harness, Switch Jumper Assembly
29	8201537 Whirlpool Water Tubing Assembly
