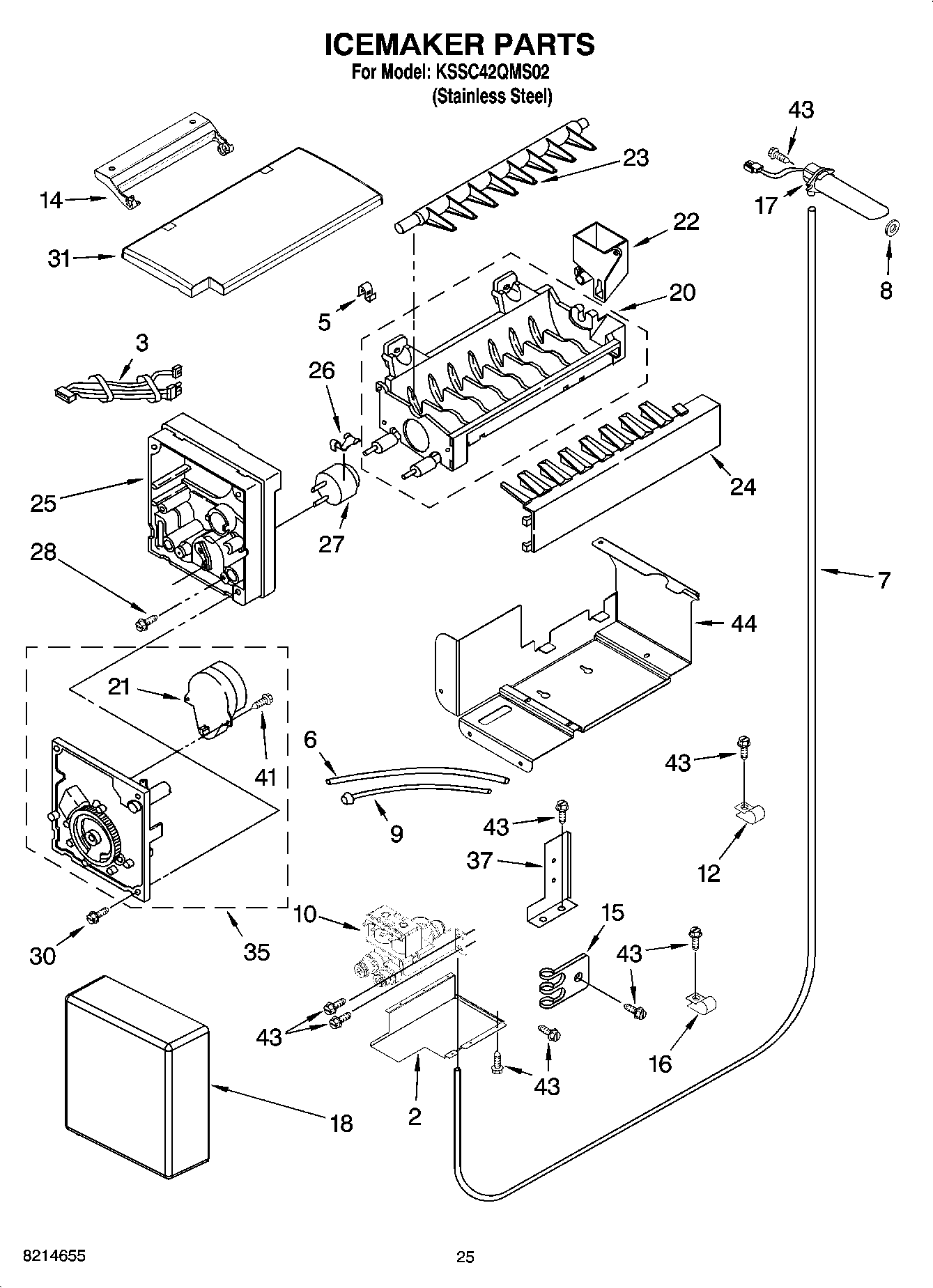

KSSC42QMS02 15 – ICEMAKER PARTSadmin2025-04-26T12:33:10+00:00KSSC42QMS02 15 – ICEMAKER PARTS ProductsPositionProduct2Cover, Bottom3Wire Assembly, Icemaker5WP628379 Whirlpool Refrigerator Clip6Tube, Filter Inlet7Water Inlet Tube Assembly8Seal Gasket9W11533506 Whirlpool Refrigerator Water Tube10WP2188786 Whirlpool Refrigerator Inlet Valve12W10833902 Whirlpool Refrigerator Clamp14WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket15WP488366 Whirlpool Refrigerator Clamp16Clamp, Tube17W10460127 Whirlpool Refrigerator Inlet Tube18Cover20WPW10190929 Whirlpool Refrigerator Ice Maker Mold21Motor, (Not Serviceable Order Item 32)22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24W10297244 Whirlpool Refrigerator Arm Strip25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31WPW10504753 Whirlpool Refrigerator Ice Door35W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly37Water Valve Mounting Bracket41489136 Whirlpool Refrigerator Screw43W11624204 Whirlpool Screw442252228 Whirlpool Refrigerator Bracket100WPW10277448 Whirlpool Icemaker Assembly100Ice Container Assembly Black Acrylic Static Cleaner Part No. 978849100Cleaner, Stainless Steel100FOLLOWING PARTS NOT ILLUSTRATED100(Optional Parts Only)
