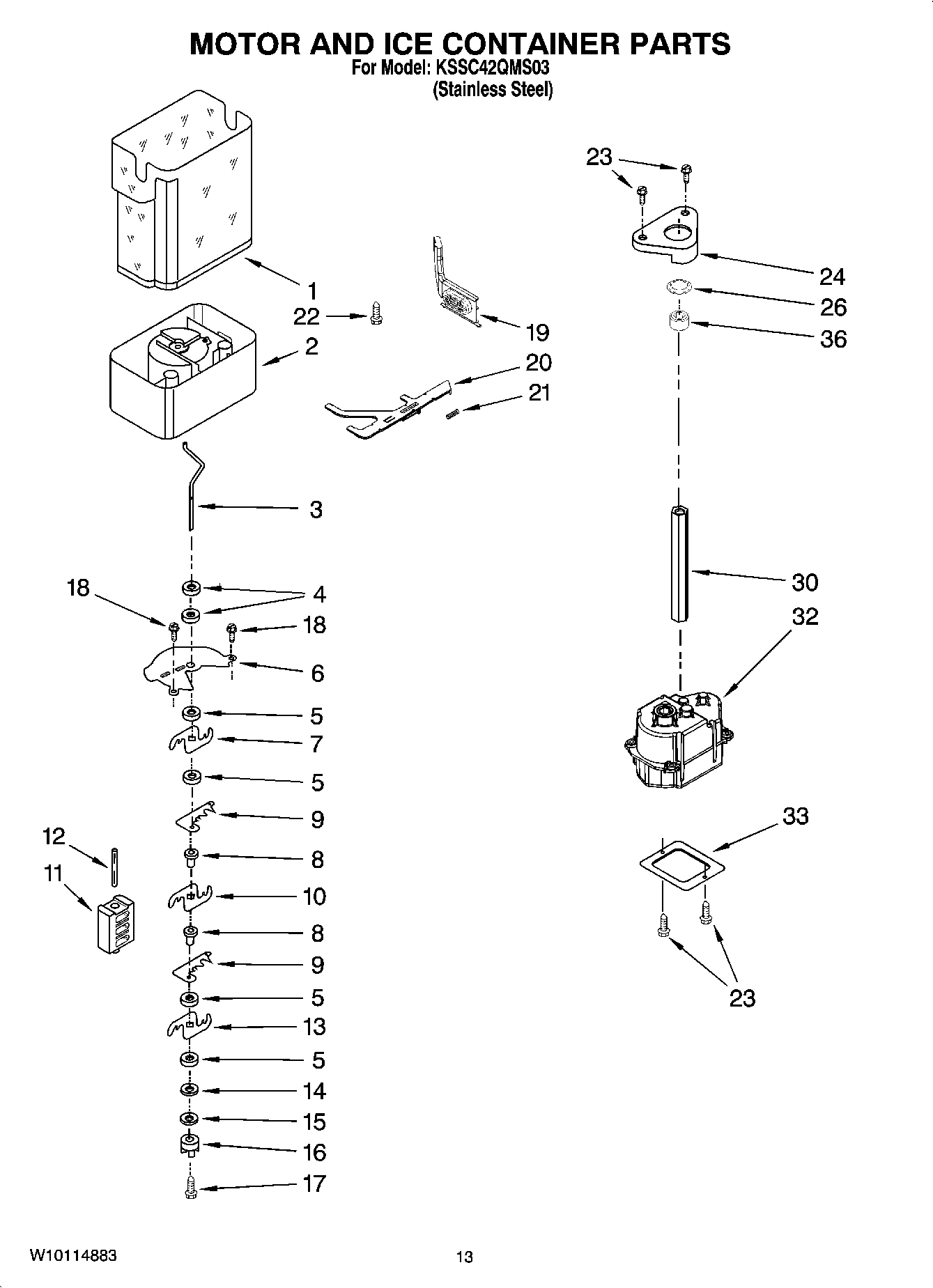

KSSC42QMS03 09 – MOTOR AND ICE CONTAINER PARTS

KSSC42QMS03 09 – MOTOR AND ICE CONTAINER PARTS

Written by

in

KSSC42QMS03 09 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1WP2222965 Whirlpool Refrigerator Ice Bin
2BIN, CRUSHER
3W10852517 Whirlpool Refrigerator Ice Auger
4Washer
5WP1119007 Whirlpool Refrigerator Spacer
6Cover, Crusher
7W10278733 Whirlpool Refrigerator Blade
8WP1119005 Whirlpool Refrigerator Spacer
9Blade, Fixed
10W10278732 Whirlpool Refrigerator Blade
11Block, Blade
12489229 Whirlpool Refrigerator Roll Pin
13W10278731 Whirlpool Refrigerator Blade
14WP489235 Whirlpool Refrigerator Washer
15WP2198661 Whirlpool Refrigerator Washer
16W11629923 Whirlpool Coupling
17WP8281164 Whirlpool Refrigerator Screw
18WP3400065 Whirlpool Refrigerator Screw
19WP2252265 Whirlpool Refrigerator Ice Bin Button
20Latch, Bin
21WP2198608 Whirlpool Refrigerator Spring
222198671 Whirlpool Refrigerator Screw
23WP8281163 Whirlpool Refrigerator Screw
24WP2188919 Whirlpool Refrigerator Holder
26WP2198628 Whirlpool Door Seal
30WP2188917 Whirlpool Drive Shaft
32W10822635 Whirlpool Refrigerator Ice Maker Dispenser Auger Drive Motor
33COVER
36WP2315559 Whirlpool Motor Coupling
