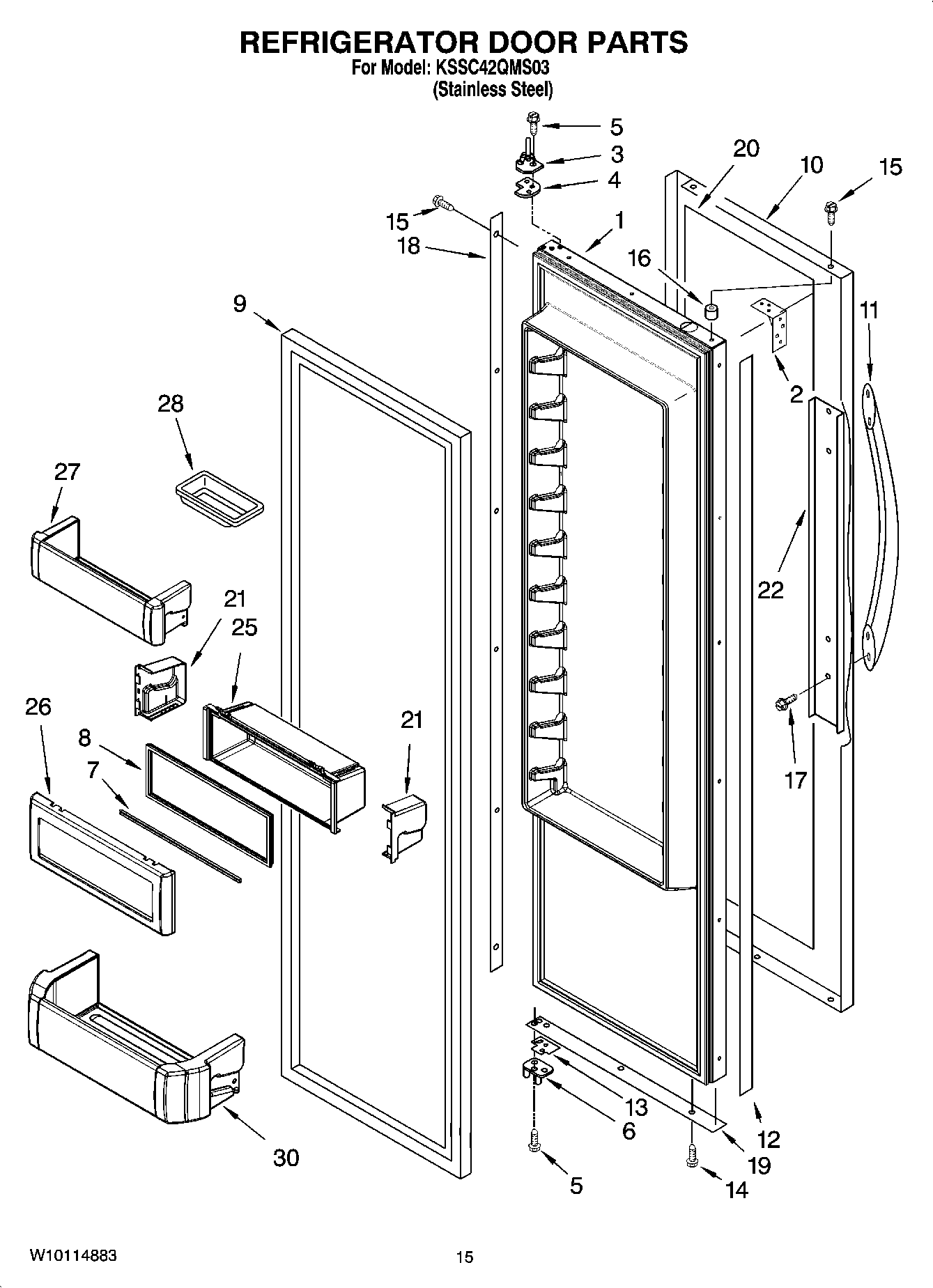

KSSC42QMS03 10 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:31:24+00:00KSSC42QMS03 10 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Item 9) |
| 2 | BRACE, DOOR CORNER |
| 3 | W11724512 Whirlpool Door Hinge |
| 4 | Spacer-Hinge, Top |
| 5 | W11474472 Whirlpool Screw |
| 6 | 2302878 Whirlpool Refrigerator Door Hinge |
| 7 | W11448696 Whirlpool Refrigerator Bin |
| 8 | Gasket, Utility Bin |
| 9 | WP2266902 Whirlpool Refrigerator Door Gasket |
| 10 | Door Skin (Stainless Steel) |
| 11 | Handle, Door (Stainless Steel) |
| 12 | Spacer, Door (Handle Side) |
| 13 | Door Spacer, Bottom |
| 14 | W10759522 Whirlpool Screw |
| 15 | WP8281250 Whirlpool Refrigerator Screw |
| 16 | 2005433 Whirlpool Refrigerator Spacer |
| 17 | WP308544 Whirlpool Screw |
| 18 | Spacer, Hinge Side |
| 19 | Spacer, Door Bottom |
| 20 | Filler, Door |
| 21 | WPW10323173 Whirlpool Refrigerator Retainer End Cap |
| 21 | WPW10323172 Whirlpool Refrigerator Retainer End Cap |
| 22 | Plate, Handle |
| 25 | W10323042 Whirlpool Cantilever Bin |
| 26 | W11553221 Whirlpool Refrigerator Door Compressor |
| 27 | W10323599 Whirlpool Refrigerator Cantilever Bin |
| 28 | Butter Tray |
| 30 | W10323747 Whirlpool Refrigerator Cantilever Bin |
