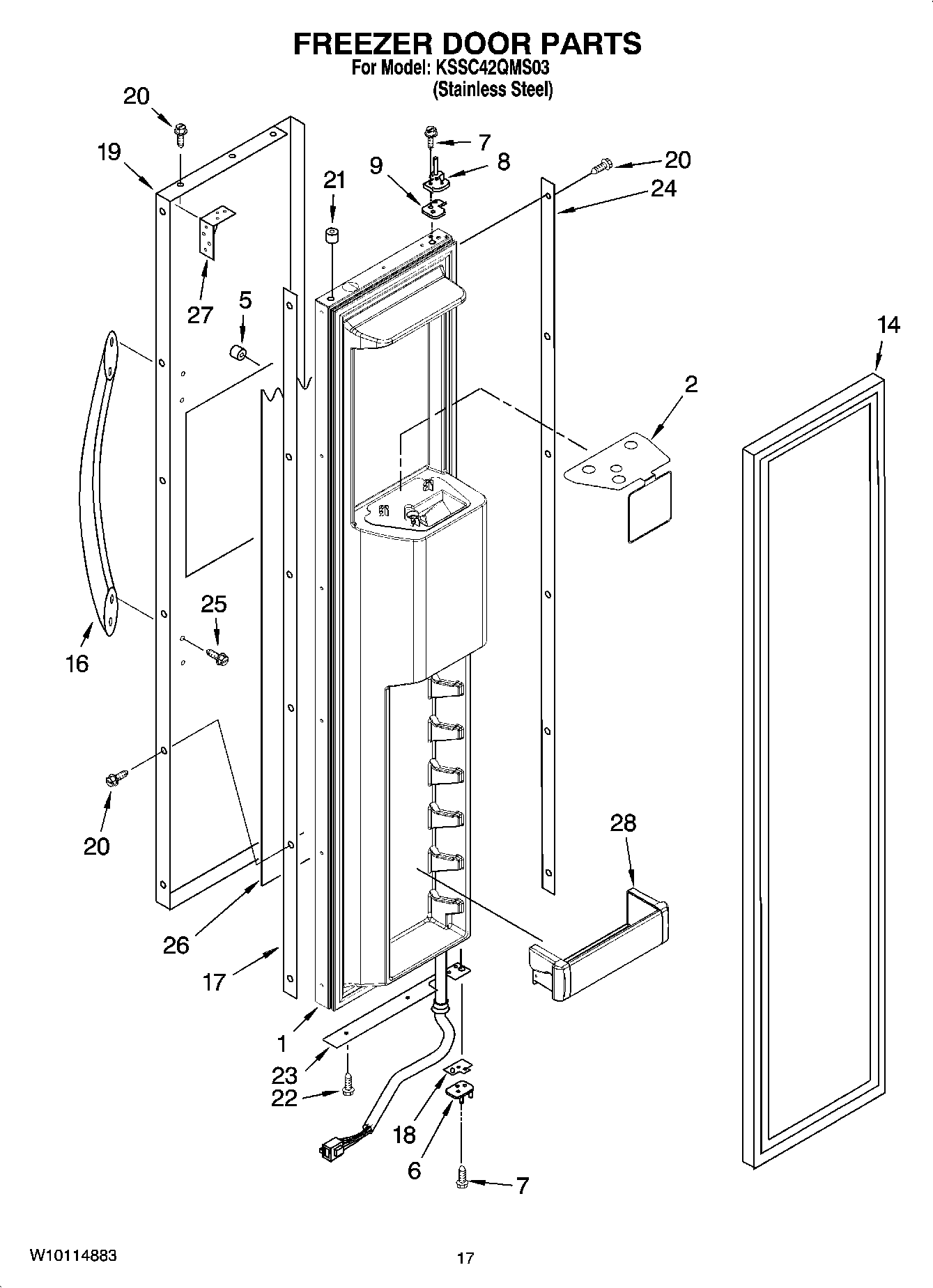

KSSC42QMS03 11 – FREEZER DOOR PARTS

KSSC42QMS03 11 – FREEZER DOOR PARTS

Written by

in

KSSC42QMS03 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Insulation) (Black)
2Safety Barrier
52252354 Whirlpool Spacer Assembly
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
14WP2266905 Whirlpool Refrigerator Door Gasket
16Handle, Door (Stainless Steel)
17Spacer, Door (Handle Side)
18Door Spacer, Bottom
19Skin, Door (Stainless Steel)
20WP8281250 Whirlpool Refrigerator Screw
212005433 Whirlpool Refrigerator Spacer
22W10759522 Whirlpool Screw
232257385 Whirlpool Refrigerator Spacer
24Spacer, Hinge Side
25WP308544 Whirlpool Screw
26Filler, Door
27BRACE, DOOR CORNER
28W10323602 Whirlpool Refrigerator Cantilever Bin
