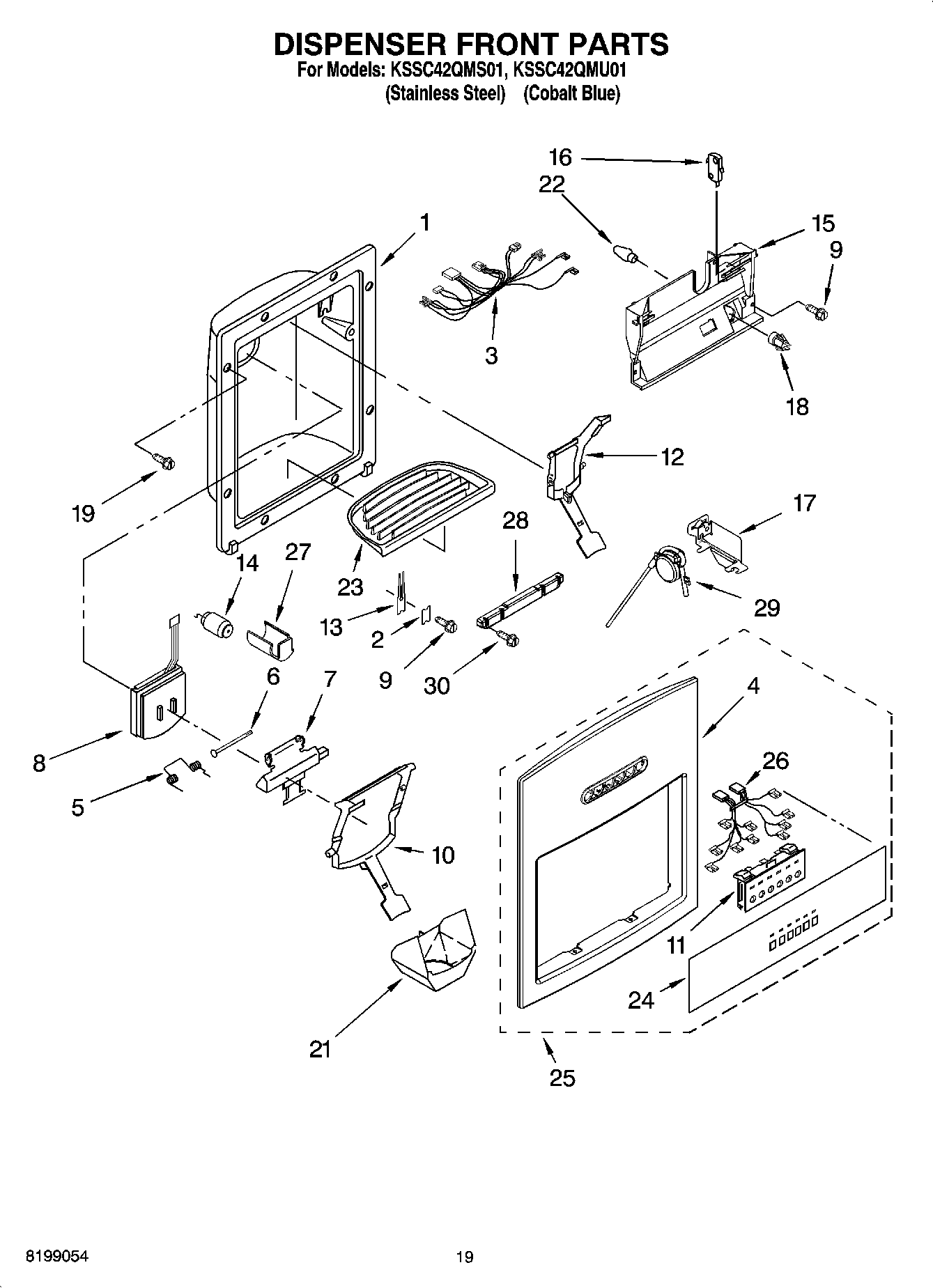

KSSC42QMU01 12 – DISPENSER AND FRONT PARTS

KSSC42QMU01 12 – DISPENSER AND FRONT PARTS

Written by

in

KSSC42QMU01 12 – DISPENSER AND FRONT PARTS

Products

PositionProduct
1Housing, Dispenser (Not Serviced)
2WP2195051 Whirlpool Refrigerator Clip
3Wire Assembly
4Cover, Dispenser (Not Available- Order Item 25)
5WPW10224328 Whirlpool Refrigerator Spring
6WP2196195 Whirlpool Refrigerator Door Pin
7Door Mechanism Assembly
8WP2180353 Whirlpool Dispenser Door
9WP3400906 Whirlpool Refrigerator Screw
10Lever, Ice Dispenser (Cobalt Blue)
10Lever, Ice Dispenser (Black)
11Switch Assembly (Not Available Order Item 25)
12Lever, Water Dispenser (Cobalt Blue)
12W10856124 Whirlpool Refrigerator Dispenser Arm
13WP2194719 Whirlpool Refrigerator Clip
14Delay Mechanism
15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16WP2162361 Whirlpool Switch
172259209 Whirlpool Refrigerator Bracket
182180200 Whirlpool Refrigerator Socket
19Screw
21WP2180224 Whirlpool Dispenser Funnel Guide
22WP22002263 Whirlpool Dryer 10W Light Bulb
23WP2302944B Whirlpool Drip Tray Grille
23Grille, Overflow (Cobalt Blue)
24Overlay, Cover (Not Available- Order Item 25)
25Front Cover Assembly (Includes Items 4, 11, & 24) (Black)
25Front Cover Assembly (Includes Items 4, 11, & 24) (Cobalt Blue)
26Harness, Switch Jumper Assembly
27Sleeve, Delay Mechanism
28Spacer, Dispenser
298201537 Whirlpool Water Tubing Assembly
30WP8281163 Whirlpool Refrigerator Screw
